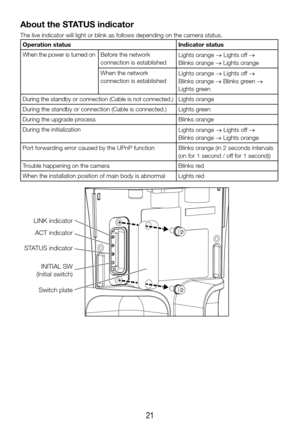

About the STATUS indicator
The live indicator will light or blink as follows depending on the camer\
a status.
Operation statusIndicator status
When the power is turned on Before the network
connection is establishedLights orange → Lights off →
Blinks orange → Lights orange
When the network
connection is established Lights orange → Lights off →
Blinks orange → Blinks green →
Lights green
During the standby or connection (Cable is not connected.) Lights orange
During the standby or connection...

22
• Basic
Power source *1:AC100~240 V 50 Hz/60 Hz or the tested PoE injector (60 W)
Power consumption *1: AC100~240 V 50 Hz/60 Hz:
1.4 A/Approx. 61 W
Tested PoE injector (60 W) DC 54 V:  1 A/Approx. 51 W
When the extension unit
(IR LED unit) is attached: AC100~240 V 50 Hz/60 Hz:
1.6 A/Approx. 71 W
Tested PoE injector (60 W) DC 54 V: 1 A/Approx. 51 W
Operating environment
Ambient operating temperature:
Ambient operating humidity: AC100~240V:
–50	°C	to	+60	°C	{–58	°F	to	140	°F}
(Power	On	range:	–30...

23
Finish:Main body: High-strength resinWV-SUD638  : Natural Silver
WV-SUD638-H  : Gray (N7)
WV-SUD638-T  : Brown (Environmental color)
Front glass: Glass clear
Others: Heavy salt damage resistance specifications (ISO14993 compliant)
Tamper-resistant side cover*
4
*1  Refer to our website (http://security.panasonic.com/support/info/) for further information about
Power source and Power consumption.
*2   The EXT I/O terminal, relay connection terminal, line input terminal and audio output terminal \...

24
Shutter speed:2 mega pixel [16:9] (60 fps mode)
Off (1/60), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
Other than 2 mega pixel [16:9] (60 fps mode)
Off (1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250,
1/500, 1/1000, 1/2000, 1/4000, 1/10000
Maximum shutter:
max. 1/1000 s, max. 1/500 s, max. 1/250 s, max. 1/120 s,
max. 2/120 s, max. 1/100 s, max. 2/100 s, max. 1/60 s, max. 1/30 s,
max. 2/30 s, max. 4/30 s, max. 6/30 s, max. 10/30 s, max. 16/30 s
Day/Night: Off/ On/ Auto1...

25
• Rotating section
Panning range:360° Endless panning
Panning speed: Manual: Approx. 0.065 °/s – 100 °/s,
Preset:    Up to approx. 200 °/s (Excludes the case when the optional
IR LED unit is attached, during fore position, when frozen, and
during strong wind)
Tilting range *
1: Upright position:  –45° – 0° (horizontal) – +90° (overhead)
Fore position:  –90° – 0° (horizontal) – +90° (overhead)
Hanging position:  –90° (underneath) – 0° (horizontal) – +30°
Tilting speed: Manual: Approx. 0.065 °/s –...

26
Image compression method:H.264*1Transmission priority:
Constant bit rate/ Variable bit rate/ Frame rate/ Best effort/ Advanced VBR
Frame rate:

1 fps/ 3 fps/ 5 fps*/ 7.5 fps*/ 10 fps*/ 12 fps*/ 15 fps*/ 20 fps*/
30 fps*/ 60 fps*
*  The frame rate is limited to “bit rate”. When a value with an aste\
r -
isk (*) is selected, the actual frame rate may be lower that the
value selected.
Bit rate per client:
64 kbps/ 128 kbps*/ 256 kbps*/ 384 kbps*/ 512 kbps*/ 768 kbps*/
1024 kbps*/ 1536 kbps*/ 2048...

27
Browser*3:Windows Internet Explorer 11 (32-bit)
Windows Internet Explorer 10 (32-bit)
Windows Internet Explorer 9 (32-bit)
Windows Internet Explorer 8 (32-bit)
Maximum concurrent
access number: 14 (Number of sessions that can connect to cameras at the same time)
* Depends on network conditions
FTP client: Alarm image transmission, FTP periodic transmission
Multi-screen: Up to 16 camera images can be displayed simultaneously on a
multi-screen.
(Including the camera itself)
Cellular phone...

28
Important safety instructions ..................................................1 pc.
Installation Guide ................................................................... 1 set
Warranty card*
1 ..................................................................... 1 set
CD-ROM*2 ........................................................................\
.... 1 pc.
Code label*3 ........................................................................\
.. 1 pc.
The following parts are used during...

Disposal of Old Equipment and Batteries
