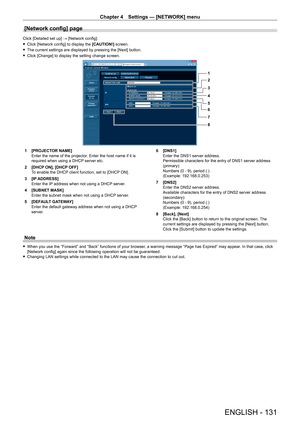

Panasonic Projector PT-DZ16KU User Manual

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 131
[Network config] page
Click [Detailed set up] → [Network config].
 fClick [Network config] to display the  [CAUTION!]

 screen.
 fThe current settings are displayed by pressing the [Next] button.
 fClick [Change] to display the setting change screen.
1
2
3
4
5
6
7
8
1 [PROJECT OR NAME]
Enter the name of the projector. Enter the host name if it is
required when using a DHCP server etc.
2

[DHCP
  ON], [DHCP OFF]
To enable the DHCP client function, set to...

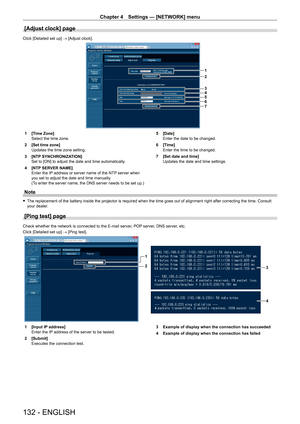

Chapter 4 Settings — [NETWORK] menu
132 - ENGLISH
[Adjust clock] page
Click [Detailed set up] → [Adjust clock].
1
2
3
4
5
6
7
1 [Time Zone]
Select the time zone.
2

[Set time zone]
Updates the time zone setting.
3


[NTP
  SYNCHRONIZATION]
Set to [ON] to adjust the date and time automatically.
4

[NTP
  SERVER NAME]
Enter the IP address or server name of the NTP server when
you set to adjust the date and time manually.
(To enter the server name, the DNS server needs to be set up.) 5
 [Date]
Enter the...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 133

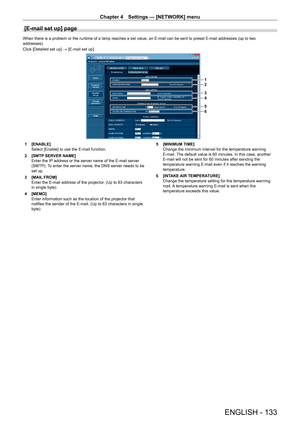

[E-mail set up] page
When there is a problem or the runtime of a lamp reaches a set value, an E-mail can be sent to preset E-mail addresses (up to two
addresses).
Click [Detailed set up] → [E-mail set up].
1
2
3
4
5
6
1 [ENABLE]
Select [Enable] to use the E-mail function.
2

[SMTP
  SERVER NAME]
Enter the IP address or the server name of the E-mail server
(SMTP). To enter the server name, the DNS server needs to be
set up.
3

[MAIL
  FROM]
Enter the...

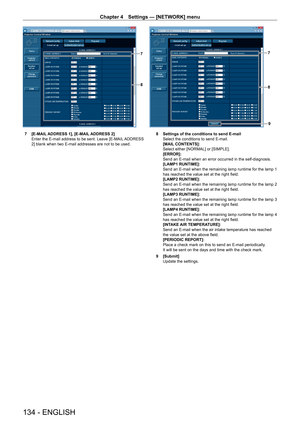

Chapter 4 Settings — [NETWORK] menu
134 - ENGLISH
8
7
9
8
7
7 [E‑ MAIL ADDRESS 1], [E ‑ MAIL ADDRESS 2]
Enter the E-mail address to be sent. Leave [E-MAIL ADDRESS
2] blank when two E-mail addresses are not to be used. 8
 Settings of the conditions to send E-mail
Select the conditions to send E-mail.
[MAIL
 CONTENTS]:
Select either [NORMAL] or [SIMPLE].
[ERROR]:
Send an E-mail when an error occurred in the self-diagnosis.
[LAMP1 RUNTIME]:
Send an E-mail when the remaining lamp runtime for the lamp 1...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 135

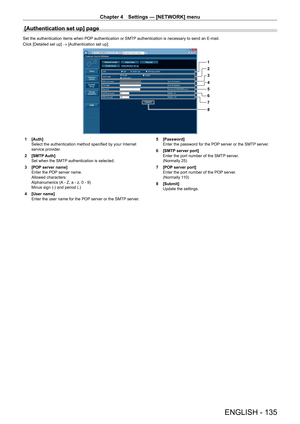

[Authentication set up] page
Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail.
Click [Detailed set up] → [Authentication set up].
1
2
3
4
5
6
7
8
1 [Auth]
Select the authentication method specified by your Internet
service provider
.
2

[SMTP
  Auth]
Set when the SMTP authentication is selected.
3

[POP
  server name]
Enter the POP server name.
Allowed characters:
Alphanumerics (A - Z, a - z, 0...

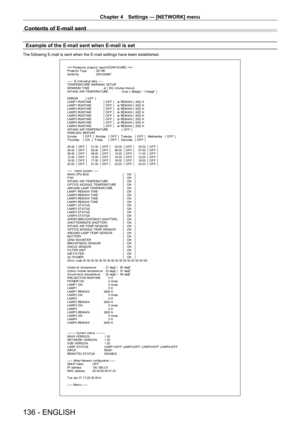

Chapter 4 Settings — [NETWORK] menu
136 - ENGLISH
Contents of E-mail sent
Example of the E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.
=== P anas onic  pr ojec t or  r epor t ( CO NF I G URE )  ===
P r ojec t or  T y pe  :  DZ 16K
S er ial No  :  S W1234567
-----  E-mail set up dat a -----
T EMPERAT URE WARNING  SET UP
M I NI M UM  T I M E   at  [  60]  m inut es  int er v al
I NT A K E  A I R T E M P E RA T URE   O v er  [  46degC /...

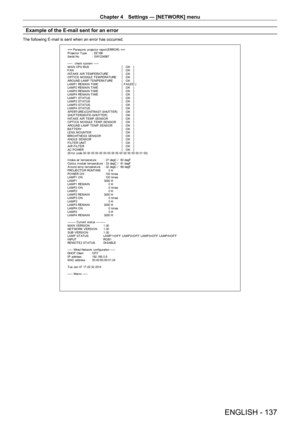

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 137
Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== P anas onic  pr ojec t or  r epor t(E RRO R) ===
P r ojec t or  T y pe  :  DZ 16K
S er ial No  :  S W1234567
-----  check syst em -----
M A I N CP U B US   [   O K   ]
F A N  [   O K   ]
INT AKE AIR T EMPERAT URE  [   O K   ]
O PT ICS MO DULE T EMPERAT URE  [   O K   ]
ARO UND LAMP T EMPERAT URE  [   O K   ]
LAMP1 REMAIN T IME  [ F AILED ]
LAMP2 REMAIN T...

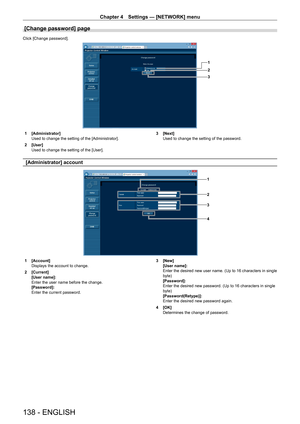

Chapter 4 Settings — [NETWORK] menu
138 - ENGLISH
[Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of the [Administrator].
2

[User]
Used to change the setting of the [User]. 3

 [Next]
Used to change the setting of the password.
[Administrator] account
1
3
2
4
1 [Account]
Displays the account to change.
2

[Current]
[User name]:
Enter the user name before the change.
[Password]:
Enter the current password. 3

 [New]
[User name]:
Enter the desired...

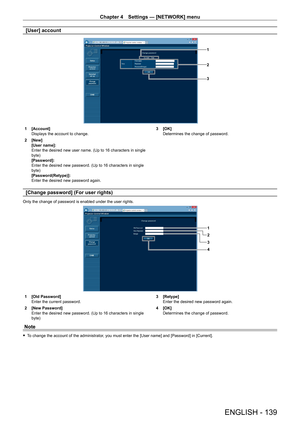

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 139
[User] account
1
2
3
1 [Account]
Displays the account to change.
2

[New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single
byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single
byte)
[Password(Retype)]:
Enter the desired new password again. 3

 [OK]
Determines the change of password.
[Change password] (For user rights)
Only the change of password is enabled under the user rights.
1
2
4 3
1 [Old...

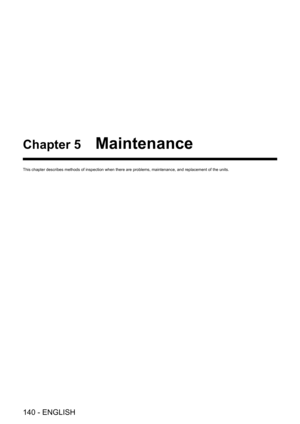

140 - ENGLISH
Chapter 5 Maintenance
This chapter describes methods of inspection when there are problems, maintenance, and replacement of the units.
