Panasonic Projector PT-DZ16KU User Manual

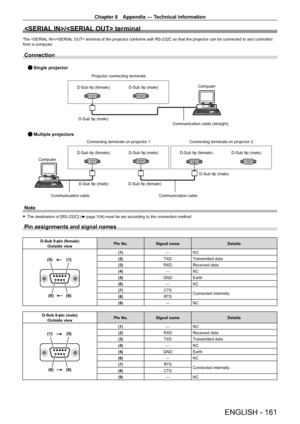

Chapter 6 Appendix — Technical information
ENGLISH - 161
/ terminal
The / terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled
from a computer .
Connection
Projector connecting terminals
Computer
D-Sub 9p (female) D-Sub 9p (male)
D-Sub 9p (male)
Communication cable (straight)
Single projector
Multiple projectors
Connecting terminals on projector 2
D-Sub 9p (female) D-Sub 9p (male) D-Sub 9p (female) D-Sub 9p (male)
Connecting terminals on projector 1...

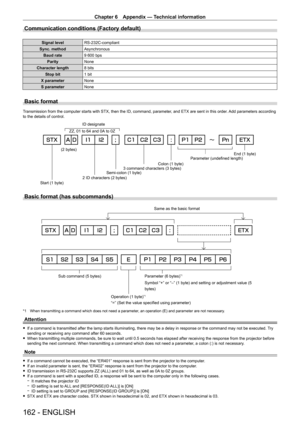

Chapter 6 Appendix — Technical information
162 - ENGLISH
Communication conditions (Factory default)
Signal levelRS - 232C-compliant
Sync. method Asynchronous
Baud rate 9
  600   bps
Parity None
Character length 8 bits
Stop bit 1 bit
X parameter None
S parameter None
Basic format
Transmission from the computer starts with STX, then the ID, command, parameter, and ETX are sent in this order. Add parameters according
to the details of control.
(2 bytes)
2 ID characters (2 bytes) Semi-colon (1 byte) Colon...

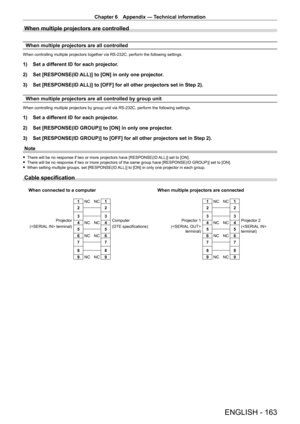

Chapter 6 Appendix — Technical information
ENGLISH - 163
When multiple projectors are controlled
When multiple projectors are all controlled
When controlling multiple projectors together via RS-232C, perform the following settings.
1) Set a different ID for each projector.
2)
Set [RESPONSE(ID
 ALL)] to [ON] in only one projector.
3)

Set [RESPONSE(ID
 ALL)] to [OFF] for all other projectors set in Step 2).
When multiple projectors are all controlled by group unit
When controlling multiple projectors...

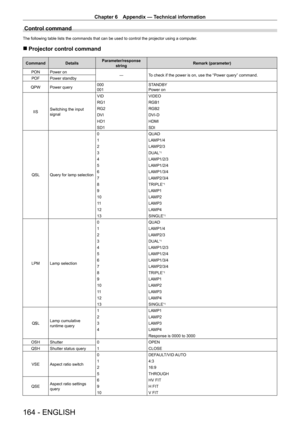

Chapter 6 Appendix — Technical information
164 - ENGLISH
Control command
The following table lists the commands that can be used to control the projector using a computer.
 rProjector control command
Command Details Parameter/response
string Remark (parameter)
PON Power on ―To check if the power is on, use the “Power query” command.
POF Power standby
QPW Power query 000
001STANDBY
Power on
IIS Switching the input
signal VID
VIDEO
RG1 RGB1
RG2 RGB2
DVI DVI
- D
HD1 HDMI
SD1 SDI
QSL Query for lamp...

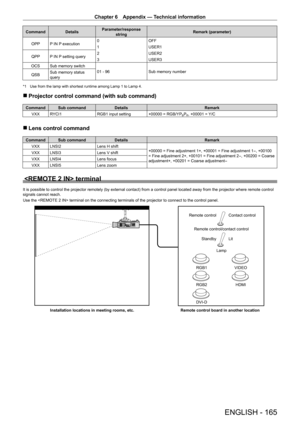

Chapter 6 Appendix — Technical information
ENGLISH - 165
Command DetailsParameter/response
string Remark (parameter)
OPP P IN P execution 0
OFF
1 USER1
QPP P IN P setting query 2
USER2
3 USER3
OCS Sub memory switch 01 - 96Sub memory number
QSB Sub memory status
query
*1 Use from the lamp with shortest runtime among Lamp 1 to Lamp 4.
 r
Projector control command (with sub command)
Command Sub command Details Remark
VXX RYCI1 RGB1 input setting +00000 = RGB/YP
BPR, +00001 = Y/C
 rLens control command...

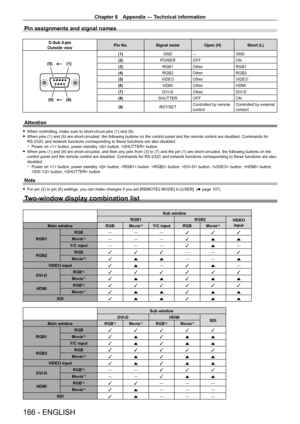

Chapter 6 Appendix — Technical information
166 - ENGLISH
Pin assignments and signal names
D‑Sub 9‑pin
Outside view Pin No.
Signal name Open (H)Short (L)
(9) (6)
(5) (1)
(1)
GND― GND
(2) POWER OFF ON
(3) RGB1Other RGB1
(4) RGB2Other RGB2
(5) VIDEOOther VIDEO
(6) HDMIOther HDMI
(7) DVI
- DOther DVI
- D
(8) SHUTTER OFF ON
(9) RST/SETControlled by remote
control Controlled by external
contact
Attention
 f
When controlling, make sure to short-circuit pins (1) and (9). fWhen pins (1) and (9) are...

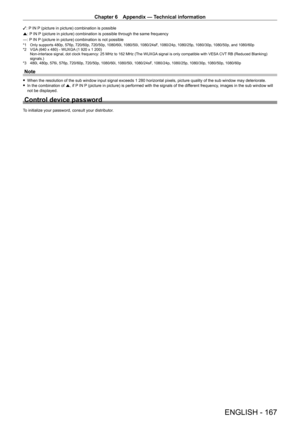

Chapter 6 Appendix — Technical information
ENGLISH - 167
l: P IN P (picture in picture) combination is possible
a: P IN P (picture in picture) combination is possible through the same frequency
―: P IN P (picture in picture) combination is not possible
*1 Only supports 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24sF, 1080/24p, 1080/25p, 1080/30p, 1080/50p, and 1080/60p
*2  VGA  (640   x   480) - WUXGA (1   920   x   1   200)
Non-interlace signal, dot clock frequency: 25
  MHz to 162   MHz...

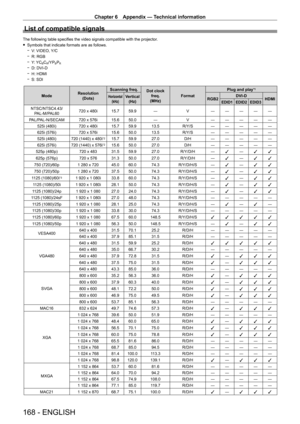

Chapter 6 Appendix — Technical information
168 - ENGLISH
List of compatible signals
The following table specifies the video signals compatible with the projector.
 fSymbols that indicate formats are as follows.
 gV

: VIDEO, Y/C
 gR: RGB
 gY

: YC
BCR/YPBPR gD: DVI - D
 gH: HDMI
 gS: SDI
Mode Resolution
(Dots) Scanning freq.Dot clock
freq.
(MHz)Format Plug and play
*1
Horizontal
(kHz)Vertical(Hz)RGB2 DVI - D
HDMIEDID1EDID2EDID3
NTSC/NTSC4.43/
PAL - M/PAL60 720
  x   480i 15.7 59.9 ― V― ― ― ― ―
PAL/PAL
-...

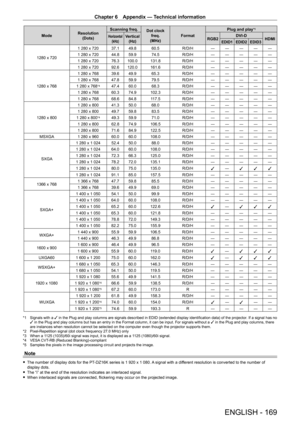

Chapter 6 Appendix — Technical information
ENGLISH - 169
ModeResolution
(Dots) Scanning freq.Dot clock
freq.
(MHz)Format Plug and play
*1
Horizontal
(kHz)Vertical(Hz)RGB2 DVI - D
HDMIEDID1EDID2EDID3
1280 x 720 1   280   x   720 37.1 49.8 60.5
R/D/H ― ― ― ― ―
1   280   x   720 44.8 59.9 74.5
R/D/H ― ― ― ― ―
1   280   x   720 76.3 100.0 131.8 R/D/H ― ― ― ― ―
1
  280   x   720 92.6 120.0 161.6 R/D/H ― ― ― ― ―
1280
  x   768 1
  280   x   768 39.6 49.9 65.3 R/D/H ― ― ― ― ―
1
  280   x   768 47.8 59.9 79.5...

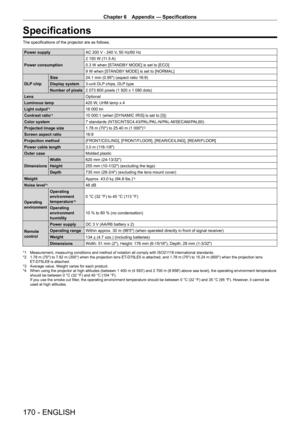

Chapter 6 Appendix — Specifications
170 - ENGLISH
Specifications
The specifications of the projector are as follows.
Power supplyAC 200   V - 240   V, 50   Hz/60   Hz
Power consumption 2
  150   W (11.5
A)
0.3

  W when [STANDBY MODE] is set to [ECO]
9
  W when [STANDBY MODE] is set to [NORMAL]
DLP chip Size
24.1
  mm (0.95") (aspect ratio 16:9)
Display system 3-unit DLP chips, DLP type
Number of pixels 2
  073   600 pixels (1   920   x   1   080 dots)
Lens Optional
Luminous lamp 420
  W, UHM lamp...
