Panasonic Projector PT-LW271U User Manual

Setting
ENGLISH - 41
Settings
Remote ID
When you use the system with multiple projectors,
you can operate all the projectors simultaneously or
each projector individually using single remote control,
if a unique ID number is assigned to each projector.
There are 7 different remote control IDs: [All],
[ID1]~[ID6].
Press ▲▼ to select [Remote ID].1 )
Press ► to display the setting dialog 2 )
box.
Press ◄► to select the desired item.3 )
Attention
When operating the projector under [All] code, you can...

Audio
42 - ENGLISH
Settings
Audio
Select [Audio] from the Main Menu (see “How
to operate menu” on page 33) and then select
the item from the Sub Menu.
Mute
Temporarily turn off the sound.
Press ▲▼ to select [Mute].1 )
Press ► to display the setting dialog 2 )
box.
Press ◄► to switch [On]/[Off].3 )
OnMute.
OffOutput audio.
Press z  button on the remote control
can also turn on/off the sound.
Volume
Adjust the volume.
Press ▲▼ to select [Volume].1 )
Press ► to display the adjustment 2 )
dialog...

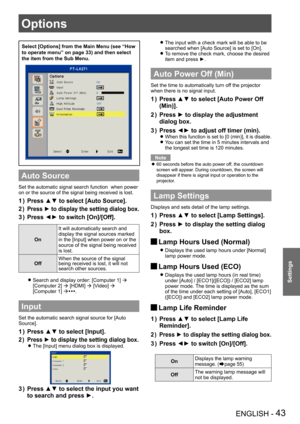

ENGLISH - 43
Settings
Select [Options] from the Main Menu (see “How
to operate menu” on page 33) and then select
the item from the Sub Menu.
Auto Source
Set the automatic signal search function  when power
on or the source of the signal being received is lost.
Press ▲▼ to select [Auto Source].1 )
Press ► to display the setting dialog box.2 )
Press ◄► to switch [On]/[Off].3 )
On
It will automatically search and
display the signal sources marked
in the [Input] when power on or the
source of the...

Options

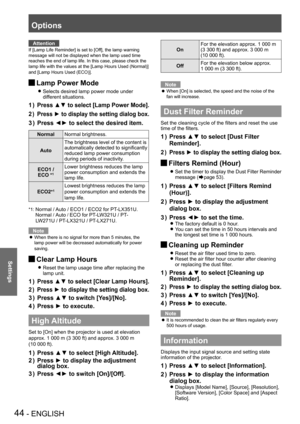

44 - ENGLISH
Settings
Attention
If [Lamp Life Reminder] is set to [Off], the lamp warning
message will not be displayed when the lamp used time
reaches the end of lamp life. In this case, please check the
lamp life with the values at the [Lamp Hours Used (Normal)]
and [Lamp Hours Used (ECO)].
Lamp Power Mode J
Selects desired lamp power mode under  z
different situations.
Press ▲▼ to select [Lamp Power Mode].1 )
Press ► to display the setting dialog box.2 )
Press ◄► to select the desired...

LAN

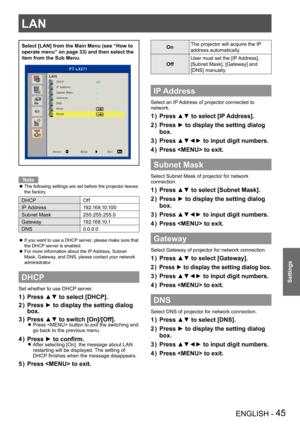

ENGLISH - 45
Settings
Select [LAN] from the Main Menu (see “How to
operate menu” on page 33) and then select the
item from the Sub Menu.
Note
The following settings are set before the projector leaves  z
the factory.
DHCPOff
IP Address1 9 2 .1 6 8 .1 0 .1 0 0
Subnet Mask255.255.255.0
Gateway1 9 2 .1 6 8 .1 0 .1
DNS0.0.0.0
If you want to use a DHCP server, please make sure that  z
the DHCP server is enabled.
For more information about the IP Address, Subnet  z
Mask, Gateway, and DNS, please contact...

LAN

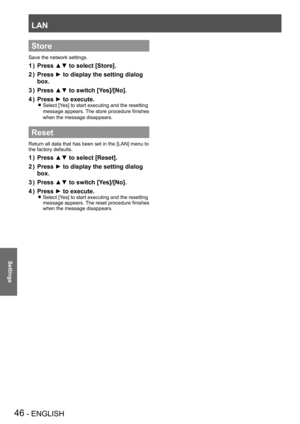

46 - ENGLISH
Settings
Store
Save the network settings.
Press ▲▼ to select [Store].1 )
Press ► to display the setting dialog 2 )
box.
Press ▲▼ to switch [Yes]/[No].3 )
Press ► to execute.4 )
Select [Yes] to start executing and the resetting  z
message appears. The store procedure finishes
when the message disappears.
Reset
Return all data that has been set in the [LAN] menu to
the factory defaults.
Press ▲▼ to select [Reset].1 )
Press ► to display the setting dialog 2 )
box.
Press ▲▼ to switch...

LAN

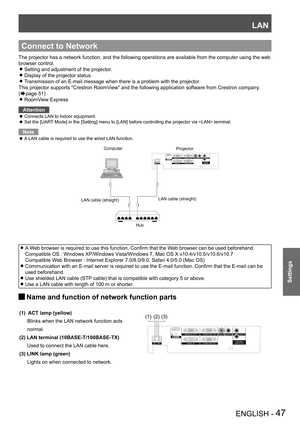

ENGLISH - 47
Settings
The projector has a network function, and the following operations are a\
vailable from the computer using the web
browser control.
Setting and adjustment of the projector. z
Display of the projector status. z
Transmission of an E-mail message when there is a problem with the projec\
tor. z
This projector supports "Crestron RoomView" and the following application software from Crestron company.
(Æpage 51)
RoomView Express z
Attention
Connects LAN to indoor equipment....

LAN

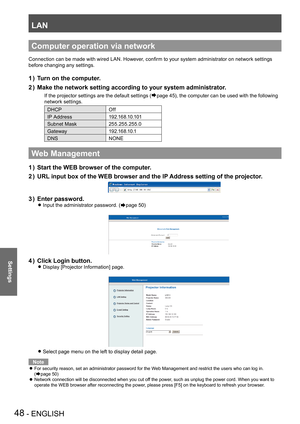

48 - ENGLISH
Settings
Computer operation via network
Connection can be made with wired LAN. However, confirm to your system administrator on network settings
before changing any settings.
Turn on the computer.1 )
Make the network setting according to your system administrator.2 )
If the projector settings are the default settings (Æpage 45), the computer can be used with the following
network settings.
DHCPOff
IP Address1 9 2 .1 6 8 .1 0 .1 0 1
Subnet Mask255.255.255.0
Gateway1 9 2 .1 6 8 .1 0...

LAN

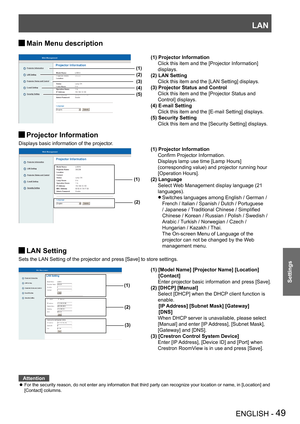

ENGLISH - 49
Settings
Main Menu description J
Projector Information J
Displays basic information of the projector.



LAN Setting J
Sets the LAN Setting of the projector and press [Save] to store settings.


Attention
For the security reason, do not enter any information that third party can recognize your location or name, in [Location] and  z
[Contact] columns.
(1)
(2)
(1) Projector Information
 Confirm Projector Information.
 Displays lamp use time [Lamp Hours]
(corresponding value) and...

LAN

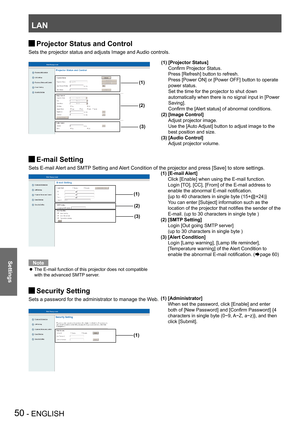

50 - ENGLISH
Settings
Projector Status and Control J
Sets the projector status and adjusts Image and Audio controls.
E-mail Setting J
Sets E-mail Alert and SMTP Setting and Alert Condition of the projector and press [Save] to store settings.
Note
The E-mail function of this projector does not compatible  z
with the advanced SMTP server.
Security Setting J
Sets a password for the administrator to manage the Web.
(1)
(2)
(3)
(1)
(1)  [Administrator]
 When set the password, click [Enable] and enter...
