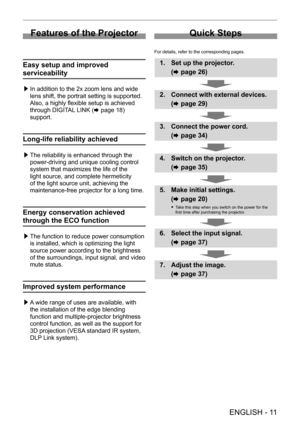

Panasonic Projector PT-RZ470UK User Manual


ENGLISH - 11
Features of the Projector
Easy setup and improved
serviceability
 /£In addition to the 2x zoom lens and wide
lens shift, the portrait setting is supported.
Also, a highly flexible setup is achieved
through DIGIT
AL LINK (x   page   18)
support.
Long-life reliability achieved
 /£ The reliability is enhanced through the
power-driving and unique cooling control
system that maximizes the life of the
light source, and complete hermeticity
of the light source unit, achieving the...

12 - ENGLISH

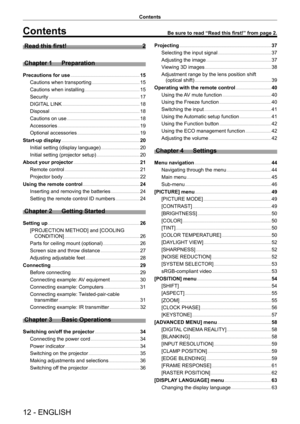

Contents
Contents
Read this first!    2
Chapter 1

Preparation
Precautions for use      15
Cautions when transporting

 1 5
Cautions when installing

 1 5
Security

 1 7
DIGIT
AL LINK

 1 8
Disposal

 1 8
Cautions on use

 1 8
Accessories

 1 9
Optional accessories

 1 9
Start-up display

 20
Initial setting (display language)

 2 0
Initial setting (projector setup)

 2 0
About your projector

 21
Remote control

 2 1
Projector body...

ENGLISH - 13
Contents
[3D SETTINGS] menu

 64
[3D MODE]

 6 4
[3D SYNC OUTPUT
 DELAY]

 6 4
[LEFT/RIGHT
 SWAP]

 6 4
[3D INPUT
 FORMAT]

 6 5
[SAFETY
 PRECAUTIONS MESSAGE]

 6 5
[3D SAFETY
 PRECAUTIONS]

 6 6
[DISPLA
Y OPTION] menu

 67
[COLOR MA
TCHING]

 6 7
[SCREEN SETTING] (only for the PT
-

RW430U
series)

 6 8
[AUT
O SIGNAL]

 6 9
[AUT
O SETUP]

 6 9
[COMPUTER IN]

 6 9
[DVI-I IN]

 7 0
[HDMI IN]

 7 1
[DIGIT
AL LINK IN]

 7 1...

14 - ENGLISH

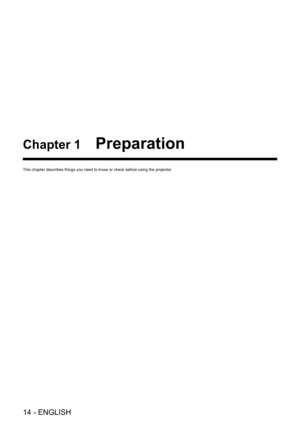

Chapter 1 Preparation
This chapter describes things you need to know or check before using the projector.

Chapter 1 Preparation — Precautions for use
ENGLISH - 15

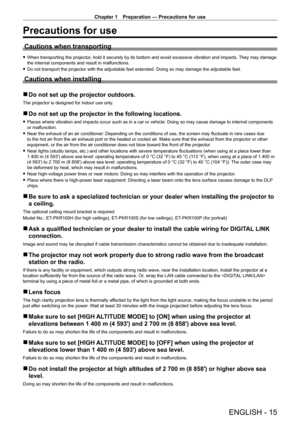

Precautions for use
Cautions when transporting
 fWhen transporting the projector , hold it securely by its bottom and avoid excessive vibration and impacts.  They may damage
the internal components and result in malfunctions.
 f Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet.
Cautions when installing
 rDo not set up the projector outdoors.
The projector is designed for indoor use only....

Chapter 1 Preparation — Precautions for use
16 - ENGLISH

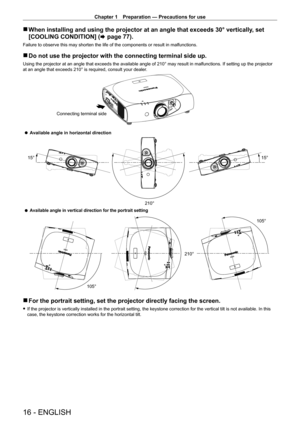

 rWhen installing and using the projector at an angle that exceeds 30° \
vertically , set
[COOLING CONDITION] ( x
  page   77).
Failure to observe this may shorten the life of the components or result in malfunctions.
 rDo not use the projector with the connecting terminal side up.
Using the projector at an angle that exceeds the available angle of 210° may result in malfunctions. If setting up the projector
at an angle that exceeds 210° is...

Chapter 1 Preparation — Precautions for use
ENGLISH - 17

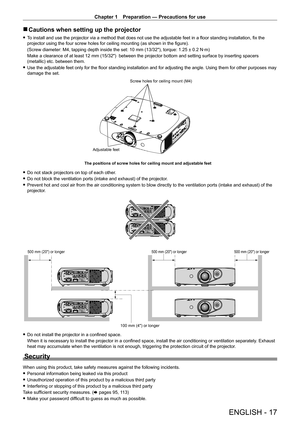

 rCautions when setting up the projector
 fTo install and use the projector via a method that does not use the adjustable feet in a floor standing installation, fix the
projector using the four screw holes for ceiling mounting (as shown in the figure).
(Screw diameter: M4, tapping depth inside the set: 10
  mm (13/32"), torque: 1.25 ± 0.2   N·m)
Make a clearance of at least 12
  mm (15/32")  between the projector bottom and setting surface...

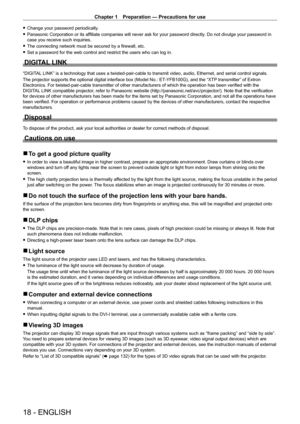

Chapter 1 Preparation — Precautions for use
18 - ENGLISH
 fChange your password periodically .
 fPanasonic Corporation or its affiliate companies will never ask for your password directly . Do not divulge your password in
case you receive such inquiries.
 f The connecting network must be secured by a firewall, etc.
 fSet a password for the web control and restrict the users who can log in.
DIGITAL LINK
“DIGITAL LINK” is a technology that uses a twisted-pair-cable to transmit video, audio, Ethernet, and...

Chapter 1 Preparation — Precautions for use
ENGLISH - 19

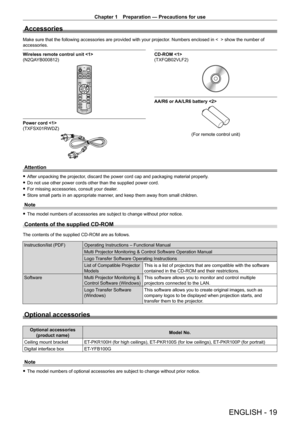

Accessories
Make sure that the following accessories are provided with your projector. Numbers enclosed in <    > show the number of
accessories.
Wireless remote control unit
(N2QAYB000812)
Power cord
(TXFSX01RWDZ)
CD-ROM
(TXFQB02VLF2)
AA/R6 or AA/LR6 battery
(For remote control unit)
Attention
 f After unpacking the projector , discard the power cord cap and packaging material properly.
 fDo not use other power cords other than the supplied...

Chapter 1 Preparation — Start-up display
20 - ENGLISH

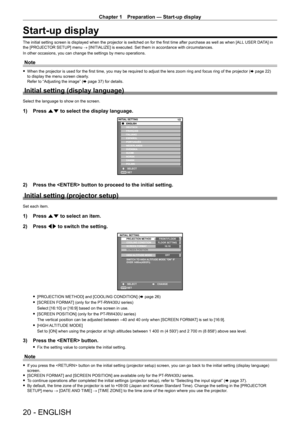

Start-up display
The initial setting screen is displayed when the projector is switched on for the first time after purchase as well as when [ALL USER DATA] in
the [PROJECTOR SETUP] menu → [INITIALIZE] is executed. Set them in accordance with circumstances.
In other occasions, you can change the settings by menu operations.
Note
 f When the projector is used for the first time, you may be required to adjust the lens zoom ring and focus ring of the...
