Chapter 1 Preparation — About your projector
ENGLISH - 21

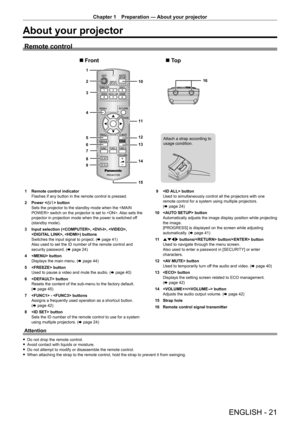

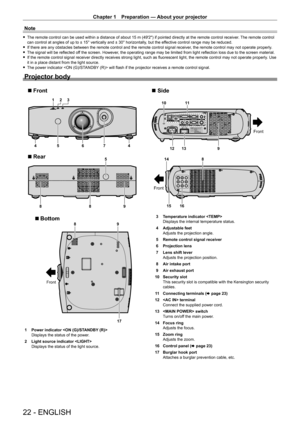

About your projector
Remote control
1
2
3
4
5
6
7
8
910
11
12
13
14
15 16
Attach a strap according to
usage condition.
Front To p
1 Remote control indicator
Flashes if any button in the remote control is pressed.
2

Power <
 v/b> button
Sets the projector to the standby mode when the  switch on the projector is set to . Also sets the
projector in projection mode when the power is switched off
(standby mode).
3

Input selection (, , ,
, )...

Chapter 1 Preparation — About your projector
22 - ENGLISH
Note
 fThe remote control can be used within a distance of about 15   m (49'2") if pointed directly at the remote control receiver. The remote control
can control at angles of up to ±   15° vertically and ±   30° horizontally, but the effective control range may be reduced.
 fIf there are any obstacles between the remote control and the remote control signal receiver , the remote control may not operate properly

.
 fThe signal will be...

Chapter 1 Preparation — About your projector
ENGLISH - 23

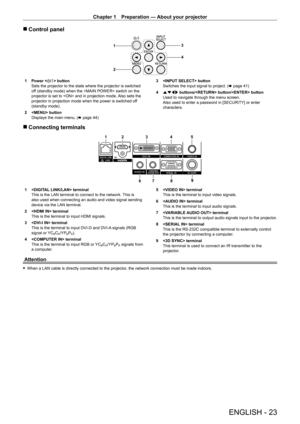

 rControl panel
3
4
1
2
1 Power <
v/b> button
Sets the projector to the state where the projector is switched
off (standby mode) when the  switch on the
projector is set to  and in projection mode. Also sets the
projector in projection mode when the power is switched off
(standby mode).
2

 button
Displays the main menu. ( x

  page   44)3
  button
Switches the input signal to project. (x
  page   41)
4

asqw buttons/ button/ button
Used to...

Chapter 1 Preparation — Using the remote control
24 - ENGLISH

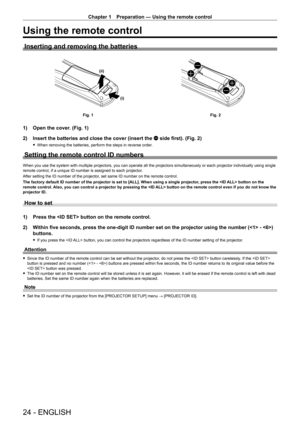

Using the remote control
Inserting and removing the batteries
(i)
(ii)
Fig. 1
Fig. 2
1) Open the cover. (Fig. 1)
2)
Insert the batteries and close the cover (insert the
 m side first). (Fig. 2)
 fWhen removing the batteries, perform the steps in reverse order .
Setting the remote control ID numbers
When you use the system with multiple projectors, you can operate all the projectors simultaneously or each projector individually using single...

ENGLISH - 25

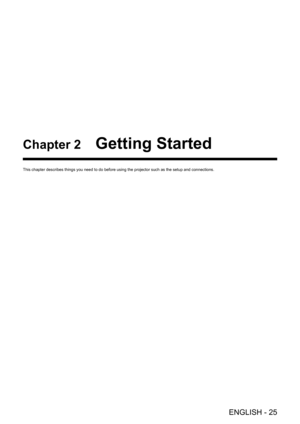

Chapter 2 Getting Started
This chapter describes things you need to do before using the projector \
such as the setup and connections.

Chapter 2 Getting Started — Setting up
26 - ENGLISH

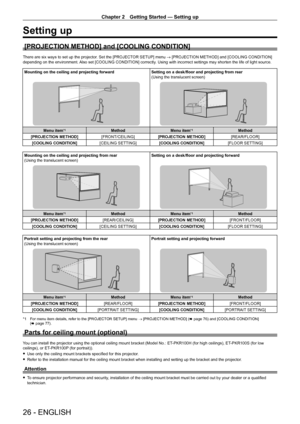

Setting up
[PROJECTION METHOD] and [COOLING CONDITION]
There are six ways to set up the projector. Set the [PROJECTOR SETUP] menu → [PROJECTION METHOD] and [COOLING CONDITION]
depending on the environment. Also set [COOLING CONDITION] correctly. Using with incorrect settings may shorten the life of light source.
Mounting on the ceiling and projecting forwardSetting on a desk/floor and projecting from rear
(Using the translucent screen)
Menu...

Chapter 2 Getting Started — Setting up
ENGLISH - 27

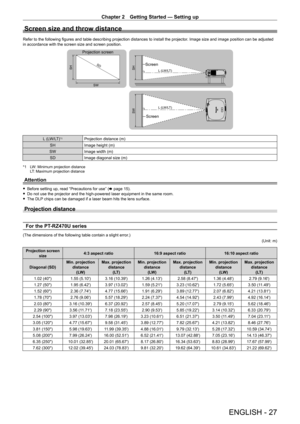

Screen size and throw distance
Refer to the following figures and table describing projection distances to install the projector. Image size and image position can be adjusted
in accordance with the screen size and screen position.
SD
L (LW/LT)
L (LW/LT)
SW SHSH
SW
Projection screen
Screen
Screen
L (LW/LT)*1Projection distance (m)
SH Image height (m)
SW Image width (m)
SD Image diagonal size (m)
*1 LW: Minimum projection distance
LT: Maximum projection...

Chapter 2 Getting Started — Setting up
28 - ENGLISH

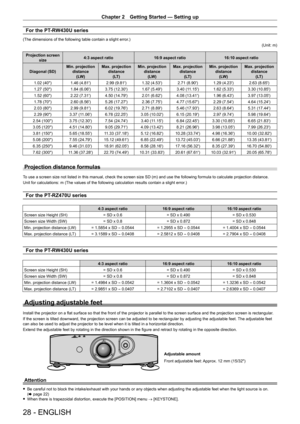

For the PT-RW430U series
(The dimensions of the following table contain a slight error.)
(Unit: m)
Projection screen size 4:3 aspect ratio
16:9 aspect ratio16:10 aspect ratio
Diagonal (SD) Min. projection
distance(LW) Max. projection
distance(LT) Min. projection
distance(LW) Max. projection
distance(LT) Min. projection
distance(LW) Max. projection
distance(LT)
1.02 (40") 1.46 (4.81') 2.99 (9.81') 1.32 (4.53') 2.71 (8.90') 1.29...

Chapter 2 Getting Started — Connecting
ENGLISH - 29

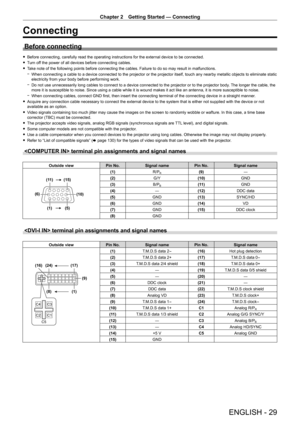

Connecting
Before connecting
 fBefore connecting, carefully read the operating instructions for the external device to be connected.
 fT

urn off the power of all devices before connecting cables.
 fT

ake note of the following points before connecting the cables. Failure to do so may result in malfunctions.
 g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static...

Chapter 2 Getting Started — Connecting
30 - ENGLISH

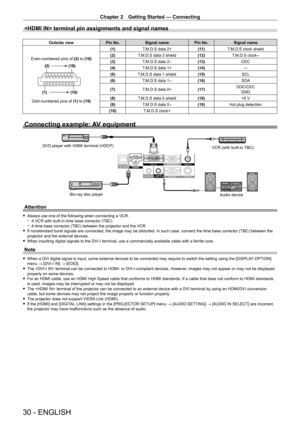

 terminal pin assignments and signal names
Outside viewPin No.Signal name Pin No.Signal name
Even-numbered pins of  (2) to (18)
(1)(19)
(2) (18)
Odd-numbered pins of
(1) to (19)(1)
T.M.D.S data 2+ (11)T.M.D.S clock shield
(2) T.M.D.S data 2 shield (12)T.M.D.S clock
-
(3)T.M.D.S data 2-(13) CEC
(4) T.M.D.S data 1+ (14)—
(5) T.M.D.S data 1 shield (15)SCL
(6) T.M.D.S data 1
-(16) SDA
(7) T.M.D.S data 0+ (17)DDC/CEC
GND
(8) T.M.D.S data 0 shield (18)+5...
