Panasonic Projector PT-RZ475 Specifications

1-Chip DLP™ Projectors
PT-RZ475 Series
Ideal  for  Rear  Projection—
Extremely  Long-Term Continuous Operation

SOLID  SHINE  series  uses  the  newly  developed  LED/Laser-combined  light  source
SOLID  SHINE  series  projectors  provide  solid  reliability  and
long-lasting  brightness  unprecedented  by  conventional
lamp-based  projectors.
Approximately  up  to  10  years*
1  of  maintenance-free
operation
No  need  to  replace  the  light  source  or  air  filter,  providing
a  dramatic  reduction  in  the  Total  Cost  of  Ownership  (TCO).
Long-lasting  picture  quality
Excellent  picture  quality  and...

Outstanding  Approx.  up  to  10  Years*1  of
Continuous  Operation
This  new  LED/Laser-combined  light  source
requires  no  maintenance  for  approximately  up  to
10  years. *
1  In  many  cases,  this  means  no
maintenance  until  your  next  refresh  cycle.
Naturally,  there  are  no  lamp  burnout  problems
during  use,  so  reliability  is  further  increased.
There  is  also  no  filter  to  clean  due  to  carefully
engineered  sealed  optics.  As  a  consequence,
running  cost  is...

from  control  panel  or  remote  control  of  the  pro-
jector  to  enable  attractive  presentations  or  les-
sons  using  multimedia  content.
Abundant  Connection  Terminals
Interfaces  include  HDMI  and  DVI-I  inputs.  The
serial  terminal  (RS-232C)  has  an  Emulate  func-
tion  that  lets  you  continue  using  existing  control
systems  when  replacing  previous  Panasonic
models.  It  is  also  possible  to  output  audio  dur-
ing  Standby  mode*8.  This  is  convenient  when...

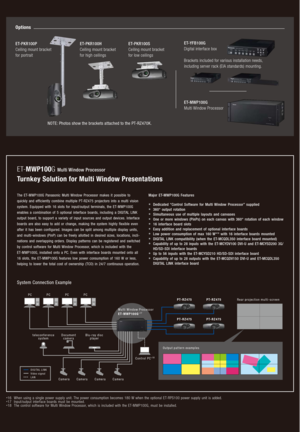

ET-PKR100P
Ceiling mount bracket
for portrait
NOTE: Photos show the brackets attached to the PT-RZ470K.
ET-PKR100H
Ceiling mount bracket
for high ceilings
Options
ET-PKR100S
Ceiling mount bracket
for low ceilings
ET-YFB100G
Digital interface box
ET-MWP100G
Multi Window Processor
Brackets included for various installation needs,
including server rack (EIA standards) mounting.
ET-MWP100G Multi Window Processor
Tu r n k e y   S o l u t i o n   f o r   M u l t i   W i n d o w   P r e s e n t a t i o n...

PT-RZ475G1 Printed in Japan.
All information included here is valid as of June 2013.
For more information about Panasonic projectors, please visit :Projector Global Web Site – panasonic.net/avc/projectorFacebook – w w w.facebook.com /panasonicprojectorYo uTu b e   –  w w w.youtube.com /user/ PanasonicProjector
Weights  and  dimensions  shown  are  approximate.  Specifications  and  appearance  are  subject  to change  without  notice.  Product  availability  differs  depending  on  region  and  country....
