Panasonic Projector PT-RZ570 User Manual
Here you can view all the pages of manual Panasonic Projector PT-RZ570 User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.
Page 121
![Page 121
Chapter 4 Settings — [SECURITY] menu
ENGLISH - 121

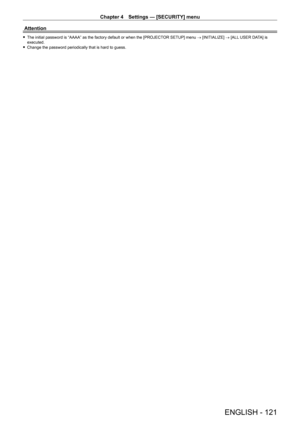

Attention
fThe initial password is “AAAA” as the factory default or when the [PROJECT OR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is
executed.
f Change the password periodically that is hard to guess.](http://img.usermanuals.tech/thumb/58/100440/w300_projector_manual_9221_d-120.png "Page 121
Chapter 4 Settings — [SECURITY] menu
ENGLISH - 121
Attention
fThe initial password is “AAAA” as the factory default or when the [PROJECT OR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is
executed.
f Change the password periodically that is hard to guess.")
Chapter 4 Settings — [SECURITY] menu ENGLISH - 121 Attention fThe initial password is “AAAA” as the factory default or when the [PROJECT OR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed. f Change the password periodically that is hard to guess.
Page 122
![Page 122
Chapter 4 Settings — [NETWORK] menu
122 - ENGLISH

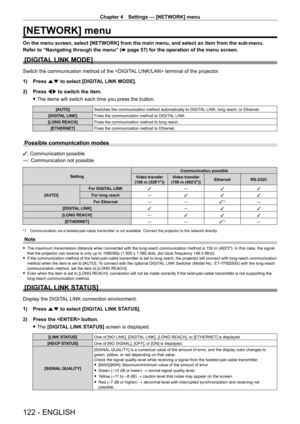

[NETWORK] menu
On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
page 57) for the operation of the menu screen.
[DIGITAL LINK MODE]
Switch the communication method of the terminal of the projector.
1)
Press
as to select [DIGITAL LINK MODE].
2)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Switches the...](http://img.usermanuals.tech/thumb/58/100440/w300_projector_manual_9221_d-121.png "Page 122
Chapter 4 Settings — [NETWORK] menu
122 - ENGLISH
[NETWORK] menu
On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
page 57) for the operation of the menu screen.
[DIGITAL LINK MODE]
Switch the communication method of the terminal of the projector.
1)
Press
as to select [DIGITAL LINK MODE].
2)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Switches the...")
Chapter 4 Settings — [NETWORK] menu 122 - ENGLISH [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 57) for the operation of the menu screen. [DIGITAL LINK MODE] Switch the communication method of the terminal of the projector. 1) Press as to select [DIGITAL LINK MODE]. 2) Press qw to switch the item. fThe items will switch each time you press the button. [AUTO] Switches the...
Page 123
![Page 123
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 123

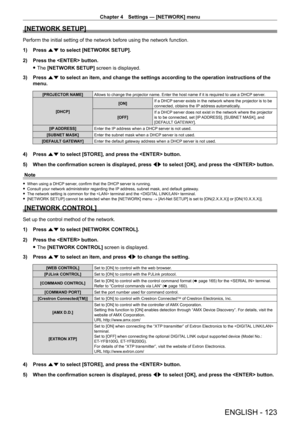

[NETWORK SETUP]
Perform the initial setting of the network before using the network function.
1)
Press
as to select [NETWORK SETUP].
2)
Press the button.
fThe
[NETWORK SETUP] screen is displayed.
3)
Press
as to select an item, and change the settings according to the operation instructions of the
menu.
[PROJECTOR NAME] Allows to change the projector name. Enter the host name if it is required to use a DHCP server.
[DHCP] [ON]
If a DHCP...](http://img.usermanuals.tech/thumb/58/100440/w300_projector_manual_9221_d-122.png "Page 123
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 123
[NETWORK SETUP]
Perform the initial setting of the network before using the network function.
1)
Press
as to select [NETWORK SETUP].
2)
Press the button.
fThe
[NETWORK SETUP] screen is displayed.
3)
Press
as to select an item, and change the settings according to the operation instructions of the
menu.
[PROJECTOR NAME] Allows to change the projector name. Enter the host name if it is required to use a DHCP server.
[DHCP] [ON]
If a DHCP...")
Chapter 4 Settings — [NETWORK] menu ENGLISH - 123 [NETWORK SETUP] Perform the initial setting of the network before using the network function. 1) Press as to select [NETWORK SETUP]. 2) Press the button. fThe [NETWORK SETUP] screen is displayed. 3) Press as to select an item, and change the settings according to the operation instructions of the menu. [PROJECTOR NAME] Allows to change the projector name. Enter the host name if it is required to use a DHCP server. [DHCP] [ON] If a DHCP...

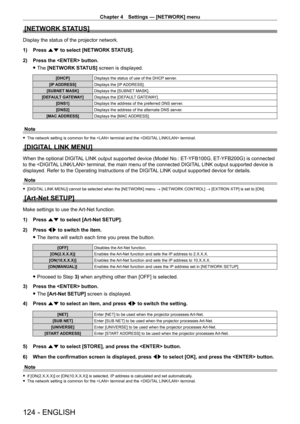

Page 124
![Page 124
Chapter 4 Settings — [NETWORK] menu
124 - ENGLISH
[NETWORK STATUS]
Display the status of the projector network.
1)
Press
as to select [NETWORK STATUS].
2)
Press the button.
fThe
[NETWORK STATUS] screen is displayed.
[DHCP] Displays the status of use of the DHCP server.
[IP ADDRESS] Displays the [IP ADDRESS].
[SUBNET MASK] Displays the [SUBNET MASK].
[DEFAULT GATEWAY] Displays the [DEFAULT GATEWAY].
[DNS1] Displays the address of the preferred DNS server.
[DNS2] Displays the address of the...](http://img.usermanuals.tech/thumb/58/100440/w300_projector_manual_9221_d-123.png "Page 124
Chapter 4 Settings — [NETWORK] menu
124 - ENGLISH
[NETWORK STATUS]
Display the status of the projector network.
1)
Press
as to select [NETWORK STATUS].
2)
Press the button.
fThe
[NETWORK STATUS] screen is displayed.
[DHCP] Displays the status of use of the DHCP server.
[IP ADDRESS] Displays the [IP ADDRESS].
[SUBNET MASK] Displays the [SUBNET MASK].
[DEFAULT GATEWAY] Displays the [DEFAULT GATEWAY].
[DNS1] Displays the address of the preferred DNS server.
[DNS2] Displays the address of the...")
Chapter 4 Settings — [NETWORK] menu 124 - ENGLISH [NETWORK STATUS] Display the status of the projector network. 1) Press as to select [NETWORK STATUS]. 2) Press the button. fThe [NETWORK STATUS] screen is displayed. [DHCP] Displays the status of use of the DHCP server. [IP ADDRESS] Displays the [IP ADDRESS]. [SUBNET MASK] Displays the [SUBNET MASK]. [DEFAULT GATEWAY] Displays the [DEFAULT GATEWAY]. [DNS1] Displays the address of the preferred DNS server. [DNS2] Displays the address of the...
Page 125
![Page 125
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 125

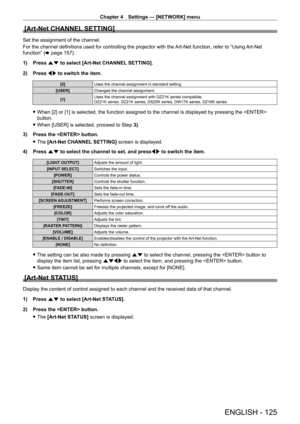

[Art-Net CHANNEL SETTING]
Set the assignment of the channel.
For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net
function” (x
page 157).
1)
Press
as to select [Art-Net CHANNEL SETTING].
2)
Press
qw to switch the item.
[2] Uses the channel assignment in standard setting.
[USER] Changes the channel assignment.
[1] Uses the channel assignment with DZ21K series compatible.
DZ21K...](http://img.usermanuals.tech/thumb/58/100440/w300_projector_manual_9221_d-124.png "Page 125
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 125
[Art-Net CHANNEL SETTING]
Set the assignment of the channel.
For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net
function” (x
page 157).
1)
Press
as to select [Art-Net CHANNEL SETTING].
2)
Press
qw to switch the item.
[2] Uses the channel assignment in standard setting.
[USER] Changes the channel assignment.
[1] Uses the channel assignment with DZ21K series compatible.
DZ21K...")
Chapter 4 Settings — [NETWORK] menu ENGLISH - 125 [Art-Net CHANNEL SETTING] Set the assignment of the channel. For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net function” (x page 157). 1) Press as to select [Art-Net CHANNEL SETTING]. 2) Press qw to switch the item. [2] Uses the channel assignment in standard setting. [USER] Changes the channel assignment. [1] Uses the channel assignment with DZ21K series compatible. DZ21K...
Page 126

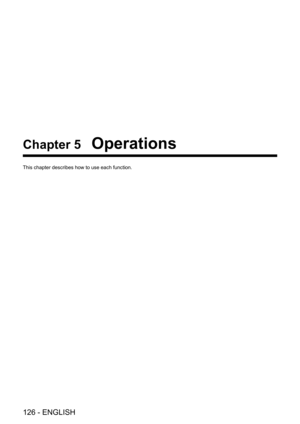

126 - ENGLISH Chapter 5 Operations This chapter describes how to use each function.
Page 127

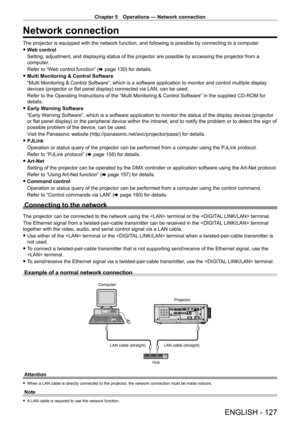

Chapter 5 Operations — Network connection ENGLISH - 127 Network connection The projector is equipped with the network function, and following is possible by connecting to a computer. fW eb control Setting, adjustment, and displaying status of the projector are possible by accessing the projector from a computer. Refer to “Web control function” (x page 130) for details. fMulti Monitoring & Control Software “Multi Monitoring & Control Software”, which is a software application to monitor and...

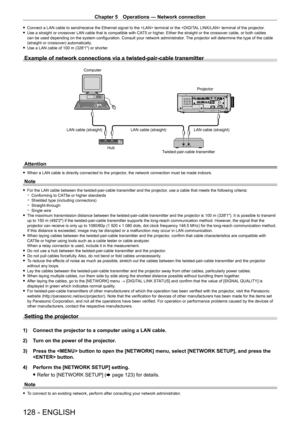

Page 128
Chapter 5 Operations — Network connection 128 - ENGLISH fConnect a LAN cable to send/receive the Ethernet signal to the terminal or the terminal of the projector. fUse a straight or crossover LAN cable that is compatible with CA T5 or higher . Either the straight or the crossover cable, or both cables can be used depending on the system configuration. Consult your network administrator . The projector will determine the type of the cable (straight or crossover) automatically. f Use a LAN cable of...
Page 129
![Page 129
Chapter 5 Operations — Network connection
ENGLISH - 129

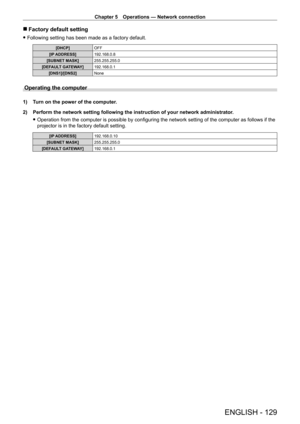

rFactory default setting
fFollowing setting has been made as a factory default.
[DHCP] OFF
[IP ADDRESS] 192.168.0.8
[SUBNET MASK] 255.255.255.0
[DEFAULT GATEWAY] 192.168.0.1
[DNS1]/[DNS2] None
Operating the computer
1) Turn on the power of the computer.
2)
Perform the network setting following the instruction of your network ad\
ministrator
.
fOperation from the computer is possible by configuring the network setting of the computer as...](http://img.usermanuals.tech/thumb/58/100440/w300_projector_manual_9221_d-128.png "Page 129
Chapter 5 Operations — Network connection
ENGLISH - 129
rFactory default setting
fFollowing setting has been made as a factory default.
[DHCP] OFF
[IP ADDRESS] 192.168.0.8
[SUBNET MASK] 255.255.255.0
[DEFAULT GATEWAY] 192.168.0.1
[DNS1]/[DNS2] None
Operating the computer
1) Turn on the power of the computer.
2)
Perform the network setting following the instruction of your network ad\
ministrator
.
fOperation from the computer is possible by configuring the network setting of the computer as...")
Chapter 5 Operations — Network connection ENGLISH - 129 rFactory default setting fFollowing setting has been made as a factory default. [DHCP] OFF [IP ADDRESS] 192.168.0.8 [SUBNET MASK] 255.255.255.0 [DEFAULT GATEWAY] 192.168.0.1 [DNS1]/[DNS2] None Operating the computer 1) Turn on the power of the computer. 2) Perform the network setting following the instruction of your network ad\ ministrator . fOperation from the computer is possible by configuring the network setting of the computer as...
Page 130

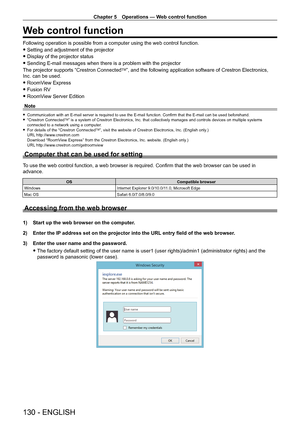

Chapter 5 Operations — Web control function 130 - ENGLISH Web control function Following operation is possible from a computer using the web control function. fSetting and adjustment of the projector fDisplay of the projector status fSending E-mail messages when there is a problem with the projector The projector supports “Crestron Connected TM”, and the following application software of Crestron Electronics, Inc. can be used. f RoomV iew Express f Fusion R V f RoomV iew Server Edition Note f...
