Page 141
![Page 141
Chapter 5 Operations — Web control function
ENGLISH - 141

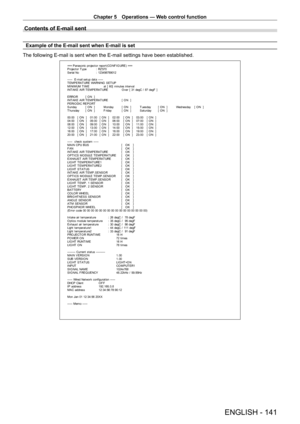

Contents of E-mail sent
Example of the E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.
=== P anas onic pr ojec t or r epor t ( CO NF I G URE ) ===
P r ojec t or T y pe : RZ 570
S er ial No : 123456789012
----- E-mail set up dat a -----
T EMPERAT URE WARNING SET UP
M I NI M UM T I M E at [ 60] m inut es int er v al
I NT A K E A I R T E M P E RA T URE O v er [ 31...](http://img.usermanuals.tech/thumb/58/100440/w300_projector_manual_9221_d-140.png "Page 141
Chapter 5 Operations — Web control function
ENGLISH - 141
Contents of E-mail sent
Example of the E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.
=== P anas onic pr ojec t or r epor t ( CO NF I G URE ) ===
P r ojec t or T y pe : RZ 570
S er ial No : 123456789012
----- E-mail set up dat a -----
T EMPERAT URE WARNING SET UP
M I NI M UM T I M E at [ 60] m inut es int er v al
I NT A K E A I R T E M P E RA T URE O v er [ 31...")
Chapter 5 Operations — Web control function ENGLISH - 141 Contents of E-mail sent Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === P anas onic pr ojec t or r epor t ( CO NF I G URE ) === P r ojec t or T y pe : RZ 570 S er ial No : 123456789012 ----- E-mail set up dat a ----- T EMPERAT URE WARNING SET UP M I NI M UM T I M E at [ 60] m inut es int er v al I NT A K E A I R T E M P E RA T URE O v er [ 31...
Page 142
![Page 142
Chapter 5 Operations — Web control function
142 - ENGLISH

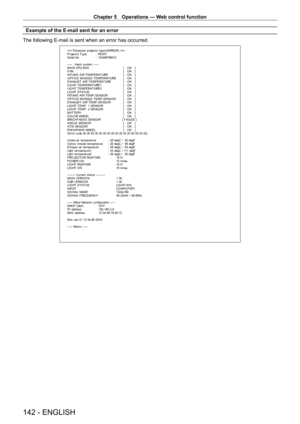

Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== P anas onic pr ojec t or r epor t ( E RRO R) ===
P r ojec t or T y pe : RZ 570
S er ial No : 123456789012
----- check syst em -----
M A I N CP U B US [ O K ]
F A N [ O K ]
INT AKE AIR T EMPERAT URE [ O K ]
O PT ICS MO DULE T EMPERAT URE [ O K ]
EXHAUST AIR T EMPERAT URE [ O K ]
LIG HT T EMPERAT URE1 [ O K...](http://img.usermanuals.tech/thumb/58/100440/w300_projector_manual_9221_d-141.png "Page 142
Chapter 5 Operations — Web control function
142 - ENGLISH
Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== P anas onic pr ojec t or r epor t ( E RRO R) ===
P r ojec t or T y pe : RZ 570
S er ial No : 123456789012
----- check syst em -----
M A I N CP U B US [ O K ]
F A N [ O K ]
INT AKE AIR T EMPERAT URE [ O K ]
O PT ICS MO DULE T EMPERAT URE [ O K ]
EXHAUST AIR T EMPERAT URE [ O K ]
LIG HT T EMPERAT URE1 [ O K...")
Chapter 5 Operations — Web control function 142 - ENGLISH Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === P anas onic pr ojec t or r epor t ( E RRO R) === P r ojec t or T y pe : RZ 570 S er ial No : 123456789012 ----- check syst em ----- M A I N CP U B US [ O K ] F A N [ O K ] INT AKE AIR T EMPERAT URE [ O K ] O PT ICS MO DULE T EMPERAT URE [ O K ] EXHAUST AIR T EMPERAT URE [ O K ] LIG HT T EMPERAT URE1 [ O K...
Page 143
![Page 143
Chapter 5 Operations — Web control function
ENGLISH - 143

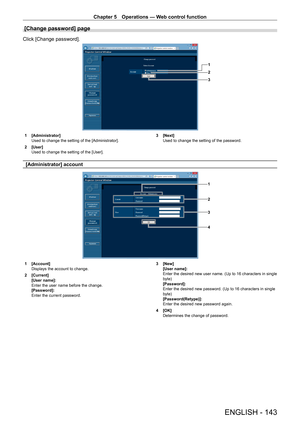

[Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of the [Administrator].
2
[User]
Used to change the setting of the [User]. 3
[Next]
Used to change the setting of the password.
[Administrator] account
1
3
2
4
1 [Account]
Displays the account to change.
2
[Current]
[User name]:
Enter the user name before the change.
[Password]:
Enter the current password. 3
[New]
[User name]:
Enter the...](http://img.usermanuals.tech/thumb/58/100440/w300_projector_manual_9221_d-142.png "Page 143
Chapter 5 Operations — Web control function
ENGLISH - 143
[Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of the [Administrator].
2
[User]
Used to change the setting of the [User]. 3
[Next]
Used to change the setting of the password.
[Administrator] account
1
3
2
4
1 [Account]
Displays the account to change.
2
[Current]
[User name]:
Enter the user name before the change.
[Password]:
Enter the current password. 3
[New]
[User name]:
Enter the...")
Chapter 5 Operations — Web control function ENGLISH - 143 [Change password] page Click [Change password]. 1 2 3 1 [Administrator] Used to change the setting of the [Administrator]. 2 [User] Used to change the setting of the [User]. 3 [Next] Used to change the setting of the password. [Administrator] account 1 3 2 4 1 [Account] Displays the account to change. 2 [Current] [User name]: Enter the user name before the change. [Password]: Enter the current password. 3 [New] [User name]: Enter the...
Page 144
![Page 144
Chapter 5 Operations — Web control function
144 - ENGLISH

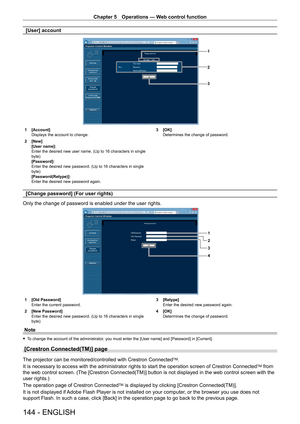

[User] account
1
2
3
1 [Account]
Displays the account to change.
2
[New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single
byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single
byte)
[Password(Retype)]:
Enter the desired new password again. 3
[OK]
Determines the change of password.
[Change password] (For user rights)
Only the change of password is enabled under the user rights.
1
2
4...](http://img.usermanuals.tech/thumb/58/100440/w300_projector_manual_9221_d-143.png "Page 144
Chapter 5 Operations — Web control function
144 - ENGLISH
[User] account
1
2
3
1 [Account]
Displays the account to change.
2
[New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single
byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single
byte)
[Password(Retype)]:
Enter the desired new password again. 3
[OK]
Determines the change of password.
[Change password] (For user rights)
Only the change of password is enabled under the user rights.
1
2
4...")
Chapter 5 Operations — Web control function 144 - ENGLISH [User] account 1 2 3 1 [Account] Displays the account to change. 2 [New] [User name]: Enter the desired new user name. (Up to 16 characters in single byte) [Password]: Enter the desired new password. (Up to 16 characters in single byte) [Password(Retype)]: Enter the desired new password again. 3 [OK] Determines the change of password. [Change password] (For user rights) Only the change of password is enabled under the user rights. 1 2 4...
Page 145
![Page 145
Chapter 5 Operations — Web control function
ENGLISH - 145

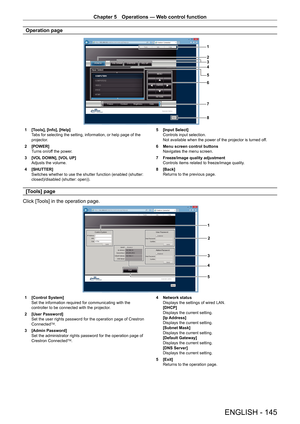

Operation page
1
2
4 3
5
6
7
8
1 [Tools], [Info], [Help]Tabs for selecting the setting, information, or help page of the
projector.
2
[POWER]
T
urns on/off the power.
3
[VOL
DOWN], [VOL UP]
Adjusts the volume.
4
[SHUTTER]
Switches whether to use the shutter function (enabled (shutter:
closed)/disabled (shutter: open)). 5
[Input Select]
Controls input selection.
Not available when the power of the projector is turned of
f.
6
Menu...](http://img.usermanuals.tech/thumb/58/100440/w300_projector_manual_9221_d-144.png "Page 145
Chapter 5 Operations — Web control function
ENGLISH - 145
Operation page
1
2
4 3
5
6
7
8
1 [Tools], [Info], [Help]Tabs for selecting the setting, information, or help page of the
projector.
2
[POWER]
T
urns on/off the power.
3
[VOL
DOWN], [VOL UP]
Adjusts the volume.
4
[SHUTTER]
Switches whether to use the shutter function (enabled (shutter:
closed)/disabled (shutter: open)). 5
[Input Select]
Controls input selection.
Not available when the power of the projector is turned of
f.
6
Menu...")
Chapter 5 Operations — Web control function ENGLISH - 145 Operation page 1 2 4 3 5 6 7 8 1 [Tools], [Info], [Help]Tabs for selecting the setting, information, or help page of the projector. 2 [POWER] T urns on/off the power. 3 [VOL DOWN], [VOL UP] Adjusts the volume. 4 [SHUTTER] Switches whether to use the shutter function (enabled (shutter: closed)/disabled (shutter: open)). 5 [Input Select] Controls input selection. Not available when the power of the projector is turned of f. 6 Menu...
Page 146
![Page 146
Chapter 5 Operations — Web control function
146 - ENGLISH

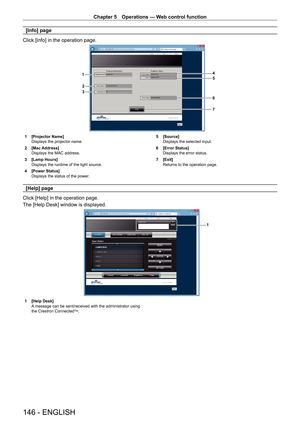

[Info] page
Click [Info] in the operation page.
4
5
6
1
2
3
7
1 [Projector Name]
Displays the projector name.
2
[Mac Address]
Displays the MAC address.
3
[Lamp Hours]
Displays the runtime of the light source.
4
[Power Status]
Displays the status of the power
. 5
[Source]
Displays the selected input.
6
[Error Status]
Displays the error status.
7
[Exit]
Returns to the operation page.
[Help] page
Click [Help] in the operation page.
The...](http://img.usermanuals.tech/thumb/58/100440/w300_projector_manual_9221_d-145.png "Page 146
Chapter 5 Operations — Web control function
146 - ENGLISH
[Info] page
Click [Info] in the operation page.
4
5
6
1
2
3
7
1 [Projector Name]
Displays the projector name.
2
[Mac Address]
Displays the MAC address.
3
[Lamp Hours]
Displays the runtime of the light source.
4
[Power Status]
Displays the status of the power
. 5
[Source]
Displays the selected input.
6
[Error Status]
Displays the error status.
7
[Exit]
Returns to the operation page.
[Help] page
Click [Help] in the operation page.
The...")
Chapter 5 Operations — Web control function 146 - ENGLISH [Info] page Click [Info] in the operation page. 4 5 6 1 2 3 7 1 [Projector Name] Displays the projector name. 2 [Mac Address] Displays the MAC address. 3 [Lamp Hours] Displays the runtime of the light source. 4 [Power Status] Displays the status of the power . 5 [Source] Displays the selected input. 6 [Error Status] Displays the error status. 7 [Exit] Returns to the operation page. [Help] page Click [Help] in the operation page. The...
Page 147

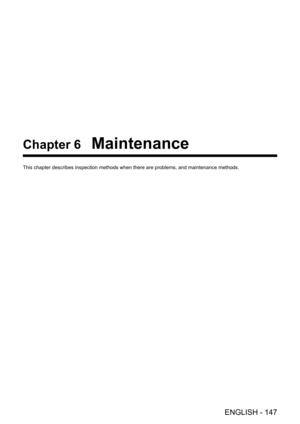

ENGLISH - 147 Chapter 6 Maintenance This chapter describes inspection methods when there are problems, and maintenance methods.
Page 148

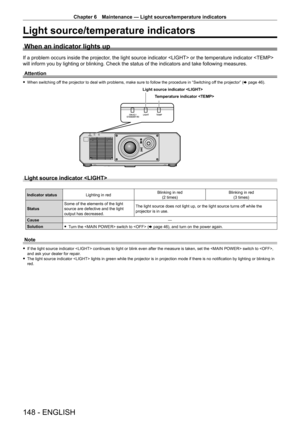

Chapter 6 Maintenance — Light source/temperature indicators 148 - ENGLISH Light source/temperature indicators When an indicator lights up If a problem occurs inside the projector, the light source indicator or the temperature indicator will inform you by lighting or blinking. Check the status of the indicators and take following measures.Attention f When switching of f the projector to deal with problems, make sure to follow the procedure in “Switching of f the projector” (x page 46). Light...
Page 149

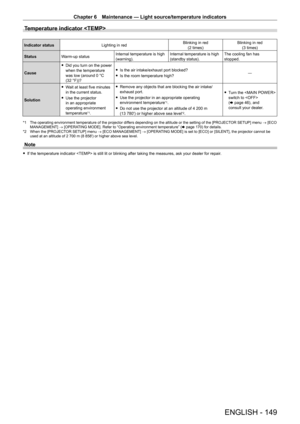

Chapter 6 Maintenance — Light source/temperature indicators ENGLISH - 149 Temperature indicator Indicator statusLighting in red Blinking in red (2 times) Blinking in red (3 times) Status Warm-up status Internal temperature is high (warning).Internal temperature is high (standby status).The cooling fan has stopped. Cause f Did you turn on the power when the temperature was low (around 0 °C (32 °F))? fIs the air intake/exhaust port blocked? fIs the room temperature high? ― Solution f W ait...
Page 150

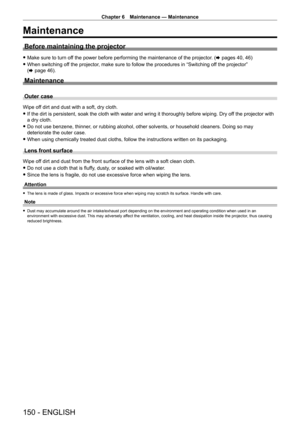

Chapter 6 Maintenance — Maintenance 150 - ENGLISH Maintenance Before maintaining the projector fMake sure to turn of f the power before performing the maintenance of the projector. (x pages 40, 46) fWhen switching of f the projector, make sure to follow the procedures in “Switching off the projector” (x page 46). Maintenance Outer case Wipe off dirt and dust with a soft, dry cloth. fIf the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry of f the projector...
