Panasonic Projector PT-SX300A User Manual

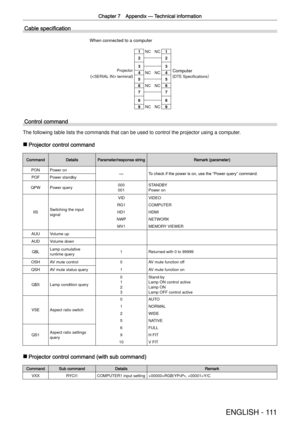

Chapter 7 Appendix —
 Technical information
ENGLISH - 111
Cable specification
1 NC    NC 1
2 2
3 3
4 NC    NC 4
5 5
6 NC    NC 6
7 7
8 8
9 NC    NC 9
When connected to a computer
Projector
( terminal )Computer
(DTE Specifications）
Control command
The following table lists the commands that can be used to control the p\
rojector using a computer.
 rProjector control command
CommandDetailsParameter/response stringRemark (parameter)
PONPower on―To check if the power is on, use the  “
Power query ”
 command....

Chapter 7 Appendix —
 Technical information
112 - ENGLISH
[MENU LOCK PASSWORD] operations
7RLQLWLDOL]H\RXUSDVVZRUGFRQVXOW\RXUGLVWULEXWRU
List of compatible signals
The following table specifies the video signals compatible with the projector .

f Symbols that indicate formats are as follows.

g V: VIDEO, Y/C

g R: RGB

g Y: YC
BCR/YPBPR

g H: HDMI
Mode Display resolution
(dots) Scanning frequency
Dot clock
frequency
(MHz) Format Plug and play*
1
Horizontal
(kHz) Vertical
(Hz) COMPUTER...

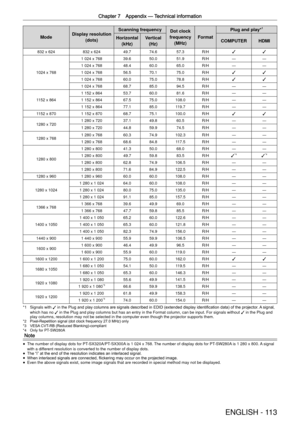

Chapter 7 Appendix —
 Technical information
ENGLISH - 113
Mode Display resolution
(dots) Scanning frequency
Dot clock
frequency
(MHz) Format Plug and play*
1
Horizontal
(kHz) Vertical
(Hz) COMPUTER
HDMI
832 x 624 832 x 62449.7 74.6  57.3 R/H
l l
1024 x 768 1 024 x 768
39.6 50.0  51.9 R/H ―
―
1 024 x 768 48.4 60.0  65.0 R/H ―
―
1 024 x 768 56.5 70.1  75.0 R/H
l l
1 024 x 768 60.0 75.0  78.8 R/H
l l
1 024 x 768 68.7 85.0  94.5 R/H ―
―
1152 x 864 1 152 x 864
53.7 60.0  81.6 R/H ―
―
1 152 x 864 67.5 75.0...

Chapter 7 Appendix —

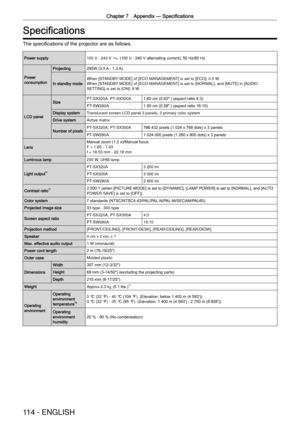

 Specifications
114 - ENGLISH
Specifications
The specifications of the projector are as follows.
Power supply100 V - 240 V  (100 V - 240 V alternating current), 50 Hz/60 Hz
Power consumption
Projecting295W (3.5 A - 1.3 A)
In standby modeWhen [STANDBY MODE] of [ECO MANAGEMENT] is set to [ECO]: 0.5 W
When [STANDBY MODE] of [ECO MANAGEMENT] is set to [NORMAL], and [MUTE] in [AUDIO
SETTING] is set to [ON]: 8 W
LCD panel
SizePT-SX320A, PT-SX300A 1.60 cm (0.63″
) (aspect ratio 4:3)...

Chapter 7 Appendix —

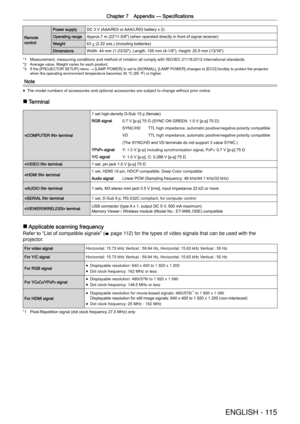

 Specifications
ENGLISH - 115
Remote control
Power supplyDC 3 V (AAA/R03 or AAA/LR03 battery x 2)
Operating rangeApprox.7 m (22'11-5/8") (when operated directly in front of signal receiver)
Weight63
] (2.22 ozs.) (including batteries)
DimensionsWidth: 44 mm (1-23/32"), Length: 105 mm (4-1/8"), Height: 20.5 mm (13/16")
*1  Measurement, measuring conditions and method of notation all comply with\
 ISO/IEC 21118:2012 international standards.
*2  Average value. Weight...

Chapter 7 Appendix —

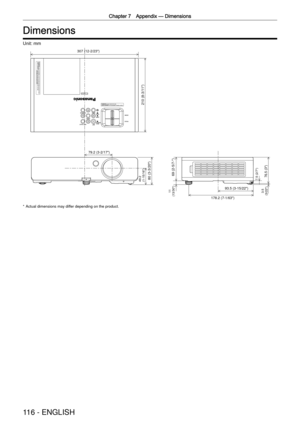

 Dimensions
116 - ENGLISH
Dimensions
Unit: mm
307 (12-2/23)
79.2 (3-2/17) 178.2 (7-1/63)93.5 (3-15/22)
76.5 (3)7.5 (2/7)
3.5
(3/22)80 (3-3/20)
69 (2-5/7-)
11
(13/30) 49.2
(1-15/16)
210 (8-3/11)
PT-SX320A
*
Actual dimensions may differ depending on the product.

Chapter 7 Appendix —

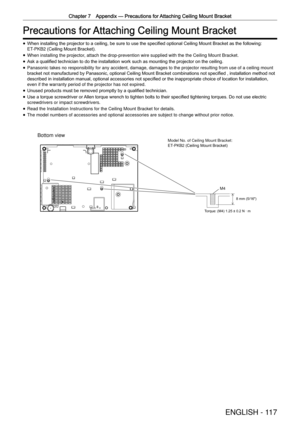

 Precautions for Attaching Ceiling Mount Bracket
ENGLISH - 117
Precautions for Attaching Ceiling Mount Bracket

f When installing the projector to a ceiling, be sure to use the specified optional Ceiling Mount Bracket as the following:
E T-
PKB2
 (Ceiling Mount Bracket).

f When installing the projector, attach the drop-prevention wire supplied with the the Ceiling Mount Br\
acket.

f Ask a qualified technician to do the installation work such as mounting the projector on the...

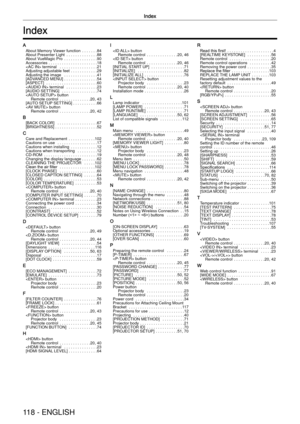

Index
118 - ENGLISH
Index
A
About Memory Viewer function .......84
About Presenter Light  ..............88
About VueMagic Pro  ...............90
Accessories  ...................... 18
 terminal  ................. 21
Adjusting adjustable feet  ............29
Adjusting the image   ...............41
[ADVANCED MENU]  ...............54
[ASPECT]   ....................... 60
 terminal  .............. 23
[AUDIO SETTING]   ................ 74
 button Remote control  .............. 20, 43
[AUTO SETUP SETTING]...

M0916JQ0 -CH
Panasonic Corporation
Web S ite : h ttp://panas onic.net/a vc/projector/
© Panas onic Corporat ion 2016
Release Date : September 2016
