Page 81

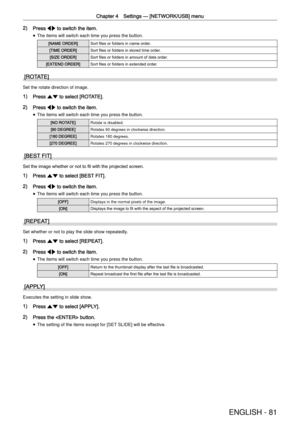

![Page 81
Chapter 4 Settings —
[NETWORK/USB] menu
ENGLISH - 81
2) Press qw to switch the item.
f The items will switch each time you press the button.
[NAME ORDER]Sort files or folders in name order.
[TIME ORDER]Sort files or folders in stored time order.
[SIZE ORDER]Sort files or folders in amount of data order.
[EXTEND ORDER]Sort files or folders in extended order.
[ROTATE]
Set the rotate direction of image.
1) Press as to select [ROTATE].
2) Press qw to switch the item.
f The items will switch each time you...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-80.png "Page 81
Chapter 4 Settings —
[NETWORK/USB] menu
ENGLISH - 81
2) Press qw to switch the item.
f The items will switch each time you press the button.
[NAME ORDER]Sort files or folders in name order.
[TIME ORDER]Sort files or folders in stored time order.
[SIZE ORDER]Sort files or folders in amount of data order.
[EXTEND ORDER]Sort files or folders in extended order.
[ROTATE]
Set the rotate direction of image.
1) Press as to select [ROTATE].
2) Press qw to switch the item.
f The items will switch each time you...")
Chapter 4 Settings — [NETWORK/USB] menu ENGLISH - 81 2) Press qw to switch the item. f The items will switch each time you press the button. [NAME ORDER]Sort files or folders in name order. [TIME ORDER]Sort files or folders in stored time order. [SIZE ORDER]Sort files or folders in amount of data order. [EXTEND ORDER]Sort files or folders in extended order. [ROTATE] Set the rotate direction of image. 1) Press as to select [ROTATE]. 2) Press qw to switch the item. f The items will switch each time you...
Page 82

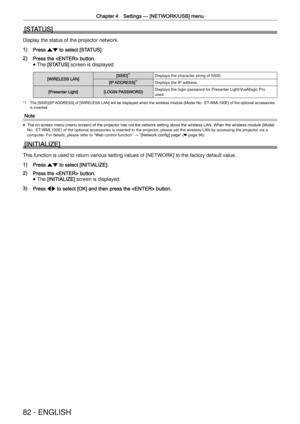

![Page 82
Chapter 4 Settings —
[NETWORK/USB] menu
82 - ENGLISH
[STATUS]
Display the status of the projector network.
1) Press as to select [STATUS].
2) Press the button.
f The [STATUS] screen is displayed.
[WIRELESS LAN][SSID]*1Displays the character string of SSID.
[IP ADDRESS]*1Displays the IP address.
[Presenter Light][LOGIN PASSWORD]Displays the login password for Presenter Light/VueMagic Pro
used.
*1
The [SSID]/[IP ADDRESS] of [WIRELESS LAN] will be displayed when the wireless module (Model No.:...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-81.png "Page 82
Chapter 4 Settings —
[NETWORK/USB] menu
82 - ENGLISH
[STATUS]
Display the status of the projector network.
1) Press as to select [STATUS].
2) Press the button.
f The [STATUS] screen is displayed.
[WIRELESS LAN][SSID]*1Displays the character string of SSID.
[IP ADDRESS]*1Displays the IP address.
[Presenter Light][LOGIN PASSWORD]Displays the login password for Presenter Light/VueMagic Pro
used.
*1
The [SSID]/[IP ADDRESS] of [WIRELESS LAN] will be displayed when the wireless module (Model No.:...")
Chapter 4 Settings — [NETWORK/USB] menu 82 - ENGLISH [STATUS] Display the status of the projector network. 1) Press as to select [STATUS]. 2) Press the button. f The [STATUS] screen is displayed. [WIRELESS LAN][SSID]*1Displays the character string of SSID. [IP ADDRESS]*1Displays the IP address. [Presenter Light][LOGIN PASSWORD]Displays the login password for Presenter Light/VueMagic Pro used. *1 The [SSID]/[IP ADDRESS] of [WIRELESS LAN] will be displayed when the wireless module (Model No.:...
Page 83

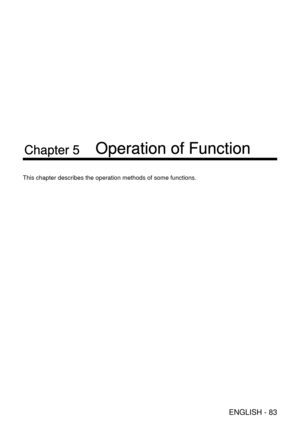

ENGLISH - 83 Chapter 5 Operation of Function This chapter describes the operation methods of some functions.
Page 84

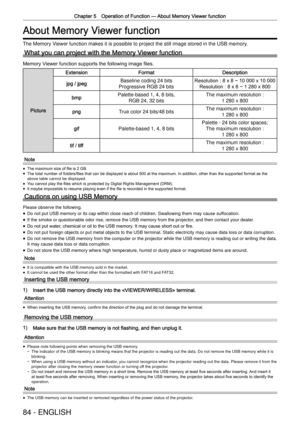

![Page 84
Chapter 5 Operation of Function —
About Memory Viewer function
84 - ENGLISH
About Memory Viewer function
The Memory Viewer function makes it is possible to project the still image stored in\
the USB memory.
What you can project with the Memory Viewer function
Memory Viewer function supports the following image files.
ExtensionFormatDescription
jpg / jpegBaseline coding 24 bits
Progressive RGB 24 bits Resolution : 8 x 8 ~ 10 000 x 10 000
Resolution : 8 x 8 ~ 1 280 x 800
bmpPalette-based 1, 4, 8...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-83.png "Page 84
Chapter 5 Operation of Function —
About Memory Viewer function
84 - ENGLISH
About Memory Viewer function
The Memory Viewer function makes it is possible to project the still image stored in\
the USB memory.
What you can project with the Memory Viewer function
Memory Viewer function supports the following image files.
ExtensionFormatDescription
jpg / jpegBaseline coding 24 bits
Progressive RGB 24 bits Resolution : 8 x 8 ~ 10 000 x 10 000
Resolution : 8 x 8 ~ 1 280 x 800
bmpPalette-based 1, 4, 8...")
Chapter 5 Operation of Function — About Memory Viewer function 84 - ENGLISH About Memory Viewer function The Memory Viewer function makes it is possible to project the still image stored in\ the USB memory. What you can project with the Memory Viewer function Memory Viewer function supports the following image files. Picture ExtensionFormatDescription jpg / jpegBaseline coding 24 bits Progressive RGB 24 bits Resolution : 8 x 8 ~ 10 000 x 10 000 Resolution : 8 x 8 ~ 1 280 x 800 bmpPalette-based 1, 4, 8...
Page 85

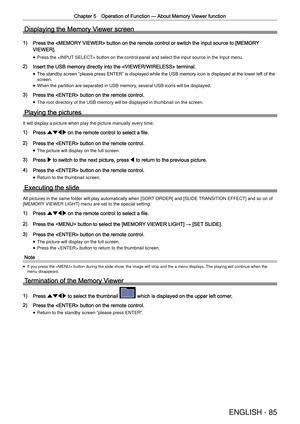

![Page 85
Chapter 5 Operation of Function —
About Memory Viewer function
ENGLISH - 85
Displaying the Memory Viewer screen
1) Press the button on the remote control or switch the input source to [MEM\
ORY
VIEWER].
f Press the button on the control panel and select the input source in the \
Input menu.
2) Insert the USB memory directly into the terminal.
f The standby screen
“
please press ENTER ”
is displayed while the USB memory icon is displayed at the lower left of the
screen.
f When the partition...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-84.png "Page 85
Chapter 5 Operation of Function —
About Memory Viewer function
ENGLISH - 85
Displaying the Memory Viewer screen
1) Press the button on the remote control or switch the input source to [MEM\
ORY
VIEWER].
f Press the button on the control panel and select the input source in the \
Input menu.
2) Insert the USB memory directly into the terminal.
f The standby screen
“
please press ENTER ”
is displayed while the USB memory icon is displayed at the lower left of the
screen.
f When the partition...")
Chapter 5 Operation of Function — About Memory Viewer function ENGLISH - 85 Displaying the Memory Viewer screen 1) Press the button on the remote control or switch the input source to [MEM\ ORY VIEWER]. f Press the button on the control panel and select the input source in the \ Input menu. 2) Insert the USB memory directly into the terminal. f The standby screen “ please press ENTER ” is displayed while the USB memory icon is displayed at the lower left of the screen. f When the partition...
Page 86

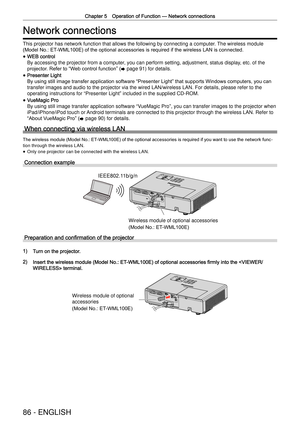

![Page 86
Chapter 5 Operation of Function —
Network connections
86 - ENGLISH
Network connections
This projector has network function that allows the following by connect\
ing a computer. The wireless module
(Model No.: ET-WML100E) of the optional accessories is required if the wireless LAN is connected.
f
WEB control
By accessing the projector from a computer, you can perform setting, adjustment, status display, etc. of the
projector. Refer to “
W
eb control function”
(
x page 91) for details.
f...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-85.png "Page 86
Chapter 5 Operation of Function —
Network connections
86 - ENGLISH
Network connections
This projector has network function that allows the following by connect\
ing a computer. The wireless module
(Model No.: ET-WML100E) of the optional accessories is required if the wireless LAN is connected.
f
WEB control
By accessing the projector from a computer, you can perform setting, adjustment, status display, etc. of the
projector. Refer to “
W
eb control function”
(
x page 91) for details.
f...")
Chapter 5 Operation of Function — Network connections 86 - ENGLISH Network connections This projector has network function that allows the following by connect\ ing a computer. The wireless module (Model No.: ET-WML100E) of the optional accessories is required if the wireless LAN is connected. f WEB control By accessing the projector from a computer, you can perform setting, adjustment, status display, etc. of the projector. Refer to “ W eb control function” ( x page 91) for details. f...
Page 87

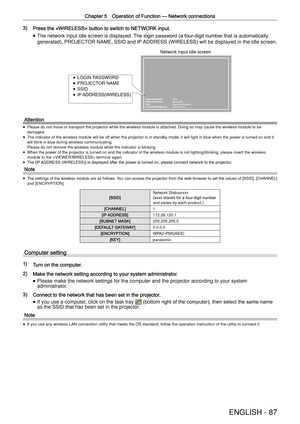

Chapter 5 Operation of Function — Network connections ENGLISH - 87 3) Press the button to switch to NETWORK input. f The network input idle screen is displayed. The login password (a four-digit number that is automatically generated), PROJECTOR NAME, SSID and IP ADDRESS (WIRELESS) will be displayed in the idle screen. LOGIN PASSWORD : 5678 PROJECTOR NAME : Name1234 SSID : Panasonic Projector IP ADDRESS(WIRELESS) : 172.28.120.1 f LOGIN PASSWORD f PROJECTOR NAME f SSID f IP...
Page 88

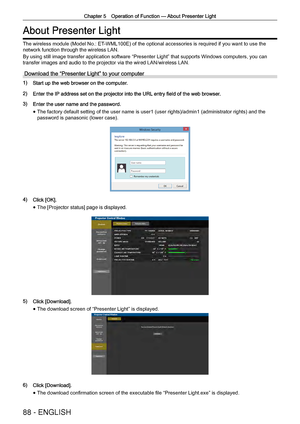

![Page 88
Chapter 5 Operation of Function —
About Presenter Light
88 - ENGLISH
About Presenter Light
The wireless module (Model No.: ET-WML100E) of the optional accessories is required if you want to use the
network function through the wireless LAN.
By using still image transfer application software “
Presenter Light ”
that supports Windows computers, you can
transfer images and audio to the projector via the wired LAN/wireless LA\
N.
Download the “
Presenter Light ”
to your computer
1) Start up the web...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-87.png "Page 88
Chapter 5 Operation of Function —
About Presenter Light
88 - ENGLISH
About Presenter Light
The wireless module (Model No.: ET-WML100E) of the optional accessories is required if you want to use the
network function through the wireless LAN.
By using still image transfer application software “
Presenter Light ”
that supports Windows computers, you can
transfer images and audio to the projector via the wired LAN/wireless LA\
N.
Download the “
Presenter Light ”
to your computer
1) Start up the web...")
Chapter 5 Operation of Function — About Presenter Light 88 - ENGLISH About Presenter Light The wireless module (Model No.: ET-WML100E) of the optional accessories is required if you want to use the network function through the wireless LAN. By using still image transfer application software “ Presenter Light ” that supports Windows computers, you can transfer images and audio to the projector via the wired LAN/wireless LA\ N. Download the “ Presenter Light ” to your computer 1) Start up the web...
Page 89

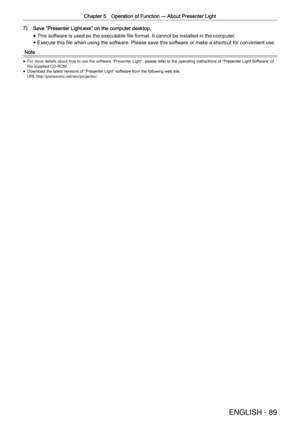

Chapter 5 Operation of Function — About Presenter Light ENGLISH - 89 7) Save “ Presenter Light.exe ” on the computer desktop. f This software is used as the executable file format. It cannot be installed in the computer . f Execute this file when using the software. Please save this software or make a shortcut for convenient use. Note f For more details about how to use the software “ Presenter Light ” , please refer to the operating instructions of “ Presenter Light Software ” of the supplied...
Page 90

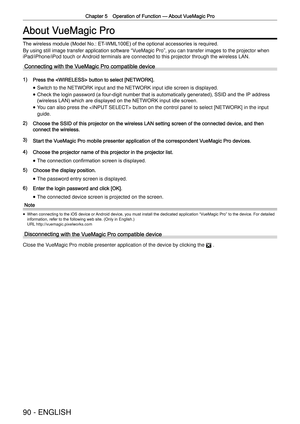

![Page 90
Chapter 5 Operation of Function —
About VueMagic Pro
90 - ENGLISH
About VueMagic Pro
The wireless module (Model No.: ET-WML100E) of the optional accessories is required.
By using still image transfer application software “
VueMagic Pro ”
, you can transfer images to the projector when
iPad/
iPhone/iPod touch or Android terminals are connected to this projector through the wireless L\
AN.
Connecting with the VueMagic Pro compatible device
1) Press the button to select [NETWORK].
f Switch to the...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-89.png "Page 90
Chapter 5 Operation of Function —
About VueMagic Pro
90 - ENGLISH
About VueMagic Pro
The wireless module (Model No.: ET-WML100E) of the optional accessories is required.
By using still image transfer application software “
VueMagic Pro ”
, you can transfer images to the projector when
iPad/
iPhone/iPod touch or Android terminals are connected to this projector through the wireless L\
AN.
Connecting with the VueMagic Pro compatible device
1) Press the button to select [NETWORK].
f Switch to the...")
Chapter 5 Operation of Function — About VueMagic Pro 90 - ENGLISH About VueMagic Pro The wireless module (Model No.: ET-WML100E) of the optional accessories is required. By using still image transfer application software “ VueMagic Pro ” , you can transfer images to the projector when iPad/ iPhone/iPod touch or Android terminals are connected to this projector through the wireless L\ AN. Connecting with the VueMagic Pro compatible device 1) Press the button to select [NETWORK]. f Switch to the...
