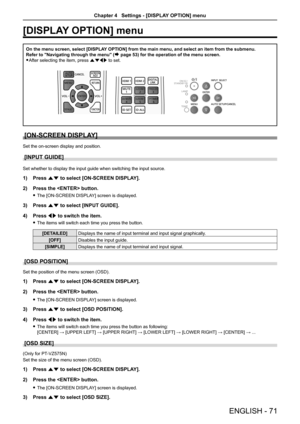

[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (
Æ page 53) for the operation of the menu screen.

f After selecting the item, press asqw to set.
[ON-SCREEN DISPLAY]
Set the on-screen display and position.
[INPUT GUIDE]
Set whether to display the input guide when switching the input source.
1)  Press as to select [ON-SCREEN DISPLAY].
2)  Press the  button.

f The [ON-SCREEN...

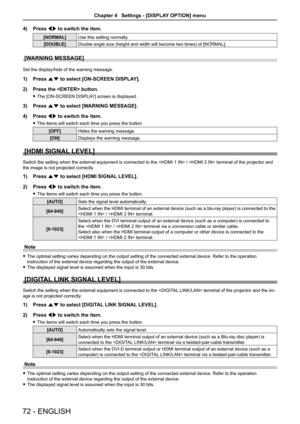

4) Press qw to switch the item.
[NORMAL] Use this setting normally.
[DOUBLE] Double angle size (height and width will become two times) of [NORMAL].
[WARNING MESSAGE]
Set the display/hide of the warning message.
1) Press as to select [ON-SCREEN DISPLAY].
2)  Press the  button.

f The [ON-SCREEN DISPLAY] screen is displayed.
3)  Press as to select [WARNING MESSAGE].
4)  Press qw to switch the item.

f The items will switch each time you press the button.
[OFF] Hides the warning message.
[ON] Displays...

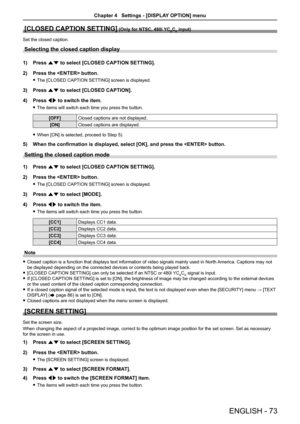

[CLOSED CAPTION SETTING] (Only for NTSC, 480i YCBCR input)
Set the closed caption.
Selecting the closed caption display
1)  Press as to select [CLOSED CAPTION SETTING].
2)  Press the  button.

f The [CLOSED CAPTION SETTING] screen is displayed.
3)  Press as to select [CLOSED CAPTION].
4)  Press qw to switch the item.

f The items will switch each time you press the button.
[OFF] Closed captions are not displayed.
[ON] Closed captions are displayed.

f When [ON] is selected, proceed to Step 5).
5)...

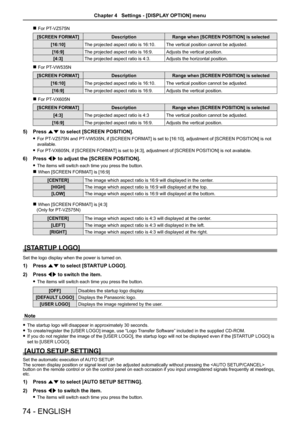

r For PT-VZ575N
[SCREEN FORMAT]DescriptionRange when [SCREEN POSITION] is selected
[16:10] The projected aspect ratio is 16:10. The vertical position cannot be adjusted.
[16:9] The projected aspect ratio is 16:9. Adjusts the vertical position.
[4:3] The projected aspect ratio is 4:3. Adjusts the horizontal position.
r For PT-VW535N
[SCREEN FORMAT] DescriptionRange when [SCREEN POSITION] is selected
[16:10] The projected aspect ratio is 16:10. The vertical position cannot be adjusted.
[16:9] The projected...

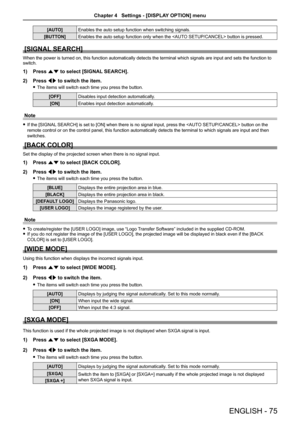

[AUTO]Enables the auto setup function when switching signals.
[BUTTON] Enables the auto setup function only when the  button is pressed.
[SIGNAL SEARCH]
When the power is turned on, this function automatically detects the terminal which signals are input and sets the function to
switch.
1) Press as to select [SIGNAL SEARCH].
2)  Press qw to switch the item.

f The items will switch each time you press the button.
[OFF] Disables input detection automatically.
[ON] Enables input detection automatically....

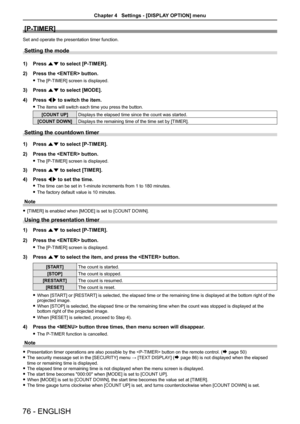

[P-TIMER]
Set and operate the presentation timer function.
Setting the mode
1) Press as to select [P-TIMER].
2)  Press the  button.

f The [P-TIMER] screen is displayed.
3)  Press  as to select [MODE].
4)  Press qw to switch the item.

f The items will switch each time you press the button.
[COUNT UP] Displays the elapsed time since the count was started.
[COUNT DOWN] Displays the remaining time of the time set by [TIMER].
Setting the countdown timer
1) Press as to select [P-TIMER].
2)  Press the...

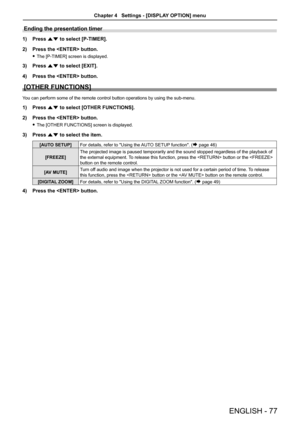

Ending the presentation timer
1) Press as to select [P-TIMER].
2)  Press the  button.

f The [P-TIMER] screen is displayed.
3)  Press as to select [EXIT].
4)  Press the  button.
[OTHER FUNCTIONS]
You can perform some of the remote control button operations by using the sub-menu.
1) Press as to select [OTHER FUNCTIONS].
2)  Press the  button.

f The [OTHER FUNCTIONS] screen is displayed.
3)  Press as to select the item.
[AUTO SETUP]
For details, refer to "Using the AUTO SETUP function". (Æ page...

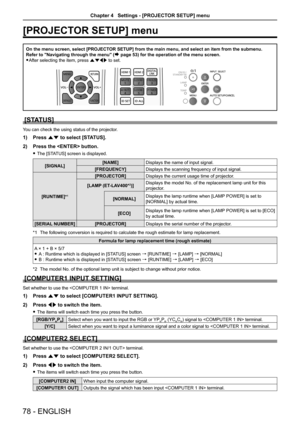

[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (
Æ page 53) for the operation of the menu screen.

f After selecting the item, press asqw to set.
[STATUS]
You can check the using status of the projector.
1)  Press as to select [STATUS].
2)  Press the  button.

f The [STATUS] screen is displayed.
[SIGNAL] [NAME]
Displays the name of input signal.
[FREQUENCY] Displays the scanning...

Note

f The [COMPUTER2 SELECT] will be unavailable when [COMPUTER2] is selected as input source.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when mu\
ltiple projectors are used side by side to enable
simultaneous control or individual control via a single remote control.
1)  Press as to select [PROJECTOR ID].
2)  Press the  button.

f The [PROJECTOR ID] screen is displayed.
3)  Press as to select a projector ID.

f To select one item among [ALL] and [1] ~ [6]....

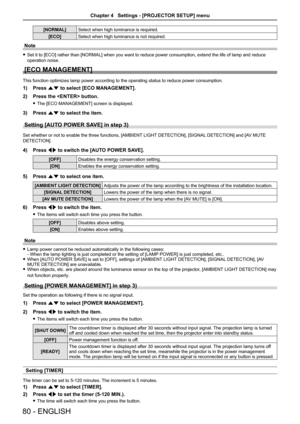

[NORMAL]Select when high luminance is required.
[ECO] Select when high luminance is not required.
Note

f Set it to [ECO] rather than [NORMAL] when you want to reduce power consumption, extend the life of lamp and reduce
operation noise.
[ECO MANAGEMENT]
This function optimizes lamp power according to the operating status to reduce power consumption.
1)  Press as to select [ECO MANAGEMENT].
2)  Press the  button.

f The [ECO MANAGEMENT] screen is displayed.
3)  Press as to select the item.
Setting...
