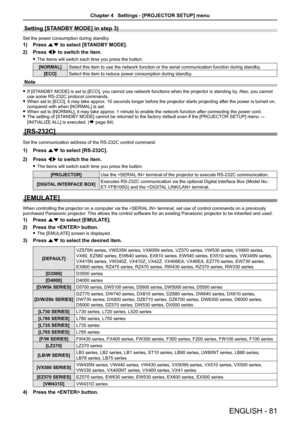

Setting [STANDBY MODE] in step 3)
Set the power consumption during standby.
1) Press as to select [STANDBY MODE].
2)  Press qw to switch the item.

f The items will switch each time you press the button.
[NORMAL] Select this item to use the network function or the serial communication\
 function during standby.
[ECO] Select this item to reduce power consumption during standby.
Note

f If [STANDBY MODE] is set to [ECO], you cannot use network functions when the projector is standing by. Also, you...

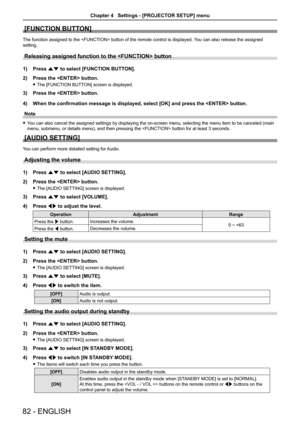

[FUNCTION BUTTON]
The function assigned to the  button of the remote control is displayed. You can also release the assigned
setting.
Releasing assigned function to the  button
1)  Press as to select [FUNCTION BUTTON].
2)  Press the  button.

f The [FUNCTION BUTTON] screen is displayed.
3)  Press the  button.
4)  When the confirmation message is displayed, select [OK] and press the  button.
Note

f You can also cancel the assigned settings by displaying the on-screen menu, selecting the menu item to...

Note

f When [ECO MANAGEMENT] → [STANDBY MODE] is set to [ECO] ( x page 81), even if [IN STANDBY MODE] is set to
[ON], audio cannot be output during standby.
Setting audio input selection
Choose the audio input terminal for each input signal.
1)  Press as to select [AUDIO SETTING].
2)  Press the  button.

f The [AUDIO SETTING] screen is displayed.
3)  Press as to select one item of [AUDIO IN SELECT].
[COMPUTER1] Set the audio output when [COMPUTER1] input is selected.
[COMPUTER2] Set the audio output...

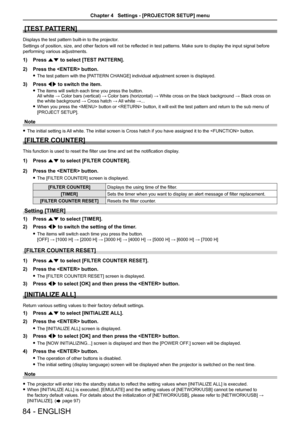

[TEST PATTERN]
Displays the test pattern built-in to the projector.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input signal before
performing various adjustments.
1) Press as to select [TEST PATTERN].
2)  Press the  button.

f The test pattern with the [PATTERN CHANGE] individual adjustment screen is displayed.
3)  Press qw to switch the item.

f The items will switch each time you press the button.
All white → Color bars (vertical)...

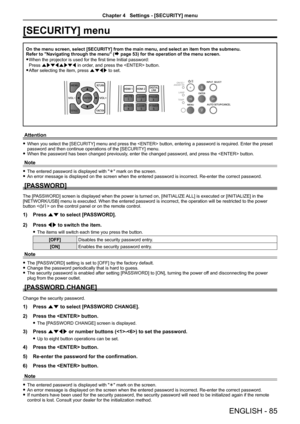

[SECURITY] menu
On the menu screen, select [SECURITY] from the main menu, and select an \
item from the submenu.
Refer to "Navigating through the menu" (Æ page 53) for the operation of the menu screen.

f   When the projector is used for the first time Initial password:
Press awsqawsq in order, and press the  button.

f After selecting the item, press asqw to set.
Attention

f When you select the [SECURITY] menu and press the  button, entering a password is required. Enter the preset...

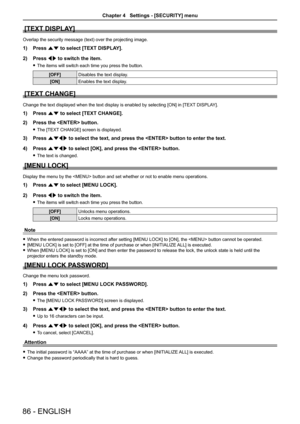

[TEXT DISPLAY]
Overlap the security message (text) over the projecting image.
1) Press as to select [TEXT DISPLAY].
2)  Press qw to switch the item.

f The items will switch each time you press the button.
[OFF] Disables the text display.
[ON] Enables the text display.
[TEXT CHANGE]
Change the text displayed when the text display is enabled by selecting [ON] in [TEXT  DISPLAY].
1) Press as to select [TEXT CHANGE].
2)  Press the  button.

f The [TEXT CHANGE] screen is displayed.
3)  Press asqw  to...

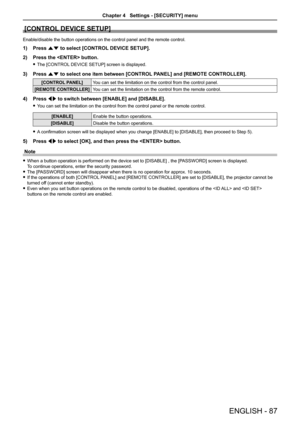

[CONTROL DEVICE SETUP]
Enable/disable the button operations on the control panel and the remote control.
1) Press as to select [CONTROL DEVICE SETUP].
2)  Press the  button.

f The [CONTROL DEVICE SETUP] screen is displayed.
3)  Press as to select one item between [CONTROL PANEL] and [REMOTE CONTROLLER].
[CONTROL PANEL] You can set the limitation on the control from the control panel.
[REMOTE CONTROLLER] You can set the limitation on the control from the remote control.
4) Press qw to switch between...

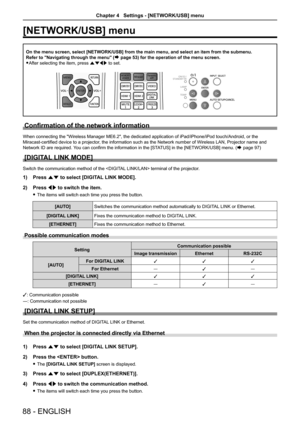

[NETWORK/USB] menu
On the menu screen, select [NETWORK/USB] from the main menu, and select \
an item from the submenu.
Refer to "Navigating through the menu" (
Æ page 53) for the operation of the menu screen.

f After selecting the item, press asqw to set.
Confirmation of the network information
When connecting the "Wireless Manager ME6.2", the dedicated application of iPad/iPhone/iPod touch/Android, or the
Miracast-certified device to a projector, the information such as the Network...

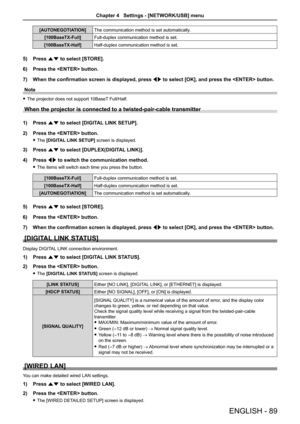

[AUTONEGOTIATION]The communication method is set automatically.
[100BaseTX-Full] Full-duplex communication method is set.
[100BaseTX-Half] Half-duplex communication method is set.
5) Press as to select [STORE].
6)  Press the  button.
7)  When the confirmation screen is displayed, press  qw to select [OK], and press the  button.
Note

f The projector does not support 10BaseT Full/Half.
When the projector is connected to a twisted-pair-cable transmitter
1)  Press as to select [DIGITAL LINK SETUP].
2)...

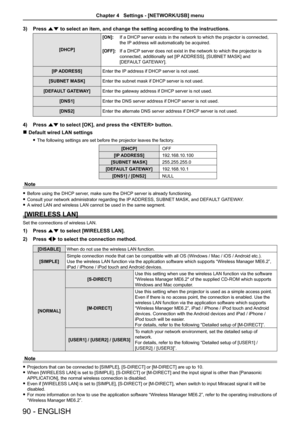

3) Press as to select an item, and change the setting according to the instructions\
.
[DHCP]  [ON]:
If a DHCP server exists in the network to which the projector is connected,
the IP address will automatically be acquired.
[OFF]: If a DHCP server does not exist in the network to which the projector is
connected, additionally set [IP ADDRESS], [SUBNET MASK] and
[DEFAULT GATEWAY].
[IP ADDRESS]  Enter the IP address if DHCP server is not used.
[SUBNET MASK] Enter the subnet mask if DHCP server is not...
