[Change password]
User name for [Administrator]l―111
User name for [User]l―111
Password for [Administrator]l―111
Password for [User]ll111
[Crestron Connected(TM)]
Operationl―11 2
[Tools]l―11 3
[Info]l―11 3
[Help]l―11 4
*1 The functions with l marks in the columns of administrator rights/user rights indicate that the operation can be performed
by each right.
Description of each item
1
2
3
4
5
6

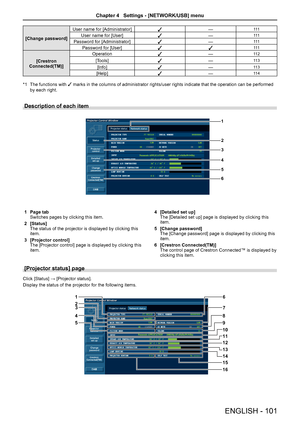

1 Page tabSwitches pages by clicking this item.
2 [Status]The status of the projector is displayed by clicking...

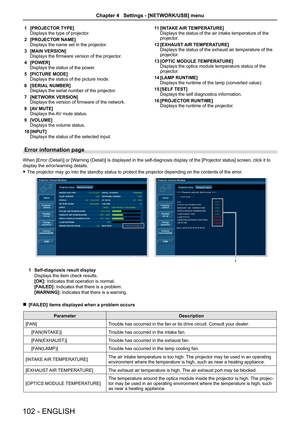

1 [PROJECTOR TYPE]Displays the type of projector.
2 [PROJECTOR NAME]Displays the name set in the projector.
3 [MAIN VERSION]Displays the firmware version of the projector.
4 [POWER]Displays the status of the power.
5 [PICTURE MODE]Displays the status of the picture mode.
6 [SERIAL NUMBER]Displays the serial number of the projector.
7 [NETWORK VERSION]Displays the version of firmware of the network.
8 [AV MUTE]Displays the AV mute status.
9 [VOLUME]Displays the volume status.
10 [INPUT]Displays the status...

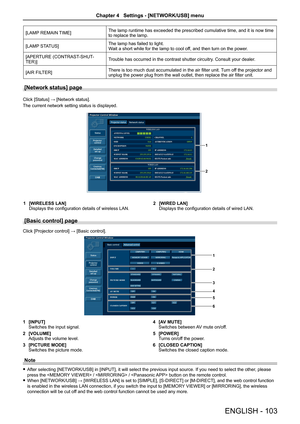

[LAMP REMAIN TIME]The lamp runtime has exceeded the prescribed cumulative time, and it is now time to replace the lamp.
[LAMP STATUS]The lamp has failed to light.Wait a short while for the lamp to cool off, and then turn on the power.
[APERTURE (CONTRAST-SHUT-TER)]Trouble has occurred in the contrast shutter circuitry. Consult your dealer.
[AIR FILTER]There is too much dust accumulated in the air filter unit. Turn off the projector and unplug the power plug from the wall outlet, then replace the air...

[Advanced control] page
Click [Projector control] → [Advanced control].
1
2

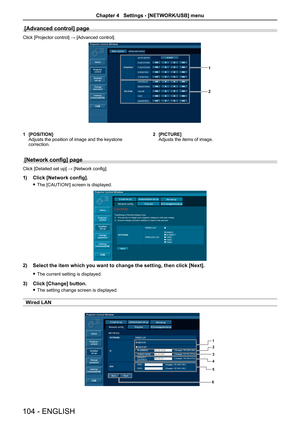

1 [POSITION]Adjusts the position of image and the keystone correction.
2 [PICTURE]Adjusts the items of image.
[Network config] page
Click [Detailed set up] → [Network config].
1) Click [Network config].
 fThe [CAUTION!] screen is displayed.
2)  Select the item which you want to change the setting, then click [Next].
 fThe current setting is displayed.
3) Click [Change] button.
 fThe setting change screen is displayed.
Wired LAN...

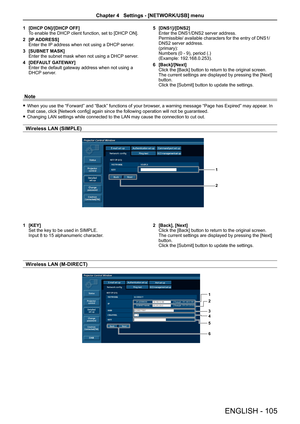

1 [DHCP ON]/[DHCP OFF]To enable the DHCP client function, set to [DHCP ON].
2 [IP ADDRESS]Enter the IP address when not using a DHCP server.
3 [SUBNET MASK]Enter the subnet mask when not using a DHCP server.
4 [DEFAULT GATEWAY]Enter the default gateway address when not using a DHCP server.
5 [DNS1]/[DNS2]Enter the DNS1/DNS2 server address.Permissible/ available characters for the entry of DNS1/DNS2 server address.(primary):Numbers (0 - 9), period (.)(Example: 192.168.0.253).
6 [Back]/[Next]Click the...

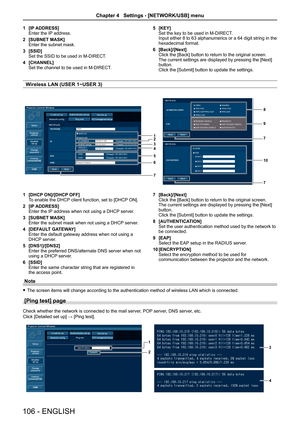

1 [IP ADDRESS]Enter the IP address.
2 [SUBNET MASK]Enter the subnet mask.
3 [SSID]Set the SSID to be used in M-DIRECT.
4 [CHANNEL]Set the channel to be used in M-DIRECT.
5 [KEY]Set the key to be used in M-DIRECT.Input either 8 to 63 alphanumerics or a 64 digit string in the hexadecimal format.
6 [Back]/[Next]Click the [Back] button to return to the original screen. The current settings are displayed by pressing the [Next] button.Click the [Submit] button to update the settings.
Wireless LAN (USER 1~USER...

1 [Input IP address]Enter the IP address of the server to be tested.
2 [Submit]Executes the connection test.
3 Example of display when the connection has succeeded
4 Example of display when the connection has failed
[E-mail set up] page
When there is a problem or the runtime of a lamp reaches a set value, an E-mail can be sent to preset E-mail addresses (up
to two addresses).
Click [Detailed set up] → [E-mail set up].
1
2
3
4
5
6

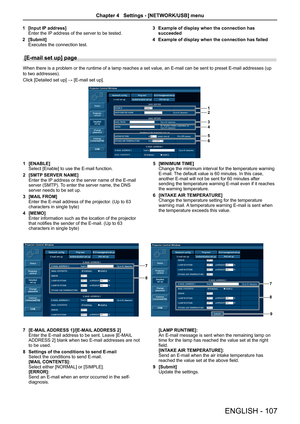

1 [ENABLE]Select [Enable] to use the E-mail function.
2 [SMTP SERVER...

[Authentication set up] page
Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail.
Click [Detailed set up] → [Authentication set up].
1
2
3
4
5
6
78

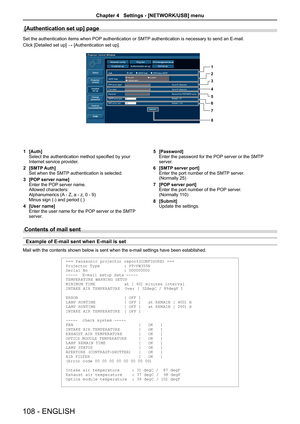

1 [Auth]Select the authentication method specified by your Internet service provider.
2 [SMTP Auth]Set when the SMTP authentication is selected.
3 [POP server name]Enter the POP server name.Allowed characters:Alphanumerics (A - Z, a - z, 0 - 9)Minus sign (-) and period (.)
4 [User name]Enter the user...

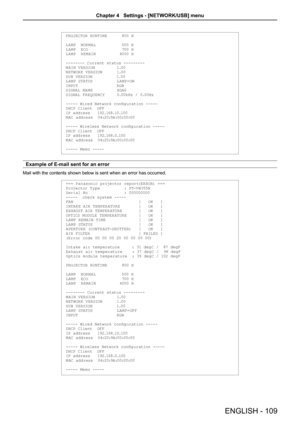

PROJECTOR RUNTIME      800 H
LA MP  NOR M AL
           500 H
LA MP  ECO              700 H
LA MP  REM AIN
          4000 H
-------- Current status ---------
M AIN VERSION         1.00
NETWORK VERSION      1.00
SUB VERSION          1.00
LA MP STATUS          LA MP=ON
INPUT                RGB
SIGNAL NA ME          XGA6
SIGNAL FREQUENCY     0.00kHz / 0.00Hz
----- Wired Network con fig uration -----
DHCP Client  OFF
I P  a d d r e s s    19 2.16 8.10.10 0
M A C  a d d r e s s   04:20:9 A:0 0:0 0:0 0
-----...

[Port set up] page
Set the port number used for command control.
Click [Detailed set up] → [Port set up].
3
1
2

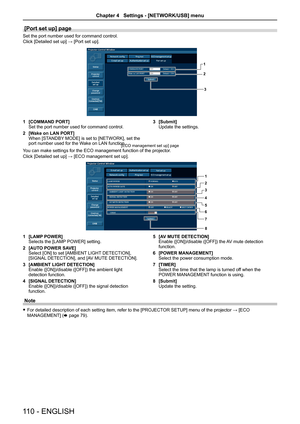

1 [COMMAND PORT]Set the port number used for command control.
2 [Wake on LAN PORT]When [STANDBY MODE] is set to [NETWORK], set the port number used for the Wake on LAN function.
3 [Submit]Update the settings.
[ECO management set up] pageYou can make settings for the ECO management function of the projector.
Click [Detailed set up] → [ECO management set up].
1
2
3
4
5
6
78
1 [LAMP POWER]Selects...
