Panasonic Projector PT-VX425N User Manual

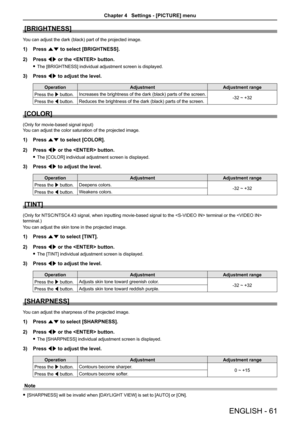

[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1) Press as to select [BRIGHTNESS].
2) Press qw or the  button.
 fThe [BRIGHTNESS] individual adjustment screen is displayed.
3) Press qw to adjust the level.
OperationAdjustmentAdjustment range
Press the w button.Increases the brightness of the dark (black) parts of the screen.-32 ~ +32Press the q button.Reduces the brightness of the dark (black) parts of the screen.
[COLOR]
(Only for movie-based signal input)
You can adjust the...

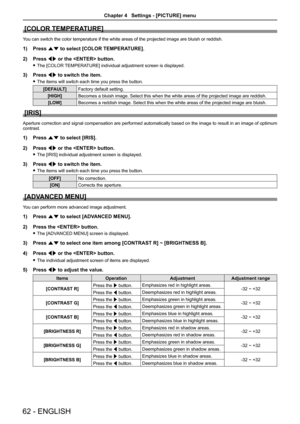

[COLOR TEMPERATURE]
You can switch the color temperature if the white areas of the projected image are bluish or reddish.
1) Press as to select [COLOR TEMPERATURE].
2) Press qw or the  button.
 fThe [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press qw to switch the item.
 fThe items will switch each time you press the button.
[DEFAULT]Factory default setting.
[HIGH]Becomes a bluish image. Select this when the white areas of the projecte\
d image are reddish.
[LOW]Becomes a reddish...

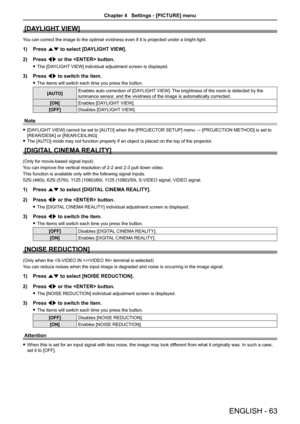

[DAYLIGHT VIEW]
You can correct the image to the optimal vividness even if it is projected under a bright light.
1) Press as to select [DAYLIGHT VIEW].
2) Press qw or the  button.
 fThe [DAYLIGHT VIEW] individual adjustment screen is displayed.
3) Press qw to switch the item.
 fThe items will switch each time you press the button.
[AUTO]Enables auto correction of [DAYLIGHT VIEW]. The brightness of the room is detected by the
luminance sensor, and the vividness of the image is automatically corrected....

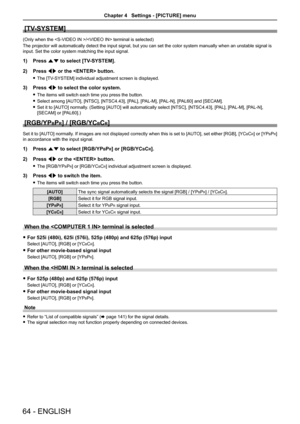

[TV-SYSTEM]
(Only when the / terminal is selected)
The projector will automatically detect the input signal, but you can se\
t the color system manually when an unstable signal is
input. Set the color system matching the input signal.
1) Press as to select [TV-SYSTEM].
2) Press qw or the  button.
 fThe [TV-SYSTEM] individual adjustment screen is displayed.
3) Press qw to select the color system.
 fThe items will switch each time you press the button.
 fSelect among [AUTO], [NTSC], [NTSC4.43], [PAL],...

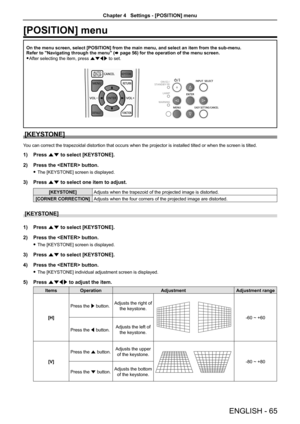

[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an \
item from the sub-menu.Refer to "Navigating through the menu" (x page 56) for the operation of the menu screen.
 fAfter selecting the item, press asqw to set.
[KEYSTONE]
You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press as to select [KEYSTONE].
2) Press the  button.
 fThe [KEYSTONE] screen is displayed.
3) Press as to select...

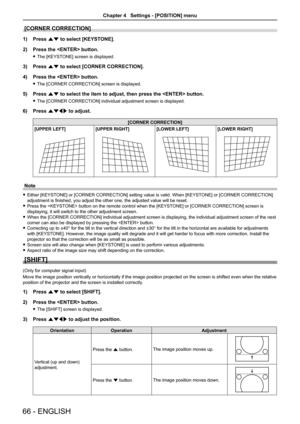

[CORNER CORRECTION]
1) Press as to select [KEYSTONE].
2) Press the  button.
 fThe [KEYSTONE] screen is displayed.
3) Press as to select [CORNER CORRECTION].
4) Press the  button.
 fThe [CORNER CORRECTION] screen is displayed.
5) Press as to select the item to adjust, then press the  button.
 fThe [CORNER CORRECTION] individual adjustment screen is displayed.
6) Press asqw to adjust.
[CORNER CORRECTION]
[UPPER LEFT][UPPER RIGHT][LOWER LEFT][LOWER RIGHT]
Note
 fEither [KEYSTONE] or [CORNER CORRECTION]...

Horizontal (right and left)
adjustment.
Press the w button.The image position moves to the
right.
Press the q button.The image position moves to the
left.
Note
 fDepending on the input signal, if the adjustment of [SHIFT] exceeds the effective adjustment range of the input signal, the
position of the image cannot be changed. Please adjust [SHIFT] within an ef fective adjustment range.

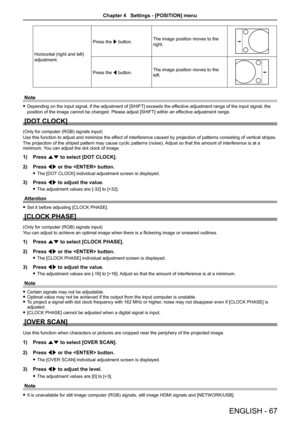

[DOT CLOCK]
(Only for computer (RGB) signals input)
Use this function to adjust and minimize the effect of...

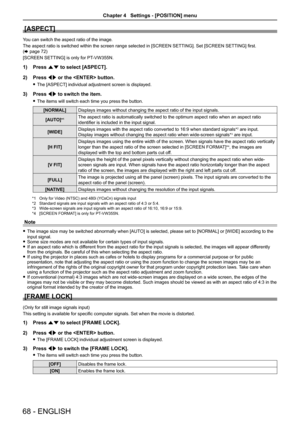

[ASPECT]
You can switch the aspect ratio of the image.
The aspect ratio is switched within the screen range selected in [SCREEN SETTING]. Set [SCREEN SETTING] first.
(x page 72)
[SCREEN SETTING] is only for PT-VW355N.
1) Press as to select [ASPECT].
2) Press qw or the  button.
 fThe [ASPECT] individual adjustment screen is displayed.
3) Press qw to switch the item.
 fThe items will switch each time you press the button.
[NORMAL]Displays images without changing the aspect ratio of the input signals....

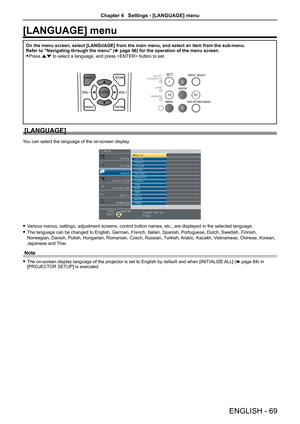

[LANGUAGE] menu
On the menu screen, select [LANGUAGE] from the main menu, and select an \
item from the sub-menu.Refer to "Navigating through the menu" (x page 56) for the operation of the menu screen.
 fPress as to select a language, and press  button to set.
[LANGUAGE]
You can select the language of the on-screen display.
 fVarious menus, settings, adjustment screens, control button names, etc., \
are displayed in the selected language.
 fThe language can be changed to English, German, French,...

[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-menu.Refer to "Navigating through the menu" (x page 56) for the operation of the menu screen.
 fAfter selecting the item, press asqw to set.
[ON-SCREEN DISPLAY]
Set the on-screen display and position.
[INPUT GUIDE]
Set whether to display the input guide when switching the input source.
1) Press as to select [ON-SCREEN DISPLAY].
2) Press the  button.
 fThe [ON-SCREEN DISPLAY]...
