Panasonic Pt D7700e Projector User Manual

11
ENGLISH

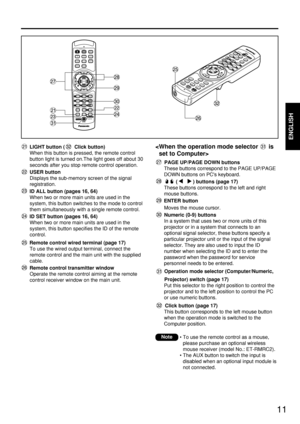

LIGHT button ( Click button)
When this button is pressed, the remote control
button light is turned on.The light goes off about 30
seconds after you stop remote control operation.
USER button
Displays the sub-memory screen of the signal
registration.
ID ALL button (pages 16, 64)
When two or more main units are used in the
system, this button switches to the mode to control
them simultaneously with a single remote control.
ID SET button (pages 16, 64)
When two or more main units are used in...

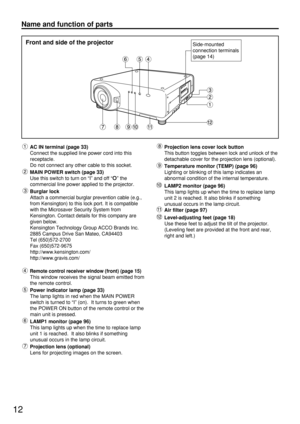

12
Side-mounted
connection terminals
(page 14)
AC IN terminal (page 33)
Connect the supplied line power cord into this
receptacle.
Do not connect any other cable to this socket.
MAIN POWER switch (page 33)
Use this switch to turn on “I” and off “
o” the
commercial line power applied to the projector.
Burglar lock
Attach a commercial burglar prevention cable (e.g.,
from Kensington) to this lock port. It is compatible
with the Microsaver Security System from
Kensington. Contact details for this company...

13
ENGLISH

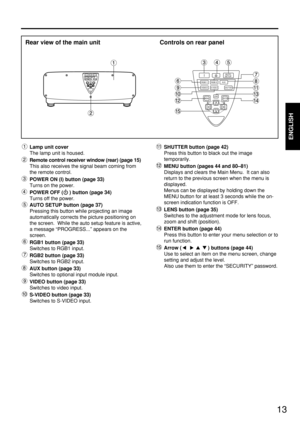

Lamp unit cover
The lamp unit is housed.
Remote control receiver window (rear) (page 15)
This also receives the signal beam coming from
the remote control.
POWER ON (I) button (page 33)
Turns on the power.
POWER OFF ( ) button (page 34)
Turns off the power.
AUTO SETUP button (page 37)
Pressing this button while projecting an image
automatically corrects the picture positioning on
the screen.  While the auto setup feature is active,
a message “PROGRESS...” appears on the
screen.
RGB1 button...

14

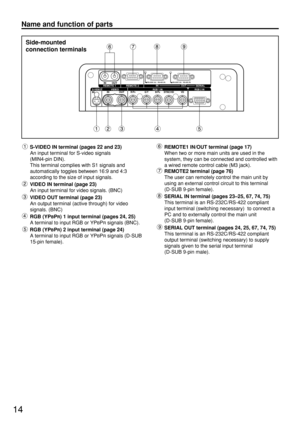

S-VIDEO IN terminal (pages 22 and 23)
An input terminal for S-video signals
(MIN4-pin DIN).
This terminal complies with S1 signals and
automatically toggles between 16:9 and 4:3
according to the size of input signals.
VIDEO IN terminal (page 23)
An input terminal for video signals. (BNC)
VIDEO OUT terminal (page 23)
An output terminal (active through) for video
signals. (BNC)
RGB (YP
BPR) 1 input terminal (pages 24, 25)
A terminal to input RGB or YP
BPRsignals (BNC).
RGB (YP
BPR) 2 input terminal...

ENGLISH
15

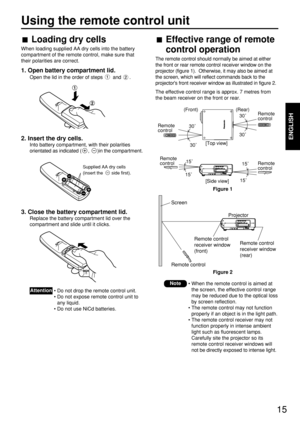

Loading dry cells
When loading supplied AA dry cells into the battery
compartment of the remote control, make sure that
their polarities are correct.
1. Open battery compartment lid.
Open the lid in the order of steps  and  .
2. Insert the dry cells.
Into battery compartment, with their polarities
orientated as indicated ( ,  )in the compartment.
3. Close the battery compartment lid.
Replace the battery compartment lid over the
compartment and slide until it clicks.
Effective range of remote...

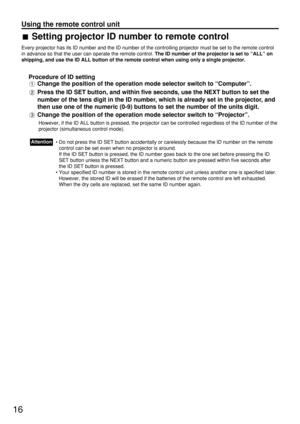

16
Every projector has its ID number and the ID number of the controlling projector must be set to the remote control
in advance so that the user can operate the remote control. The ID number of the projector is set to “ALL” on
shipping, and use the ID ALL button of the remote control when using only a single projector.
Procedure of ID setting
Change the position of the operation mode selector switch to “Computer”.
Press the ID SET button, and within five seconds, use the NEXT button to set the
number...

17
ENGLISH

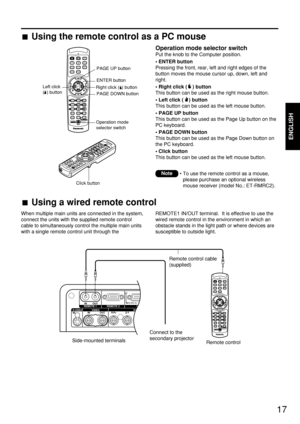

Using the remote control as a PC mouse
Operation mode selector switch
Put the knob to the Computer position.
• ENTER button
Pressing the front, rear, left and right edges of the
button moves the mouse cursor up, down, left and
right.
• Right click ( ) button
This button can be used as the right mouse button.
• Left click ( ) button
This button can be used as the left mouse button.
• PAGE UP button
This button can be used as the Page Up button on the
PC keyboard.
• PAGE DOWN button
This button...

18

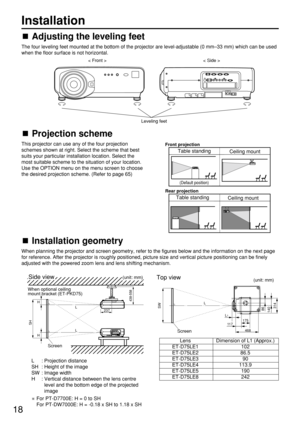

Projection scheme
This projector can use any of the four projection
schemes shown at right. Select the scheme that best
suits your particular installation location. Select the
most suitable scheme to the situation of your location.
Use the OPTION menu on the menu screen to choose
the desired projection scheme. (Refer to page 65)
Installation
Adjusting the leveling feet
The four leveling feet mounted at the bottom of the projector are level-adjustable (0 mm–33 mm) which can be used
when the floor...

ENGLISH
19

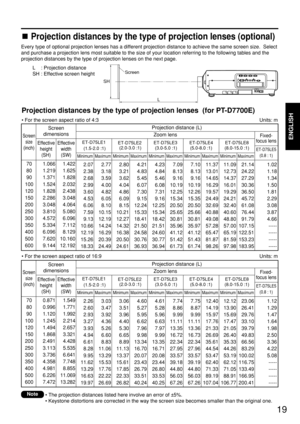

L    : Projection distance
SH : Effective screen height
Projection distances by the type of projection lenses  (for PT-D7700E)
• For the screen aspect ratio of 4:3 Units: m
• The projection distances listed here involve an error of ±5%.
• Keystone distortions are corrected in the way the screen size becomes smaller than the original one.
Projection distances by the type of projection lenses (optional)
Every type of optional projection lenses has a different projection distance to achieve the...

20
• The projection distances listed here involve an error of ±5%.
• Keystone distortions are corrected in the way the screen size becomes smaller than the original one.
Installation
Note

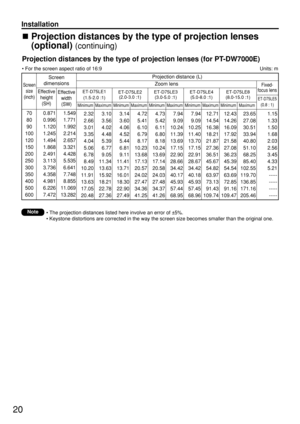

Projection distances by the type of projection lenses (for PT-DW7000E)
• For the screen aspect ratio of 16:9 Units: m
Screen
size
(inch)
Screen
dimensions
70
80
90
100
120
150
200
250
300
350
400
500
6000.871
0.996
1.120
1.245
1.494
1.868
2.491
3.113
3.736
4.358
4.981
6.226
7.4721.549
1.771
1.992
2.214
2.657
3.321...
