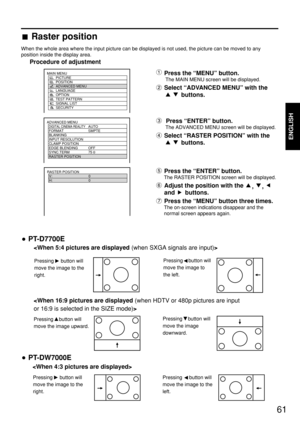

Page 61
61
ENGLISH
ADVANCED MENU
DIGITAL CINEMA REALITYAUTO
FORMAT SMPTE
BLANKING
INPUT RESOLUTION
CLAMP POSITION
EDGE BLENDING OFF
SYNC.TERM 75
RASTER POSITION
RASTER POSITION
V: 0
H: 0
MAIN MENU
POSITION
ADVANCED MENU
LANGUAGE
OPTION
TEST PATTERN
SIGNAL LIST
SECURITY
Raster position
When the whole area where the input picture can be displayed is not used, the picture can be moved to any
position inside the...

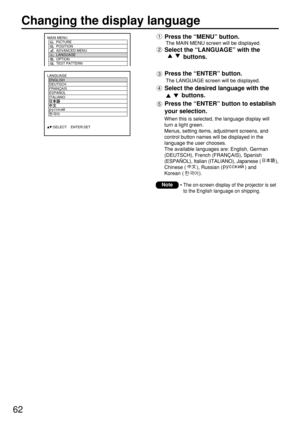

Page 62
62
Changing the display language
• The on-screen display of the projector is set
to the English language on shipping.Note
Press the “MENU” button.
The MAIN MENU screen will be displayed.
Select the “LANGUAGE” with the
buttons.
LANGUAGE
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
:SELECT ENTER:SET
MAIN MENU
POSITION
ADVANCED MENU
LANGUAGE
OPTION
TEST PATTERN
Press the “ENTER” button.
The LANGUAGE screen will be displayed....

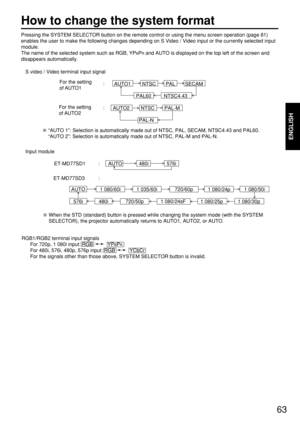

Page 63
ENGLISH
63
How to change the system format
Pressing the SYSTEM SELECTOR button on the remote control or using the menu screen operation (page 81)
enables the user to make the following changes depending on S Video / Video input or the currently selected input
module.
The name of the selected system such as RGB, YP
BPRand AUTO is displayed on the top left of the screen and
disappears automatically.
Input module
ET-MD77SD1 :
AUTO 480i 576i
ET-MD77SD3 : S...

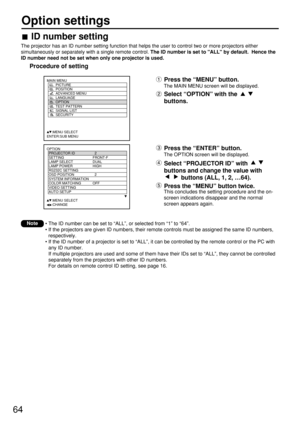

Page 64
64
Option settings
OPTION
PROJECTOR ID 2
SETTING FRONT-F
LAMP SELECT DUAL
LAMP POWER HIGH
RS232C SETTING
OSD POSITION 2
SYSTEM INFORMATION
COLOR MATCHING OFF
VIDEO SETTING
AUTO SETUP
:MENU SELECT
:CHANGE
MAIN MENU
POSITION
ADVANCED MENU
LANGUAGE
OPTION
TEST PATTERN
SIGNAL LIST
SECURITY
:MENU SELECT
ENTER:SUB MENU
Press the “ENTER” button.
The OPTION screen will be displayed.
Select...

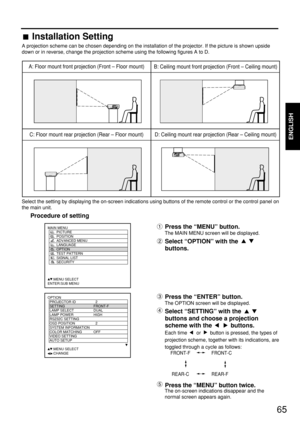

Page 65
65 ENGLISH A: Floor mount front projection (Front – Floor mount) D: Ceiling mount rear projection (Rear – Ceiling mount) C: Floor mount rear projection (Rear – Floor mount)B: Ceiling mount front projection (Front – Ceiling mount) Select the setting by displaying the on-screen indications using buttons of the remote control or the control panel on the main unit. Procedure of setting OPTION PROJECTOR ID 2 SETTING FRONT-F LAMP SELECT DUAL LAMP POWER HIGH RS232C SETTING OSD POSITION 2 SYSTEM...

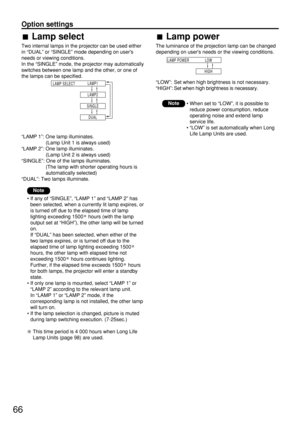

Page 66
66 Option settings Lamp select Two internal lamps in the projector can be used either in “DUAL” or “SINGLE” mode depending on users needs or viewing conditions. In the “SINGLE” mode, the projector may automatically switches between one lamp and the other, or one of the lamps can be specified. “LAMP 1”: One lamp illuminates. (Lamp Unit 1 is always used) “LAMP 2”: One lamp illuminates. (Lamp Unit 2 is always used) “SINGLE”: One of the lamps illuminates. (The lamp with shorter operating hours is...

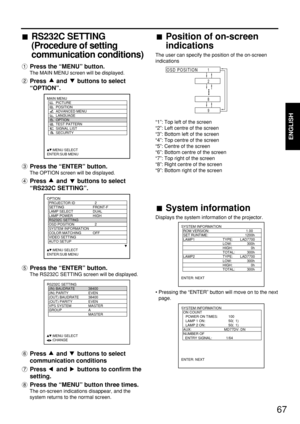

Page 67
67 ENGLISH Position of on-screen indications The user can specify the position of the on-screen indications “1”: Top left of the screen “2”: Left centre of the screen “3”: Bottom left of the screen “4”: Top centre of the screen “5”: Centre of the screen “6”: Bottom centre of the screen “7”: Top right of the screen “8”: Right centre of the screen “9”: Bottom right of the screen OSD POSITION1 2 8 9 System information Displays the system information of the projector. • Pressing the “ENTER” button will move...

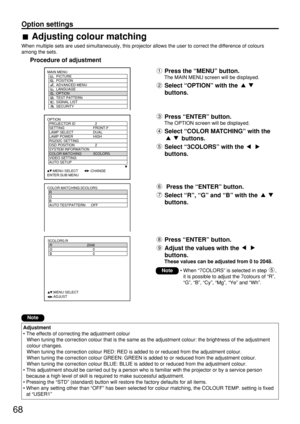

Page 68
68
Option settings
Adjusting colour matching
When multiple sets are used simultaneously, this projector allows the user to correct the difference of colours
among the sets.
Procedure of adjustment
OPTION
PROJECTOR ID 2
SETTING FRONT-F
LAMP SELECT DUAL
LAMP POWER HIGH
RS232C SETTING
OSD POSITION 2
SYSTEM INFORMATION
COLOR MATCHING 3COLORS
VIDEO SETTING
AUTO SETUP
:MENU SELECT :CHANGE
ENTER:SUB MENU
Press the “MENU” button.
The MAIN MENU screen will be displayed.
Select...

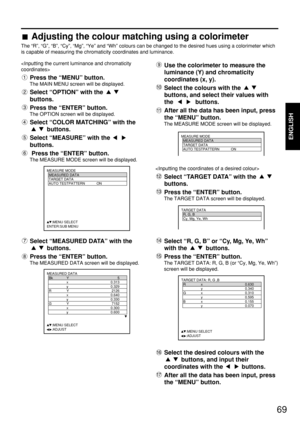

Page 69
69
ENGLISH
MEASURE MODE
MEASURED DATA
TARGET DATA
AUTO TESTPATTERN ON
:MENU SELECT
ENTER:SUB MENU
MEASURE MODE
MEASURED DATA
TARGET DATA
AUTO TESTPATTERN ON
MEASURE MODE
MEASURED DATA
TARGET DATA
AUTO TESTPATTERN ON
TARGET DATA
R, G, B
Cy, Mg, Ye, Wh
TARGET DATA: R, G ,B
R x 0.630
y 0.340
G x 0.310
y 0.595
B x 0.155
y 0.070
:MENU SELECT
:ADJUST
MEASURED DATA
Bk Y 5
x 0.313
y 0.329
R Y 2126
x 0.640
y...

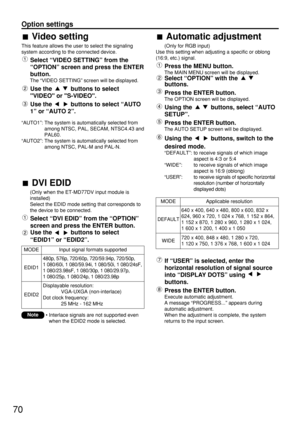

Page 70
70 Automatic adjustment (Only for RGB input) Use this setting when adjusting a specific or oblong (16:9, etc.) signal. Press the MENU button. The MAIN MENU screen will be displayed. Select “OPTION” with the buttons. Press the ENTER button. The OPTION screen will be displayed. Using the buttons, select “AUTO SETUP”. Press the ENTER button. The AUTO SETUP screen will be displayed. Using the buttons, switch to the desired mode. “DEFAULT”: to receive signals of which image aspect is 4:3 or 5:4 “WIDE”: to...
