ENGLISH –51
Basic Operation

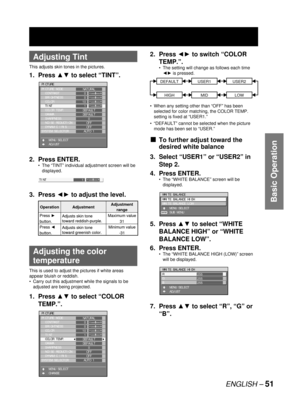

Adjusting Tint
This adjusts skin tones in the pictures.
1. Press
x
z to select “TINT”.
2. Press ENTER.
The “TINT” individual adjustment screen will be
displayed.
3. Press
{
y to adjust the level.
Adjusting the color
temperature
This is used to adjust the pictures if white areas
appear bluish or reddish.
Carry out this adjustment while the signals to be
adjusted are being projected.
1. Press
x
z to select “COLOR
TEMP.”.
•
•
PICTURE MODE
CONTRAST
BRIGHTNESS...

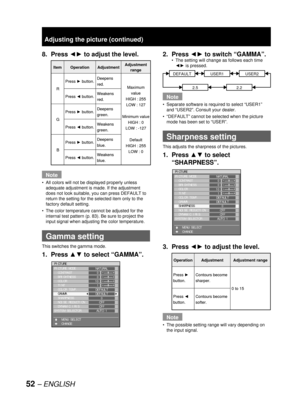

52– ENGLISH
8. Press
{
y to adjust the level.
Note
All colors will not be displayed properly unless
adequate adjustment is made. If the adjustment
does not look suitable, you can press DEFAULT to
return the setting for the selected item only to the
factory default setting.
The color temperature cannot be adjusted for the
internal test pattern (
p. 83). Be sure to project the
input signal when adjusting the color temperature.
Gamma setting
This switches the gamma mode.
1. Press
x
z to select...

ENGLISH –53
Basic Operation
Noise reduction setting
This can be used to adjust pictures if they contain
interference as a result of poor quality of the input
signal.
1. Press
x
z to select “NOISE
REDUCTION”.
2. Press
{
y to switch “NOISE
REDUCTION”.
The setting will change as follows each time

{
y is pressed.
Dynamic iris setting
Pictures with the optimum contrast will be displayed
by automatically providing aperture compensation and
signal compensation to suit the pictures concerned.
1. Press...

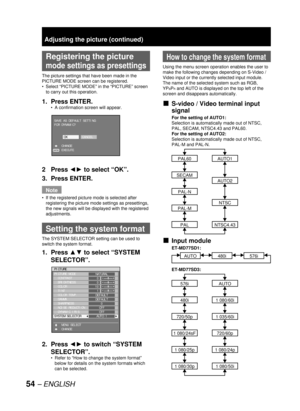

54– ENGLISH
Registering the picture
mode settings as presettings
The picture settings that have been made in the
PICTURE MODE screen can be registered.
Select “PICTURE MODE” in the “PICTURE” screen
to carry out this operation.
1. Press ENTER.
A confirmation screen will appear.
2 Press
{
y to select “OK”.
3. Press ENTER.
Note
If the registered picture mode is selected after
registering the picture mode settings as presettings,
the new signals will be displayed with the registered
adjustments....

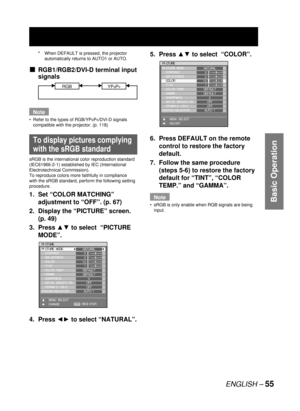

ENGLISH –55
Basic Operation
5. Press
x
z to select  “COLOR”.
6.  Press DEFAULT on the remote
control to restore the factory
default.
7.  Follow the same procedure
(steps 5-6) to restore the factory
default for “TINT”, “COLOR
TEMP.” and “GAMMA”.
Note
sRGB is only enable when RGB signals are being
input. •
PICTURE MODE
CONTRAST
BRIGHTNESS
  COLOR
TINT
COLOR TEMP.
GAMMA
SHARPNESS
NOISE REDUCTION
DYNAMIC IRIS
SYSTEM SELECTOR
MENU SELECT
ADJUSTNATURAL
0
0
10
1
DEFAULT
DEFAULT
0
OFF
OFF
AUTO...

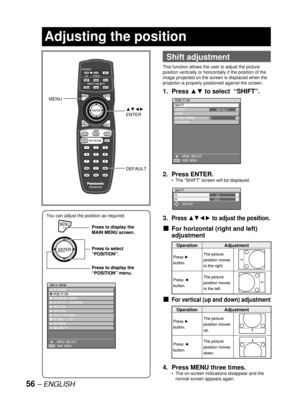

56– ENGLISH
You can adjust the position as required.
MENUPress to display the
MAIN MENU screen.
Press to select
“POSITION”.
Press to display the
“POSITION” menu.
MENUPress to display the
MAIN MENU screen.
Press to select
“POSITION”.
Press to display the
“POSITION” menu.
MAIN MENU
POSITION
  ADVANCED MENU
  DISPLAY LANGUAGE
  OPTION1
  OPTION2
  TEST PATTERN
SIGNAL LIST
  NETWORK
  SECURITY
    MENU SELECT
    SUB MENU
ENTER
MAIN MENU
POSITION
  ADVANCED MENU
  DISPLAY LANGUAGE...

ENGLISH –57
Basic Operation

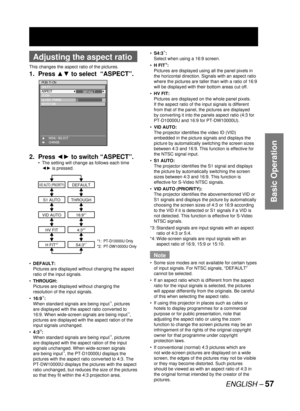

Adjusting the aspect ratio
This changes the aspect ratio of the pictures.
1. Press
x
z to select  “ASPECT”.
2. Press
{
y to switch “ASPECT”.
The setting will change as follows each time

{
y is pressed.
DEFAULT:
Pictures are displayed without changing the aspect
ratio of the input signals.
THROUGH:
Pictures are displayed without changing the
resolution of the input signals.
16:9
*1:
When standard signals are being input*3, pictures
are displayed with the aspect ratio...

58– ENGLISH

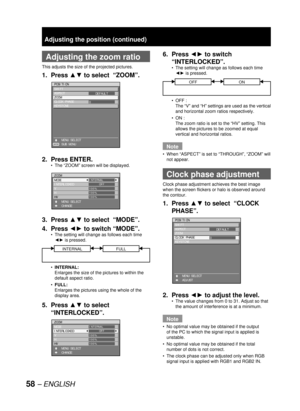

Adjusting the zoom ratio
