ENGLISH –81
Special Features
Note
The air filter cleaning monitor (FILTER CLEANING)
will flash blue while cleaning of the air filter is in
progress. If there is a problem with the air filter, the
air filter cleaning monitor (FILTER CLEANING) will
light red.
The time taken for cleaning is approximately 30 to
40 seconds.
The setting time will be the local time. 	p. 81

Automatic cleaning will not be carried out if the
projector is in standby mode.
If the projector is not in projection mode when the...

82– ENGLISH
Option2 settings (continued)

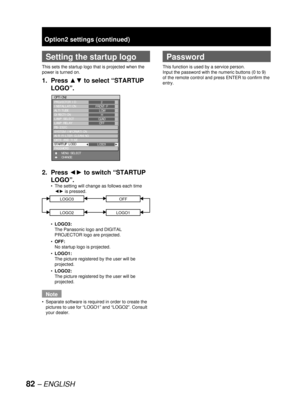

Setting the startup logo
This sets the startup logo that is projected when the
power is turned on.
1. Press
x
z to select “STARTUP
LOGO”.
2. Press
{
y to switch “STARTUP
LOGO”.
The setting will change as follows each time

{
y is pressed.
LOGO3OFF
LOGO2LOGO1
LOGO3:
The Panasonic logo and DIGITAL
PROJECTOR logo are projected.
OFF:
No startup logo is projected.
LOGO1:
The picture registered by the user will be
projected.
LOGO2:
The picture registered by...

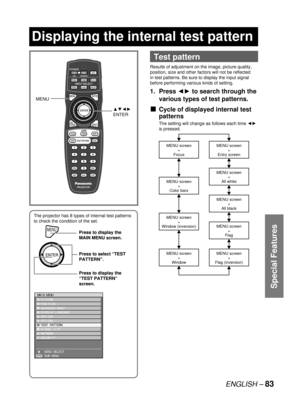

ENGLISH –83
Special Features
The projector has 8 types of internal test patterns
to check the condition of the set.
MENUPress to display the
MAIN MENU screen.
Press to select “TEST
PATTERN”.
Press to display the
“TEST PATTERN”
screen.
MENUPress to display the
MAIN MENU screen.
Press to select “TEST
PATTERN”.
Press to display the
“TEST PATTERN”
screen.
MAIN MENU
  POSITION
  ADVANCED MENU
  DISPLAY LANGUAGE
  OPTION1
  OPTION2
TEST PATTERN
SIGNAL LIST
  NETWORK
  SECURITY
    MENU...

84– ENGLISH

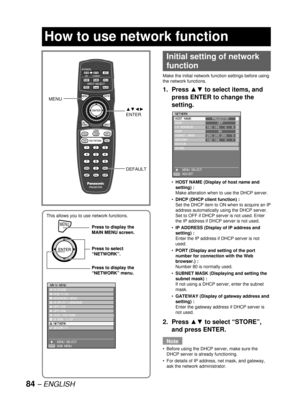

This allows you to use network functions.
MENUPress to display the
MAIN MENU screen.
Press to select
“NETWORK”.
Press to display the
“NETWORK” menu.
MENUPress to display the
MAIN MENU screen.
Press to select
“NETWORK”.
Press to display the
“NETWORK” menu.
MAIN MENU
  POSITION
  ADVANCED MENU
  DISPLAY LANGUAGE
  OPTION1
  OPTION2
  TEST PATTERN
SIGNAL LIST
NETWORK
  SECURITY
    MENU SELECT
    SUB MENU
ENTER
MAIN MENU
  POSITION
  ADVANCED MENU
  DISPLAY LANGUAGE...

ENGLISH –85
Special Features

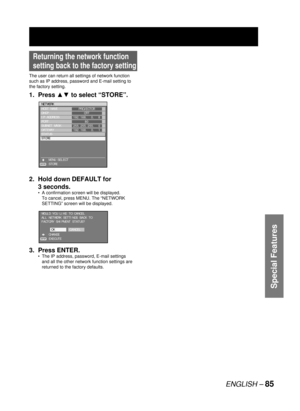

Returning the network function
setting back to the factory setting
The user can return all settings of network function
such as IP address, password and E-mail setting to
the factory setting.
1. Press
x
z to select “STORE”.
2.  Hold down DEFAULT for
3 seconds.
A confirmation screen will be displayed.
To cancel, press MENU. The “NETWORK
SETTING” screen will be displayed.
3. Press ENTER.
The IP address, password, E-mail settings
and all the other network function...

86– ENGLISH

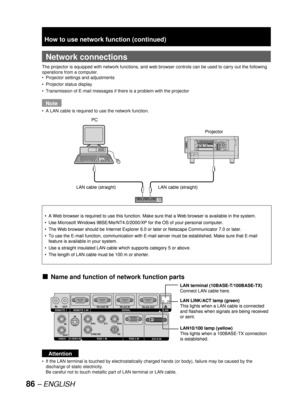

Network connections
The projector is equipped with network functions, and web browser controls can be used to carry out the following
operations from a computer.
Projector settings and adjustments
Projector status display
Transmission of E-mail messages if there is a problem with the projector
Note
A LAN cable is required to use the network function.
Name and function of network function parts
Attention
If the LAN terminal is touched by electrostatically charged hands (or body), failure may...

ENGLISH –87
Special Features

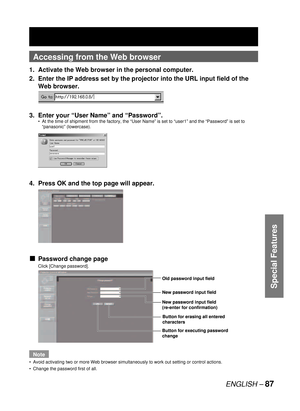

Accessing from the Web browser
1.  Activate the Web browser in the personal computer.
2.  Enter the IP address set by the projector into the URL input field of the
Web browser.
3.  Enter your “User Name” and “Password”.
At the time of shipment from the factory, the “User Name” is set to “user1” and the “Password” is set to
“panasonic” (lowercase).
4.  Press OK and the top page will appear.
Password change page
Click [Change password].
Note
Avoid activating two or more Web...

88– ENGLISH
Basic control page
This page is the first page displayed when the projector is accessed through a web browser.
To move from another page, click [Projector control], then [Basic control].

v
Control button
Click this item, and a projector
control page appears.
Update button
Click this item, and the update page
of the projector’s firmware appears.
E-mail set up button
Click this item, and an E-mail setting
page appears. Monitor information button
Click this item, and the status of the...

ENGLISH –89
Special Features
Detail control page
Click [Projector control], then [Detail control] to display the Detail control page.
Monitor information page
Click [Projector control], then [Status information] to display the Status information page.
This page displays the projector statuses established for the items shown below.

v

v
On-screen status is displayed, even
if the on-screen of projector is set to
off.
Lens adjustment
Menu display Test pattern display
This button updates the on-screen...

90– ENGLISH

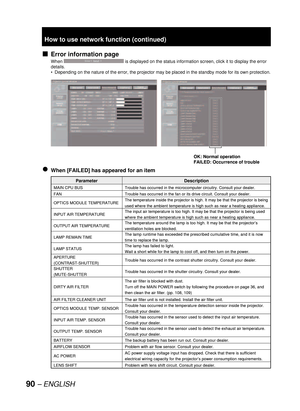

Error information page
When is displayed on the status information screen, click it to display the error
details.
Depending on the nature of the error, the projector may be placed in the standby mode for its own protection.
When [FAILED] has appeared for an item

v
•

”
OK: Normal operation
FAILED: Occurrence of troubleOK: Normal operation
FAILED: Occurrence of trouble
Parameter Description
MAIN CPU BUS Trouble has occurred in the microcomputer circuitry. Consult your dealer.
FAN Trouble has...
