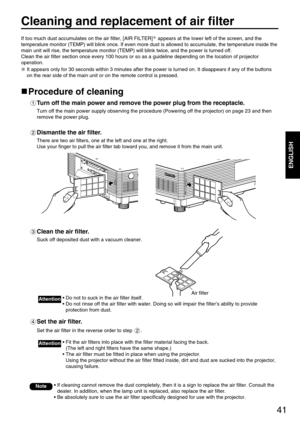

Cleaning and replacement of air filter
If too much dust accumulates on the air filter, [AIR FILTER] appears at the lower left of the screen, and the
temperature monitor (TEMP) will blink once. If even more dust is allowed to accumulate, the temperature inside the
main unit will rise, the temperature monitor (TEMP) will blink twice, and the power is turned off.
Clean the air filter section once every 100 hours or so as a guideline depending on the location of projector
operation.
It appears...](http://img.usermanuals.tech/thumb/58/94340/w300_panasonic-pt-dw5000ul-manual_d-40.png "Page 41
41
ENGLISH
Cleaning and replacement of air filter
If too much dust accumulates on the air filter, [AIR FILTER] appears at the lower left of the screen, and the
temperature monitor (TEMP) will blink once. If even more dust is allowed to accumulate, the temperature inside the
main unit will rise, the temperature monitor (TEMP) will blink twice, and the power is turned off.
Clean the air filter section once every 100 hours or so as a guideline depending on the location of projector
operation.
It appears...")
41 ENGLISH Cleaning and replacement of air filter If too much dust accumulates on the air filter, [AIR FILTER] appears at the lower left of the screen, and the temperature monitor (TEMP) will blink once. If even more dust is allowed to accumulate, the temperature inside the main unit will rise, the temperature monitor (TEMP) will blink twice, and the power is turned off. Clean the air filter section once every 100 hours or so as a guideline depending on the location of projector operation. It appears...
Page 42

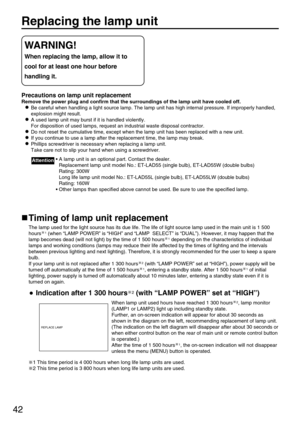

42 Replacing the lamp unit Precautions on lamp unit replacement Remove the power plug and confirm that the surroundings of the lamp unit have cooled off. Be careful when handling a light source lamp. The lamp unit has high internal pressure. If improperly handled, explosion might result. A used lamp unit may burst if it is handled violently. For disposition of used lamps, request an industrial waste disposal contractor. Do not reset the cumulative time, except when the lamp unit has been replaced with a...
Page 43
43 ENGLISH Lamp unit replacement steps • After 1 500 hours (4 000 hours when long life lamp units are used) of operating the same lamp, it is only possible to operate the unit for approximately 10 minutes. Steps to must be completed within 10 minutes.Attention Turn the power off by following the steps on page 23, remove the power plug and confirm that the surroundings of the lamp unit have cooled off. Check that the fan has stopped running. Have a Phillips screwdriver ready ahead of time. Remove the...
Page 44
44 Insert the power cord plug into the wall outlet and then press the MAIN POWER switch. Press the “ I ” button so that a picture is projected onto the screen. Press the “MENU” button to display the MAIN MENU screen, and then press the and buttons to move the cursor to select “OPTION2”. Press the “ENTER” button to display the “OPTION2” screen, and select “SYSTEM INFORMATION” with the and buttons. Press the “ENTER” button. The SYSTEM INFORMATION screen will be displayed. Press and hold the “ENTER”...
Page 45
![Page 45
45
ENGLISH

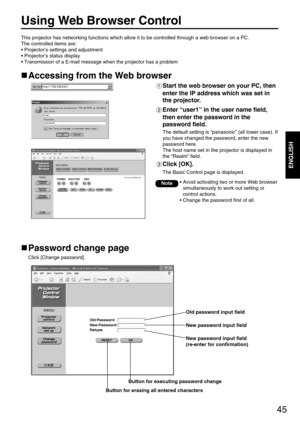

Using Web Browser Control
Accessing from the Web browser
Start the web browser on your PC, then
enter the IP address which was set in
the projector.
Enter “user1” in the user name field,
then enter the password in the
password field.
The default setting is “panasonic” (all lower case). If
you have changed the password, enter the new
password here.
The host name set in the projector is displayed in

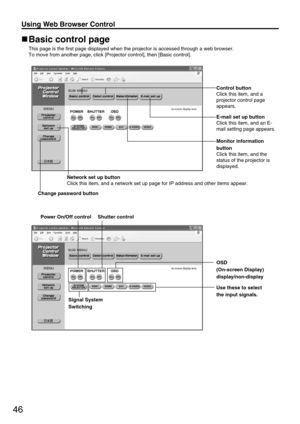

the “Realm” field.
Click [OK].
The Basic Control page is displayed.
Password change page
Click...](http://img.usermanuals.tech/thumb/58/94340/w300_panasonic-pt-dw5000ul-manual_d-44.png "Page 45
45
ENGLISH
Using Web Browser Control
Accessing from the Web browser
Start the web browser on your PC, then
enter the IP address which was set in
the projector.
Enter “user1” in the user name field,
then enter the password in the
password field.
The default setting is “panasonic” (all lower case). If
you have changed the password, enter the new
password here.
The host name set in the projector is displayed in
the “Realm” field.
Click [OK].
The Basic Control page is displayed.
Password change page
Click...")
45 ENGLISH Using Web Browser Control Accessing from the Web browser Start the web browser on your PC, then enter the IP address which was set in the projector. Enter “user1” in the user name field, then enter the password in the password field. The default setting is “panasonic” (all lower case). If you have changed the password, enter the new password here. The host name set in the projector is displayed in the “Realm” field. Click [OK]. The Basic Control page is displayed. Password change page Click...
Page 46
![Page 46
46
Using Web Browser Control
Basic control page
This page is the first page displayed when the projector is accessed through a web browser.
To move from another page, click [Projector control], then [Basic control].
OSD
(On-screen Display)
display/non-display
Use these to select
the input signals.
Signal System
Switching
Change password button
Power On/Off control
Shutter control
Control button
Click this item, and a
projector control page
appears.
E-mail set up button
Click this item, and an E-
mail...](http://img.usermanuals.tech/thumb/58/94340/w300_panasonic-pt-dw5000ul-manual_d-45.png "Page 46
46
Using Web Browser Control
Basic control page
This page is the first page displayed when the projector is accessed through a web browser.
To move from another page, click [Projector control], then [Basic control].
OSD
(On-screen Display)
display/non-display
Use these to select
the input signals.
Signal System
Switching
Change password button
Power On/Off control
Shutter control
Control button
Click this item, and a
projector control page
appears.
E-mail set up button
Click this item, and an E-
mail...")
46 Using Web Browser Control Basic control page This page is the first page displayed when the projector is accessed through a web browser. To move from another page, click [Projector control], then [Basic control]. OSD (On-screen Display) display/non-display Use these to select the input signals. Signal System Switching Change password button Power On/Off control Shutter control Control button Click this item, and a projector control page appears. E-mail set up button Click this item, and an E- mail...
Page 47
![Page 47
47
ENGLISH

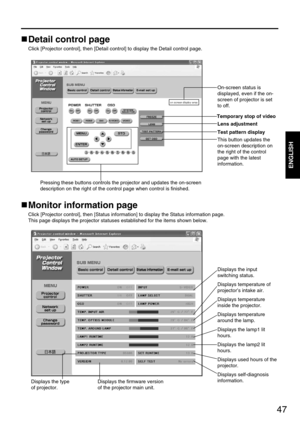

Monitor information page
Click [Projector control], then [Status information] to display the Status information page.
This page displays the projector statuses established for the items shown below.
Detail control page
Click [Projector control], then [Detail control] to display the Detail control page.
Temporary stop of video
Lens adjustment
Test pattern display
This button updates the
on-screen description on
the right of the control
page with the latest
information.
Pressing these buttons...](http://img.usermanuals.tech/thumb/58/94340/w300_panasonic-pt-dw5000ul-manual_d-46.png "Page 47
47
ENGLISH
Monitor information page
Click [Projector control], then [Status information] to display the Status information page.
This page displays the projector statuses established for the items shown below.
Detail control page
Click [Projector control], then [Detail control] to display the Detail control page.
Temporary stop of video
Lens adjustment
Test pattern display
This button updates the
on-screen description on
the right of the control
page with the latest
information.
Pressing these buttons...")
47 ENGLISH Monitor information page Click [Projector control], then [Status information] to display the Status information page. This page displays the projector statuses established for the items shown below. Detail control page Click [Projector control], then [Detail control] to display the Detail control page. Temporary stop of video Lens adjustment Test pattern display This button updates the on-screen description on the right of the control page with the latest information. Pressing these buttons...
Page 48
![Page 48
OK: Normal operation
FAILED: Occurrence of trouble
48
Using Web Browser Control

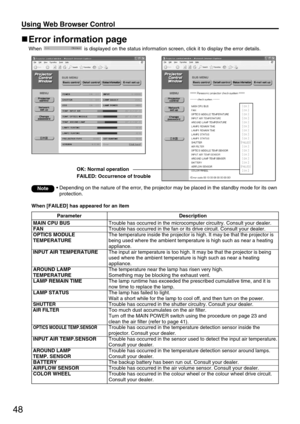

Error information page
When is displayed on the status information screen, click it to display the error details.
• Depending on the nature of the error, the projector may be placed in the standby mode for its own
protection.Note
When [FAILED] has appeared for an item
Parameter
MAIN CPU BUS
FAN
OPTICS MODULE
TEMPERATURE
INPUT AIR TEMPERATURE
AROUND LAMP
TEMPERATURE
LAMP REMAIN TIME
LAMP STATUS
SHUTTER
AIR FILTER
OPTICS...](http://img.usermanuals.tech/thumb/58/94340/w300_panasonic-pt-dw5000ul-manual_d-47.png "Page 48
OK: Normal operation
FAILED: Occurrence of trouble
48
Using Web Browser Control
Error information page
When is displayed on the status information screen, click it to display the error details.
• Depending on the nature of the error, the projector may be placed in the standby mode for its own
protection.Note
When [FAILED] has appeared for an item
Parameter
MAIN CPU BUS
FAN
OPTICS MODULE
TEMPERATURE
INPUT AIR TEMPERATURE
AROUND LAMP
TEMPERATURE
LAMP REMAIN TIME
LAMP STATUS
SHUTTER
AIR FILTER
OPTICS...")
OK: Normal operation FAILED: Occurrence of trouble 48 Using Web Browser Control Error information page When is displayed on the status information screen, click it to display the error details. • Depending on the nature of the error, the projector may be placed in the standby mode for its own protection.Note When [FAILED] has appeared for an item Parameter MAIN CPU BUS FAN OPTICS MODULE TEMPERATURE INPUT AIR TEMPERATURE AROUND LAMP TEMPERATURE LAMP REMAIN TIME LAMP STATUS SHUTTER AIR FILTER OPTICS...
Page 49
![Page 49
49
ENGLISH

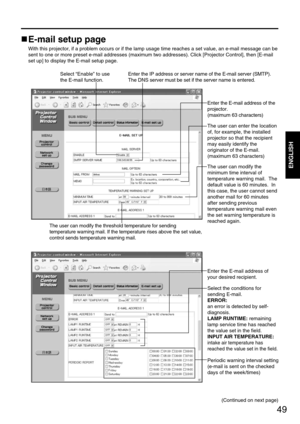

E-mail setup page
With this projector, if a problem occurs or if the lamp usage time reaches a set value, an e-mail message can be
sent to one or more preset e-mail addresses (maximum two addresses). Click [Projector Control], then [E-mail
set up] to display the E-mail setup page.
Select “Enable” to use
the E-mail function.Enter the IP address or server name of the E-mail server (SMTP).
The DNS server must be set if the server name is entered.
Enter the E-mail address of the
projector....](http://img.usermanuals.tech/thumb/58/94340/w300_panasonic-pt-dw5000ul-manual_d-48.png "Page 49
49
ENGLISH
E-mail setup page
With this projector, if a problem occurs or if the lamp usage time reaches a set value, an e-mail message can be
sent to one or more preset e-mail addresses (maximum two addresses). Click [Projector Control], then [E-mail
set up] to display the E-mail setup page.
Select “Enable” to use
the E-mail function.Enter the IP address or server name of the E-mail server (SMTP).
The DNS server must be set if the server name is entered.
Enter the E-mail address of the
projector....")
49 ENGLISH E-mail setup page With this projector, if a problem occurs or if the lamp usage time reaches a set value, an e-mail message can be sent to one or more preset e-mail addresses (maximum two addresses). Click [Projector Control], then [E-mail set up] to display the E-mail setup page. Select “Enable” to use the E-mail function.Enter the IP address or server name of the E-mail server (SMTP). The DNS server must be set if the server name is entered. Enter the E-mail address of the projector....
Page 50
![Page 50
50
Using Web Browser Control

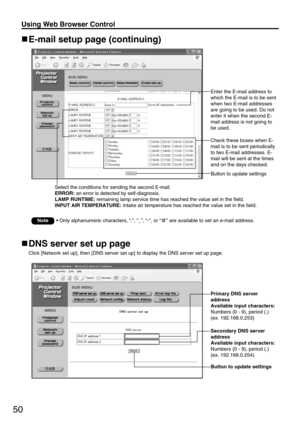

DNS server set up page
