11
ENGLISH

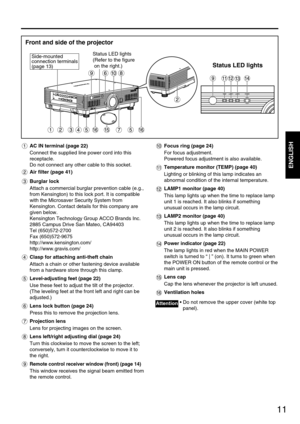

AC IN terminal (page 22)
Connect the supplied line power cord into this
receptacle.
Do not connect any other cable to this socket.
Air filter (page 41)
Burglar lock
Attach a commercial burglar prevention cable (e.g.,
from Kensington) to this lock port. It is compatible
with the Microsaver Security System from
Kensington. Contact details for this company are
given below.
Kensington Technology Group ACCO Brands Inc.
2885 Campus Drive San Mateo, CA94403
Tel (650)572-2700
Fax (650)572-9675...

12

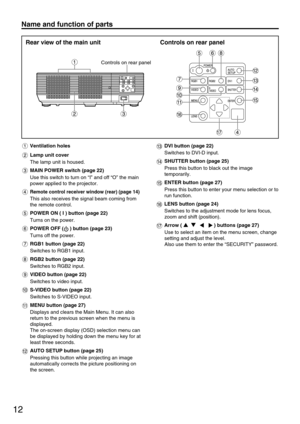

Name and function of parts
Ventilation holes
Lamp unit cover
The lamp unit is housed.
MAIN POWER switch (page 22)
Use this switch to turn on “I” and off “O” the main
power applied to the projector.
Remote control receiver window (rear) (page 14)
This also receives the signal beam coming from
the remote control.
POWER ON ( I ) button (page 22)
Turns on the power.
POWER OFF ( ) button (page 23)
Turns off the power.
RGB1 button (page 22)
Switches to RGB1 input.
RGB2 button (page 22)
Switches to RGB2...

13
ENGLISH

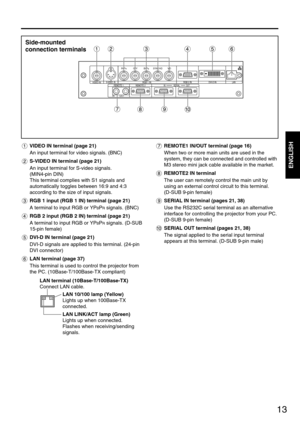

VIDEO IN terminal (page 21)
An input terminal for video signals. (BNC)
S-VIDEO IN terminal (page 21)
An input terminal for S-video signals.
(MIN4-pin DIN)
This terminal complies with S1 signals and
automatically toggles between 16:9 and 4:3
according to the size of input signals.
RGB 1 input (RGB 1 IN) terminal (page 21)
A terminal to input RGB or YP
BPRsignals. (BNC)
RGB 2 input (RGB 2 IN) terminal (page 21)
A terminal to input RGB or YP
BPRsignals. (D-SUB
15-pin female)
DVI-D IN terminal...

14

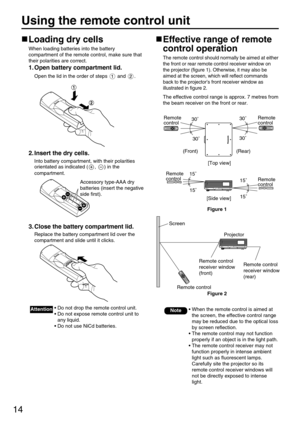

Using the remote control unit
Loading dry cells
When loading batteries into the battery
compartment of the remote control, make sure that
their polarities are correct.
1. Open battery compartment lid.
Open the lid in the order of steps  and  .
2. Insert the dry cells.
Into battery compartment, with their polarities
orientated as indicated ( ,  ) in the
compartment.
3. Close the battery compartment lid.
Replace the battery compartment lid over the
compartment and slide until it clicks.
Effective range...

15
ENGLISH
Using the remote control as a PC mouse
Operation mode selector switch
Put the knob to the Computer position.
•ENTER button
Pressing the front, rear, left and right edges of the
button moves the mouse cursor up, down, left and
right.
•Right click ( ) button
This button can be used as the right mouse button.
•Left click ( ) button
This button can be used as the left mouse button.
•PAGE UP button
This button can be used as the Page Up button on
the PC keyboard.
•PAGE DOWN button
This button can...

16

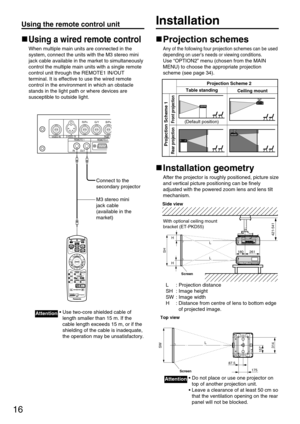

Using a wired remote control
When multiple main units are connected in the
system, connect the units with the M3 stereo mini
jack cable available in the market to simultaneously
control the multiple main units with a single remote
control unit through the REMOTE1 IN/OUT
terminal. It is effective to use the wired remote
control in the environment in which an obstacle
stands in the light path or where devices are
susceptible to outside light.
SB/PBG/YRR/P
REMOTE 1
REMOTE 2RGB 1 INVIDEO INS-VIDEO  IN
IN...

17
ENGLISH
Projection distance by projection lens
Listed in the table below are the lens projection distances for the PT-D5600E (lens included), PT-D5600EL (lens
sold separately), PT-DW5000E (lens included) and PT-DW5000EL (lens sold separately).
• PT-D5600E, PT-D5600EL
50
60
70
80
90
100
120
150
200
250
300
350
400
500
600
Diagonal
length
(SD)
0.76
0.91
1.07
1.22
1.37
1.52
1.83
2.29
3.05
3.81
4.57
5.33
6.10
7.62
9.14 Height
(SH)
1.02
1.22
1.42
1.63
1.83
2.03
2.44
3.05
4.06
5.08
6.10
7.11
8.13
10.16...

18
Installation
0.62
0.75
0.87
1.00
1.12
1.25
1.49
1.87
2.49
3.11
3.74
4.36
4.98
6.23
7.47 1.11
1.33
1.55
1.77
1.99
2.21
2.66
3.32
4.43
5.53
6.64
7.75
8.86
11.07
13.281.48
1.78
2.09
2.39
2.70
3.00
3.61
4.53
6.05
7.58
9.10
10.63
12.15
15.20
18.252.01
2.42
2.83
3.24
3.65
4.06
4.88
6.12
8.17
10.23
12.28
14.34
16.39
20.50
24.61 1.98
2.39
2.80
3.21
3.62
4.03
4.84
6.07
8.12
10.16
12.21
14.25
16.30
20.39
24.482.63
3.17
3.71
4.25
4.79
5.33
6.40
8.02
10.72
13.41
16.11
18.80
21.50
26.89
32.283.89...

19
ENGLISH

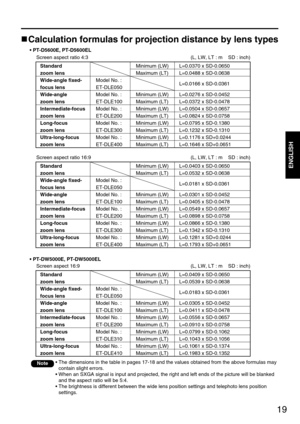

Calculation formulas for projection distance by lens types
• PT-D5600E, PT-D5600EL
Standard
zoom lens
Wide-angle fixed-
focus lens
Wide-angle
zoom lens
Intermediate-focus
zoom lens
Long-focus
zoom lens
Ultra-long-focus
zoom lensModel No. :
ET-DLE050
Model No. :
ET-DLE100
Model No. :
ET-DLE200
Model No. :
ET-DLE300
Model No. :
ET-DLE400Minimum (LW)
Maximum (LT)
Minimum (LW)
Maximum (LT)
Minimum (LW)
Maximum (LT)
Minimum (LW)
Maximum (LT)
Minimum (LW)
Maximum (LT)L=0.0370 x SD-0.0650
L=0.0488...

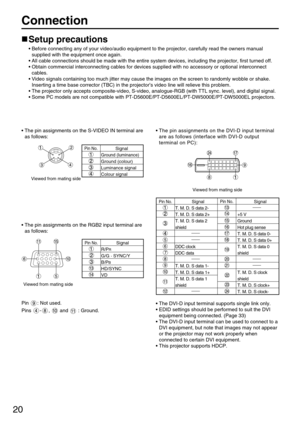

20
Connection
Setup precautions
• Before connecting any of your video/audio equipment to the projector, carefully read the owners manual
supplied with the equipment once again.
• All cable connections should be made with the entire system devices, including the projector, first turned off.
• Obtain commercial interconnecting cables for devices supplied with no accessory or optional interconnect
cables.
• Video signals containing too much jitter may cause the images on the screen to randomly wobble or...
