Panasonic Pt F300nte Projector User Manual

Basic Operation
Remote control operation

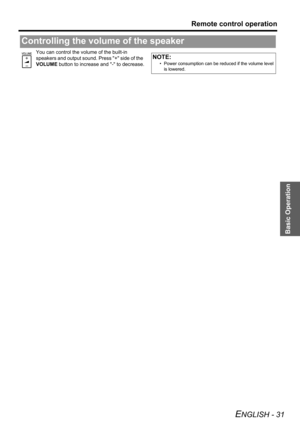

ENGLISH - 31
You can control the volume of the built-in
speakers and output sound. Press + side of the
VOLUME button to increase and - to decrease.
Controlling the volume of the speaker
NOTE:
• Power consumption can be r educed if the volume level
is lowered.

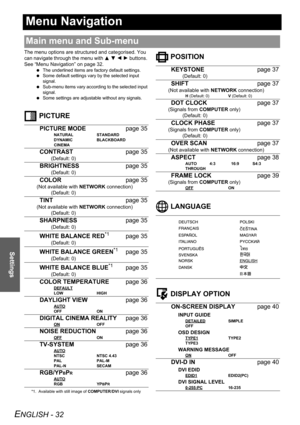

ENGLISH - 32
Settings
Menu Navigation
The menu options are structured and categorised. You
can navigate through the menu with F G  I  H  buttons.
See “Menu Navigation” on page 32.
  The underlined items are factory default settings.
  Some default settings vary by the selected input
signal.
  Sub-menu items vary accordin g to the selected input
signal.
  Some settings are adjustable without any signals.
 PICTURE  POSITION
 LANGUAGE
 DISPLAY OPTION
Main menu and Sub-menu
PICTURE MODE
page 35
NATURAL...

Menu Navigation

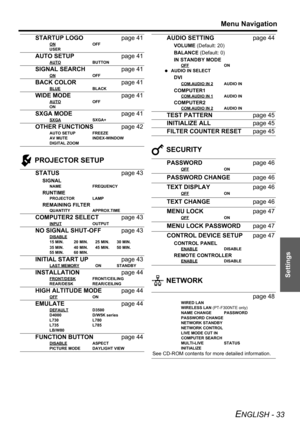

ENGLISH - 33
Settings
 PROJECTOR SETUP SECURITY
 NETWORK
STARTUP LOGO
page 41
ONOFF
USER
AUTO SETUP page 41
AUTOBUTTON
SIGNAL SEARCHpage 41
ONOFF
BACK COLORpage 41
BLUEBLACK
WIDE MODEpage 41
AUTOOFF
ON
SXGA MODE page 41
SXGASXGA+
OTHER FUNCTIONSpage 42
AUTO SETUP FREEZE
AV MUTE INDEX-WINDOW
DIGITAL ZOOM
STATUSpage 43
SIGNAL
NAME FREQUENCY
RUNTIME
PROJECTOR LAMP
REMAINING FILTER
QUANTITY APPROX.TIME
COMPUTER2 SELECTpage 43
INPUTOUTPUT
NO SIGNAL SHUT-OFFpage 43
DISABLE
15 MIN. 20 MIN. 25...

Settings
Menu Navigation

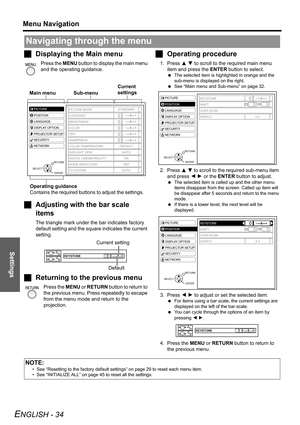

ENGLISH - 34
JDisplaying the Main menu
Press the  MENU button to display the main menu
and the operating guidance.
J Adjusting with the bar scale
items
The triangle mark under the bar indicates factory
default setting and the square indicates the current
setting.
JReturning to the previous menu
Press the  MENU or RETURN  button to return to
the previous menu. Press repeatedly to escape
from the menu mode and return to the
projection.
J Operating procedure
1. Press  F G...

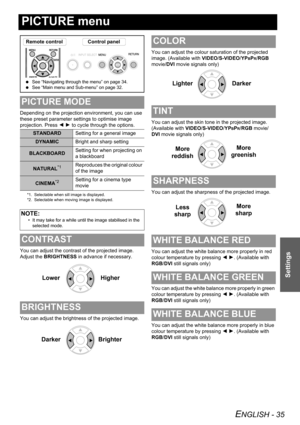

ENGLISH - 35
Settings
PICTURE menu
Depending on the projection environment, you can use
these preset parameter settings to optimise image
projection. Press I H  to cycle through the options.
You can adjust the contrast  of the projected image.
Adjust the  BRIGHTNESS  in advance if necessary.
You can adjust the brightness of the projected image. You can adjust the colour saturation of the projected
image. (Available with
VIDEO/S-VIDEO /YP
BPR/RGB
movie/ DVI movie signals only)
You can adjust the...

Settings
PICTURE menu

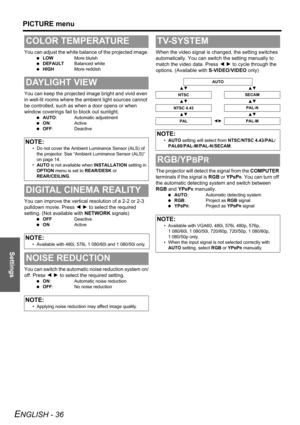

ENGLISH - 36
You can adjust the white balance of the projected image.
 LOW More bluish
  DEFAULT Balanced white
  HIGH More reddish
You can keep the projected image bright and vivid even
in well-lit rooms where the am bient light sources cannot
be controlled, such as when a door opens or when
window coverings fail to block out sunlight.
  AUTO : Automatic adjustment
  ON: Active
  OFF : Deactive
You can improve the vertical resolution of a 2-2 or 2-3
pulldown movie. Press  I H...

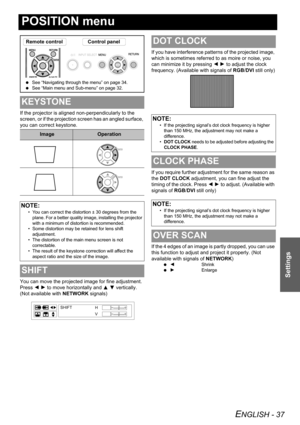

ENGLISH - 37
Settings
POSITION menu
If the projector is aligned non-perpendicularly to the
screen, or if the projection screen has an angled surface,
you can correct keystone.
You can move the projected image for fine adjustment.
Press I H  to move horizontally and  F G  vertically.
(Not available with  NETWORK signals) If you have interference patterns of the projected image,
which is sometimes referred
to as moire or noise, you
can minimize it by pressing  I H  to adjust the clock
frequency....

Settings
POSITION menu

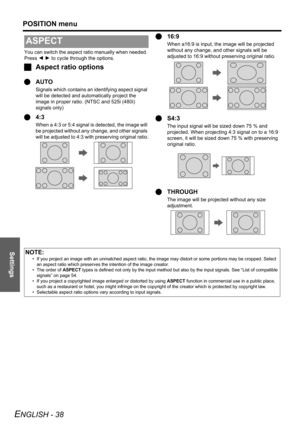

ENGLISH - 38
You can switch the aspect ratio manually when needed.
Press I H  to cycle through the options.
J Aspect ratio options
Q AUTO
Signals which contains an identifying aspect signal
will be detected and autom atically project the
image in proper ratio. (NTSC and 525i (480i)
signals only)
Q 4:3
When a 4:3 or 5:4 signal is  detected, the image will
be projected without any  change, and other signals
will be adjusted to 4:3 with pr eserving original ratio.
Q16:9
When...

POSITION menu

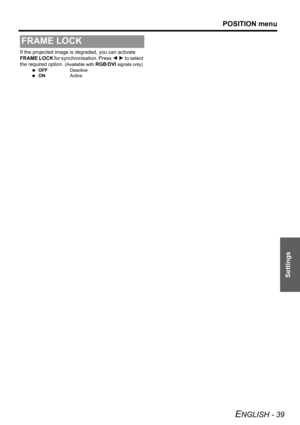

ENGLISH - 39
Settings
If the projected image is degraded, you can activate
FRAME LOCK  for synchronisation. Press  I H  to select
the required option. (
Available with RGB/DVI signals only)
  OFF Deactive
  ON Active
FRAME LOCK

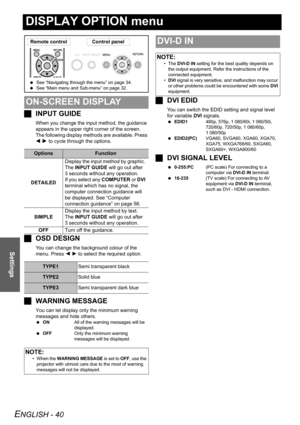

ENGLISH - 40
Settings
DISPLAY OPTION menu
JINPUT GUIDE
When you change the input method, the guidance
appears in the upper right corner of the screen.
The following display methods  are available. Press
I  H  to cycle through the options.
J OSD DESIGN
You can change the background colour of the
menu. Press  I H  to select the required option.
J WARNING MESSAGE
You can let display only the minimum warning
messages and hide others.
 ON All of the warning messages will be
displayed.
  OFF Only the...
