DISPLAY OPTION menu

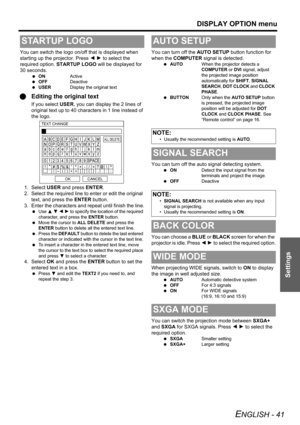

ENGLISH - 41
Settings
You can switch the logo on/off that is displayed when
starting up the projector. Press I H  to select the
required option.  STARTUP LOGO  will be displayed for
30 seconds.
  ON Active
  OFF Deactive
  USER Display the original text
QEditing the original text
If you select  USER, you can display the 2 lines of
original text up to 40 characters in 1 line instead of
the logo.
1. Select  USER and press  ENTER.
2. Select the required line to enter or edit the...

Settings
DISPLAY OPTION menu

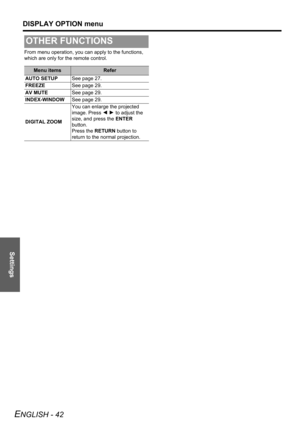

ENGLISH - 42
From menu operation, you can apply to the functions,
which are only for the remote control.
OTHER FUNCTIONS
Menu itemsRefer
AUTO SETUP See page 27.
FREEZE See page 29.
AV MUTE See page 29.
INDEX-WINDOW See page 29.
DIGITAL ZOOM You can enlarge the projected
image. Press
I H  to adjust the
size, and press the  ENTER
button.
Press the  RETURN button to
return to the normal projection.

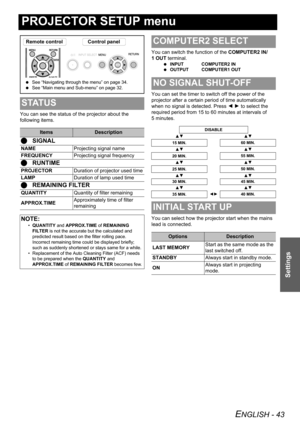

ENGLISH - 43
Settings
PROJECTOR SETUP menu
You can see the status of the projector about the
following items.You can switch the function of the
COMPUTER2 IN/
1 OUT  terminal.
 INPUT COMPUTER2 IN
  OUTPUT COMPUTER1 OUT
You can set the timer to switch off the power of the
projector after a certain period of time automatically
when no signal is detected. Press  I H  to select the
required period from 15 to 60 minutes at intervals of
5 minutes.
You can select how the projector start when the mains...

Settings
PROJECTOR SETUP menu

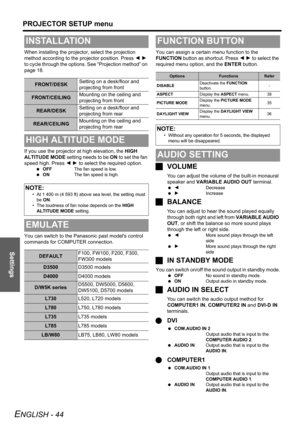

ENGLISH - 44
When installing the projector, select the projection
method according to the projector position. Press  I H
to cycle through the options. See “Projection method” on
page 18.
If you use the projector at high elevation, the  HIGH
ALTITUDE MODE  setting needs to be  ON to set the fan
speed high. Press  I H  to select the required option.
  OFF The fan speed is low.
  ON The fan speed is high.
You can switch to the Panasonic past models control
commands for...

PROJECTOR SETUP menu

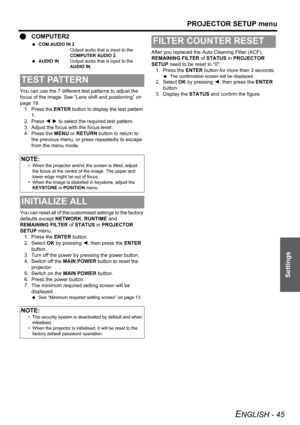

ENGLISH - 45
Settings
QCOMPUTER2
 COM.AUDIO IN 2
Output audio that is input to the
COMPUTER AUDIO 2 .
  AUDIO IN Output audio that is input to the
AUDIO IN.
You can use the 7 different test patterns to adjust the
focus of the image. See “Lens shift and positioning” on
page 19.
1. Press the  ENTER button to display the test pattern
1.
2. Press  I H  to select the re quired test pattern.
3. Adjust the focus with the focus lever.
4. Press the  MENU or RETURN  button to return to...

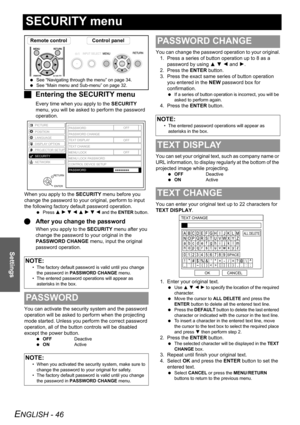

ENGLISH - 46
Settings
SECURITY menu
JEntering the SECURITY menu
Every time when you apply to the  SECURITY
menu, you will be asked to  perform the password
operation.
When you apply to the  SECURITY menu before you
change the password to your original, perform to input
the following factory default password operation.
  Press  F H  G  I  F  H  G  I  and the  ENTER button.
QAfter you change the password
When you apply to the  SECURITY menu after you
change the password to your original in the...

SECURITY menu

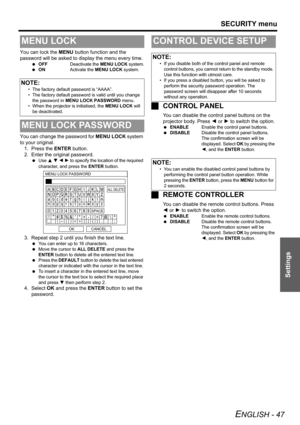

ENGLISH - 47
Settings
You can lock the MENU button function and the
password will be asked to display the menu every time.
  OFF Deactivate the MENU LOCK system.
  ON Activate the MENU LOCK  system.
You can change the password for  MENU LOCK system
to your original. 1. Press the  ENTER button.
2. Enter the original password.
  Use  F G  I  H  to specify the location of the required
character, and press the  ENTER button.
3. Repeat step 2 until you finish the text line.
 You can enter up...

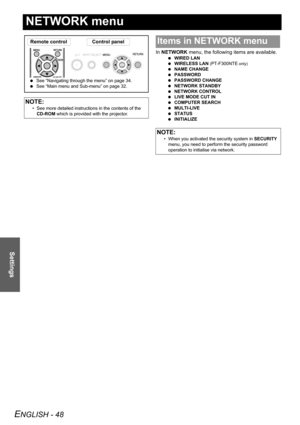

ENGLISH - 48
Settings
NETWORK menu
In NETWORK  menu, the following items are available.
 WIRED LAN
  WIRELESS LAN
(PT-F300NTE only)
 NAME CHANGE
  PASSWORD
  PASSWORD CHANGE
  NETWORK STANDBY
  NETWORK CONTROL
  LIVE MODE CUT IN
  COMPUTER SEARCH
  MULTI-LIVE
  STATUS
  INITIALIZE
NOTE:
• See more detailed instructions in the contents of the
CD-ROM  which is provided with the projector.
Remote control Control panel
 See “Navigating through the menu” on page 34.
  See “Main menu and Sub-menu” on page...

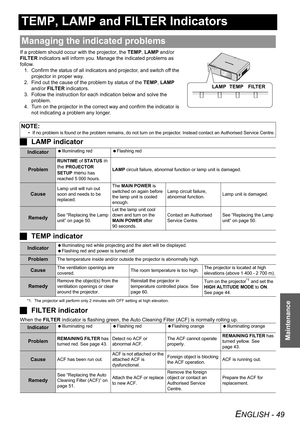

ENGLISH - 49
Maintenance
TEMP, LAMP and FILTER Indicators
If a problem should occur with the projector, the TEMP, LAMP  and/or
FILTER  indicators will inform you. Ma nage the indicated problems as
follow. 1. Confirm the status of all indicators and projector, and switch off the  projector in proper way.
2. Find out the cause of the  problem by status of the TEMP, LAMP
and/or  FILTER  indicators.
3. Follow the instructi on for each indication below and solve the
problem.
4. Turn on the projector in...

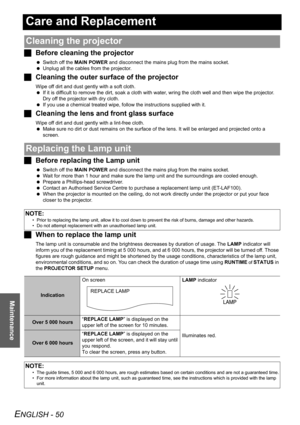

ENGLISH - 50
Maintenance
Care and Replacement
JBefore cleaning the projector
 Switch off the  MAIN POWER  and disconnect the mains plug from the mains socket.
  Unplug all the cables from the projector.
J Cleaning the outer surf ace of the projector
Wipe off dirt and dust gently with a soft cloth.
 If it is difficult to remove the dirt, soak a cloth with water, wring the cloth well and then wipe the projector.
Dry off the projector with dry cloth.
  If you use a chemical treated wipe, fo llow the...
