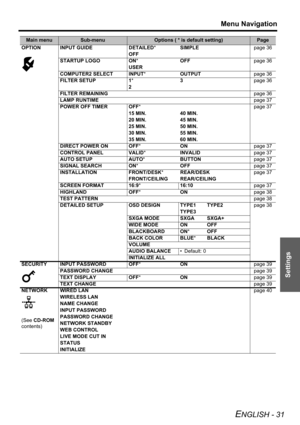

Menu Navigation
ENGLISH - 31
Settings
Main menuSub-menuOptions ( * is default setting)Page
OPTION INPUT GUIDE DETAILED*SIMPLEpage 36
OFF
STARTUP LOGO ON*OFFpage 36
USER
COMPUTER2 SELECT INPUT*OUTPUTpage 36
FILTER SETUP 1*3page 36
2
FILTER REMAININGpage 36
LAMP RUNTIMEpage 37
POWER OFF TIMER OFF* page 37
15 MIN. 40 MIN.
20 MIN. 45 MIN.
25 MIN. 50 MIN.
30 MIN. 55 MIN.
35 MIN. 60 MIN.
DIRECT POWER ON OFF*ONpage 37
CONTROL PANEL VALID*INVALIDpage 37
AUTO SETUP AUTO*BUTTONpage 37
SIGNAL SEARCH ON*OFFpage 37...

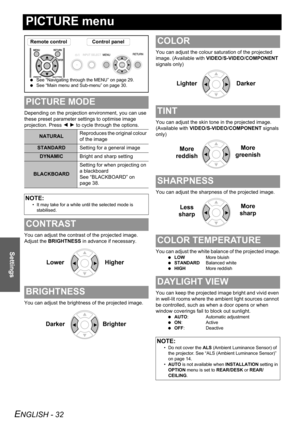

ENGLISH - 32
Settings
PICTURE menu
Depending on the projection environment, you can use
these preset parameter settings to optimise image
projection. Press I H to cycle through the options.
You can adjust the contrast of the projected image.
Adjust the BRIGHTNESS in advance if necessary.
You can adjust the brightness of the projected image.You can adjust the colour saturation of the projected
image. (Available with VIDEO/S-VIDEO/COMPONENT
signals only)
You can adjust the skin tone in the projected...

PICTURE menu

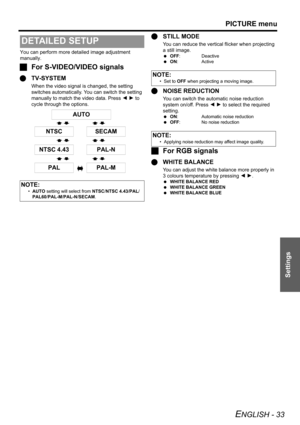

ENGLISH - 33
Settings
You can perform more detailed image adjustment
manually.
JFor S-VIDEO/VIDEO signals
QTV-SYSTEM
When the video signal is changed, the setting
switches automatically. You can switch the setting
manually to match the video data. Press I H to
cycle through the options.
QSTILL MODE
You can reduce the vertical flicker when projecting
a still image.
 OFF: Deactive
 ON: Active
QNOISE REDUCTION
You can switch the automatic noise reduction
system on/off. Press I H to select...

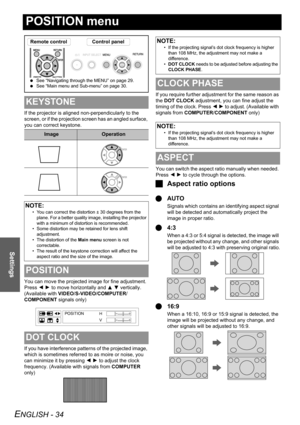

ENGLISH - 34
Settings
POSITION menu
If the projector is aligned non-perpendicularly to the
screen, or if the projection screen has an angled surface,
you can correct keystone.
You can move the projected image for fine adjustment.
Press I H to move horizontally and F G vertically.
(Available with VIDEO/S-VIDEO/COMPUTER/
COMPONENT signals only)
If you have interference patterns of the projected image,
which is sometimes referred to as moire or noise, you
can minimize it by pressing I H to adjust the...

POSITION menu

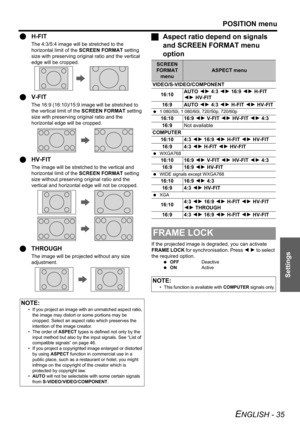

ENGLISH - 35
Settings
QH-FIT
The 4:3/5:4 image will be stretched to the
horizontal limit of the SCREEN FORMAT setting
size with preserving original ratio and the vertical
edge will be cropped.
QV-FIT
The 16:9 (16:10)/15:9 image will be stretched to
the vertical limit of the SCREEN FORMAT setting
size with preserving original ratio and the
horizontal edge will be cropped.
QHV-FIT
The image will be stretched to the vertical and
horizontal limit of the SCREEN FORMAT setting
size...

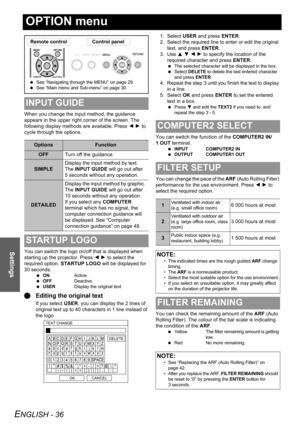

ENGLISH - 36
Settings
OPTION menu
When you change the input method, the guidance
appears in the upper right corner of the screen. The
following display methods are available. Press I H to
cycle through the options.
You can switch the logo on/off that is displayed when
starting up the projector. Press I H to select the
required option. STARTUP LOGO will be displayed for
30 seconds.
 ONActive
 OFFDeactive
 USERDisplay the original text
QEditing the original text
If you select USER, you can display...

OPTION menu

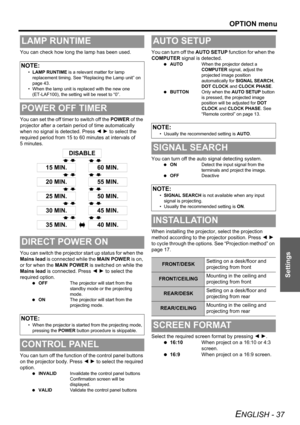

ENGLISH - 37
Settings
You can check how long the lamp has been used.
You can set the off timer to switch off the POWER of the
projector after a certain period of time automatically
when no signal is detected. Press I H to select the
required period from 15 to 60 minutes at intervals of
5 minutes.
You can switch the projector start up status for when the
Mains lead is connected while the MAIN POWER is on,
or for when the MAIN POWER is switched on while the
Mains lead is connected. Press...

Settings
OPTION menu

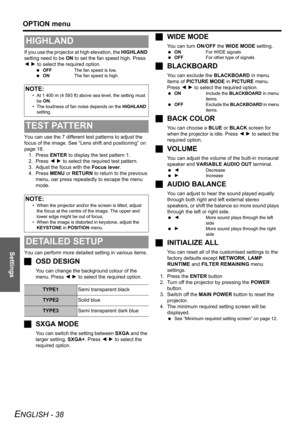

ENGLISH - 38
If you use the projector at high elevation, the HIGHLAND
setting need to be ON to set the fan speed high. Press
I H to select the required option.
 OFFThe fan speed is low.
 ONThe fan speed is high.
You can use the 7 different test patterns to adjust the
focus of the image. See “Lens shift and positioning” on
page 18.
1. Press ENTER to display the test pattern 1.
2. Press I H to select the required test pattern.
3. Adjust the focus with the Focus lever.
4. Press...

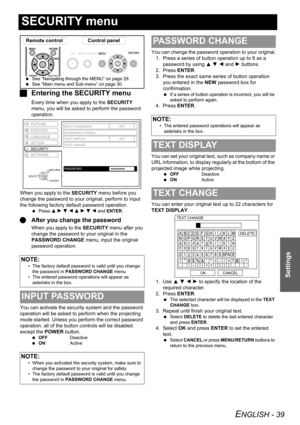

ENGLISH - 39
Settings
SECURITY menu
JEntering the SECURITY menu
Every time when you apply to the SECURITY
menu, you will be asked to perform the password
operation.
When you apply to the SECURITY menu before you
change the password to your original, perform to input
the following factory default password operation.
 Press F H G I F H G I and ENTER.
QAfter you change the password
When you apply to the SECURITY menu after you
change the password to your original in the
PASSWORD CHANGE menu, input the...

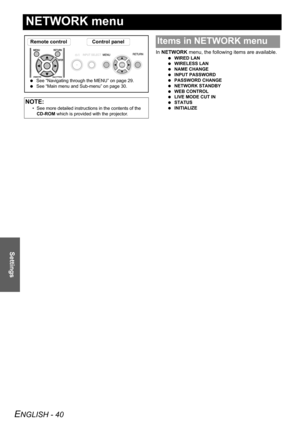

ENGLISH - 40
Settings
NETWORK menu
In NETWORK menu, the following items are available.
 WIRED LAN
 WIRELESS LAN
 NAME CHANGE
 INPUT PASSWORD
 PASSWORD CHANGE
 NETWORK STANDBY
 WEB CONTROL
 LIVE MODE CUT IN
 STATUS
 INITIALIZE
NOTE:
• See more detailed instructions in the contents of the
CD-ROM which is provided with the projector.
Remote control Control panel
 See “Navigating through the MENU” on page 29.
 See “Main menu and Sub-menu” on page 30.
Items in NETWORK menu
