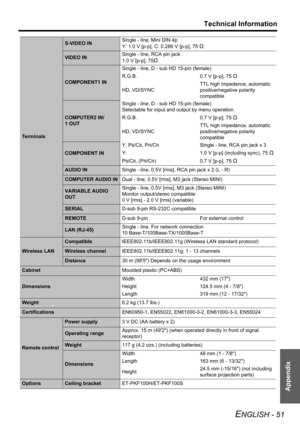

Page 51
![Page 51
Technical Information
ENGLISH - 51
Appendix
Terminals
S-VIDEO INSingle - line, Mini DIN 4p
Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 Ω
VIDEO INSingle - line, RCA pin jack
1.0 V [p-p], 75Ω
COMPONENT1 INSingle - line, D - sub HD 15-pin (female)
R.G.B.
0.7 V [p-p], 75
Ω
HD, VD/SYNCTTL high impedance, automatic
positive/negative polarity
compatible
COMPUTER2 IN/
1 OUTSingle - line, D - sub HD 15-pin (female)
Selectable for input and output by menu operation.
R.G.B.
0.7 V [p-p], 75 Ω
HD, VD/SYNCTTL high...](http://img.usermanuals.tech/thumb/58/94555/w300_panasonic-pt-fw100nte-manual_d-50.png "Page 51
Technical Information
ENGLISH - 51
Appendix
Terminals
S-VIDEO INSingle - line, Mini DIN 4p
Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 Ω
VIDEO INSingle - line, RCA pin jack
1.0 V [p-p], 75Ω
COMPONENT1 INSingle - line, D - sub HD 15-pin (female)
R.G.B.
0.7 V [p-p], 75
Ω
HD, VD/SYNCTTL high impedance, automatic
positive/negative polarity
compatible
COMPUTER2 IN/
1 OUTSingle - line, D - sub HD 15-pin (female)
Selectable for input and output by menu operation.
R.G.B.
0.7 V [p-p], 75 Ω
HD, VD/SYNCTTL high...")
Technical Information ENGLISH - 51 Appendix Terminals S-VIDEO INSingle - line, Mini DIN 4p Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 Ω VIDEO INSingle - line, RCA pin jack 1.0 V [p-p], 75Ω COMPONENT1 INSingle - line, D - sub HD 15-pin (female) R.G.B. 0.7 V [p-p], 75 Ω HD, VD/SYNCTTL high impedance, automatic positive/negative polarity compatible COMPUTER2 IN/ 1 OUTSingle - line, D - sub HD 15-pin (female) Selectable for input and output by menu operation. R.G.B. 0.7 V [p-p], 75 Ω HD, VD/SYNCTTL high...

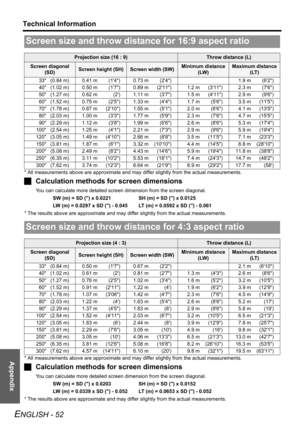

Page 52
Appendix Technical Information ENGLISH - 52 * All measurements above are approximate and may differ slightly from the actual measurements. JCalculation methods for screen dimensions You can calculate more detailed screen dimension from the screen diagonal. SW (m) = SD () x 0.0221 SH (m) = SD () x 0.0125 LW (m) = 0.0297 x SD () - 0.045 LT (m) = 0.0592 x SD () - 0.061 * The results above are approximate and may differ slightly from the actual measurements. * All measurements above are approximate and may...

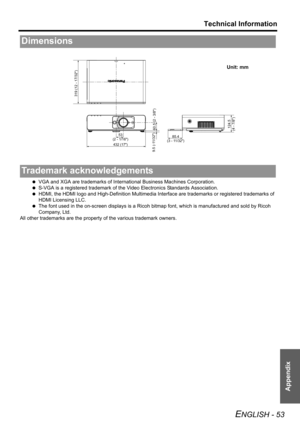

Page 53
Technical Information ENGLISH - 53 Appendix VGA and XGA are trademarks of International Business Machines Corporation. S-VGA is a registered trademark of the Video Electronics Standards Association. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh Company, Ltd. All other trademarks are the property of the various...

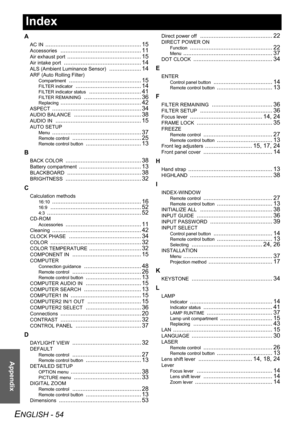

Page 54
ENGLISH - 54 Appendix Index A AC IN ......................................................... 15 Accessories ................................................ 11 Air exhaust port ............................................ 15 Air intake port .............................................. 14 ALS (Ambient Luminance Sensor) ................... 14 ARF (Auto Rolling Filter) Compartment ........................................... 15 FILTER indicator ....................................... 14 FILTER indicator...

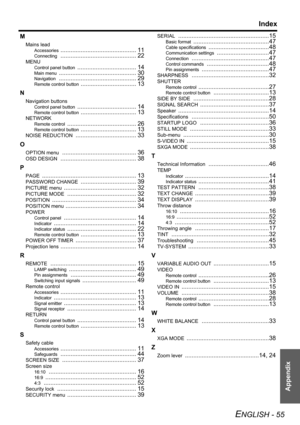

Page 55
Appendix Index ENGLISH - 55 M Mains lead Accessories ............................................. 11 Connecting ............................................. 22 MENU Control panel button ................................... 14 Main menu .............................................. 30 Navigation .............................................. 29 Remote control button ................................. 13 N Navigation buttons Control panel button ................................... 14 Remote control button...

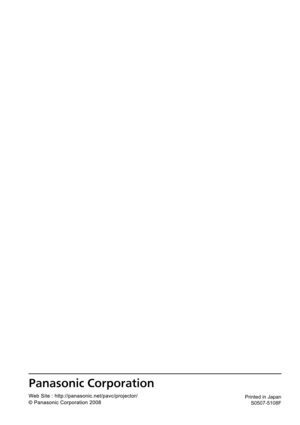

Page 56
Printed in JapanS0507-5108F
