Panasonic Pv L672 Operating Instructions Manual

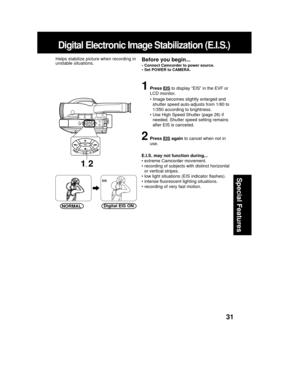

31
Special Features
Digital Electronic Image Stabilization (E.I.S.)
1Press EIS to display “EIS” in the EVF or
LCD monitor.
• Image becomes slightly enlarged and
shutter speed auto-adjusts from 1/80 to
1/350 according to brightness.
• Use High Speed Shutter (page 26) if
needed. Shutter speed setting remains
after EIS is canceled.
2Press EIS again to cancel when not in
use.
E.I.S. may not function during...
• extreme Camcorder movement.
• recording of subjects with distinct horizontal
or vertical stripes....

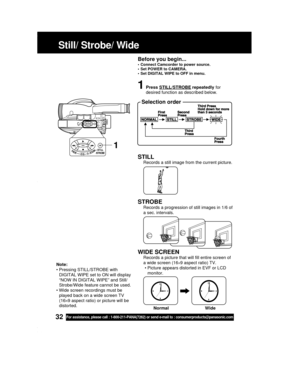

32For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
STILL
Records a still image from the current picture.
STROBE
Records a progression of still images in 1/6 of
a sec. intervals.
WIDE SCREEN
Records a picture that will fill entire screen of
a wide screen (16
×9 aspect ratio) TV.
• Picture appears distorted in EVF or LCD
monitor.
Still/ Strobe/ Wide
1Press STILL/STROBE repeatedly for
desired function as described below.
 Selection order
1
Note:
•...

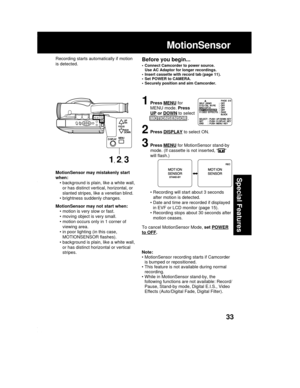

33
Special FeaturesMotionSensor may mistakenly start
when:
• background is plain, like a white wall,
or has distinct vertical, horizontal, or
slanted stripes, like a venetian blind.
• brightness suddenly changes.
MotionSensor may not start when:
• motion is very slow or fast.
• moving object is very small.
• motion occurs only in 1 corner of
viewing area.
• in poor lighting (in this case,
MOTIONSENSOR flashes).
• background is plain, like a white wall,
or has distinct horizontal or vertical
stripes....

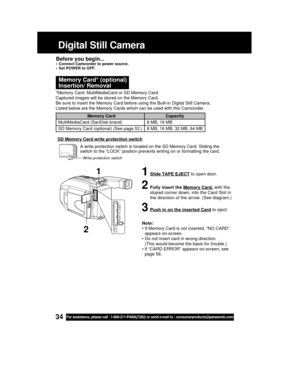

34For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
PUSH  TO  EJECT CARD
SLOT
Digital Still Camera
Memory Card* (optional)
Insertion/ Removal
Before you begin...• Connect Camcorder to power source.
• Set POWER to OFF.
*Memory Card: MultiMediaCard or SD Memory Card.
Captured images will be stored on the Memory Card.
Be sure to insert the Memory Card before using the Built-in Digital Still Camera.
Listed below are the Memory Cards which can be used with...

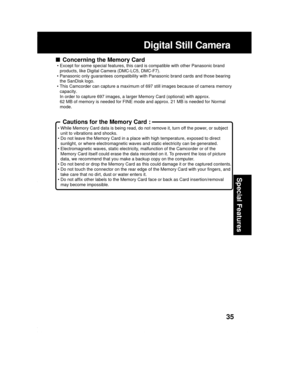

35
Special Features
Concerning the Memory Card
• Except for some special features, this card is compatible with other Panasonic brand
products, like Digital Camera (DMC-LC5, DMC-F7).
• Panasonic only guarantees compatibility with Panasonic brand cards and those bearing
the SanDisk logo.
• This Camcorder can capture a maximum of 697 still images because of camera memory
capacity.
In order to capture 697 images, a larger Memory Card (optional) with approx.
62 MB of memory is needed for FINE mode and...

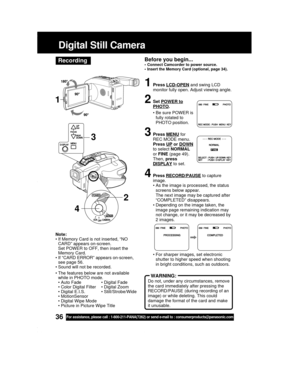

36For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
Note:
• If Memory Card is not inserted, “NO
CARD” appears on-screen.
Set POWER to OFF, then insert the
Memory Card.
• If “CARD ERROR” appears on-screen,
see page 56.
• Sound will not be recorded.
• The features below are not available
while in PHOTO mode.
• Auto Fade • Digital Fade
• Color Digital Filter • Digital Zoom
• Digital E.I.S. • Still/Strobe/Wide
• MotionSensor
• Digital Wipe Mode
• Picture in...

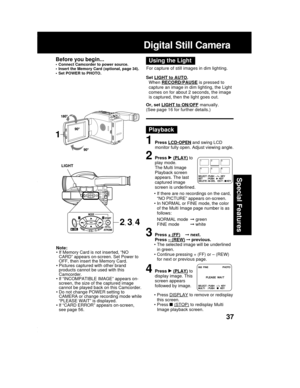

37
Special Features
Digital Still Camera
Using the LightBefore you begin...• Connect Camcorder to power source.
• Insert the Memory Card (optional, page 34).
• Set POWER to PHOTO.
Set LIGHT to AUTO.
When RECORD/PAUSE is pressed to
capture an image in dim lighting, the Light
comes on for about 2 seconds, the image
is captured, then the light goes out.
Or, set
LIGHT to ON/OFF manually.
(See page 16 for further details.)For capture of still images in dim lighting.
Playback
1Press LCD-OPEN and swing LCD...

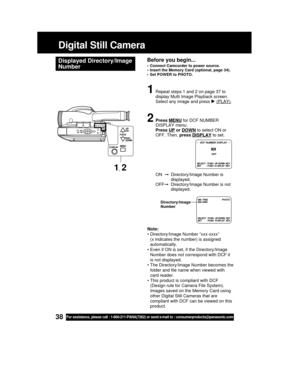

38For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
Digital Still Camera
Displayed Directory/Image
NumberBefore you begin...
• Connect Camcorder to power source.
• Insert the Memory Card (optional, page 34).
• Set POWER to PHOTO.
1Repeat steps 1 and 2 on page 37 to
display Multi Image Playback screen.
Select any image and press
 (PLAY).
2Press MENU for DCF NUMBER
DISPLAY menu.
Press
UP or DOWN to select ON or
OFF. Then, press
DISPLAY to set.
ON...

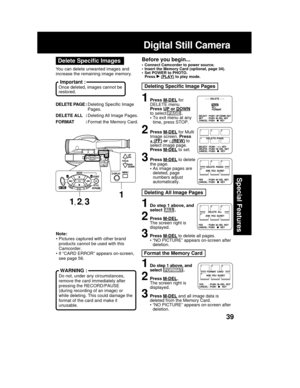

39
Special Features
Deleting All Image Pages
Deleting Specific Image Pages
Before you begin...
• Connect Camcorder to power source.
• Insert the Memory Card (optional, page 34).
• Set POWER to PHOTO.
Press
 (PLAY) to play mode.
Digital Still Camera
1Press M-DEL for
DELETE menu.
Press
UP or DOWN
to select PAGE .
•To exit menu at any
time, press STOP.
2Press M-DEL for Multi
Image screen. Press
+ (FF) or - (REW) to
select image page.
Press
M-DEL to set.
3Press M-DEL to delete
the page.
•As image pages...

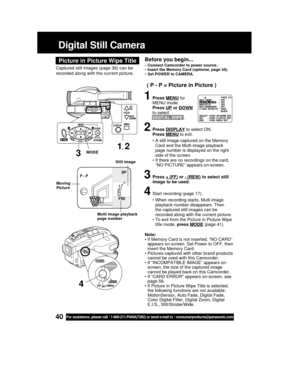

40For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
Picture in Picture Wipe Title
Captured still images (page 36) can be
recorded along with the current picture.
Before you begin...
• Connect Camcorder to power source.
• Insert the Memory Card (optional, page 34).
• Set POWER to CAMERA.
1Press MENU for
MENU mode.
Press
UP or DOWN
to select
DIGITAL WIPE .
2Press DISPLAY to select ON.
Press
MENU to exit.
• A still image captured on the Memory
Card and...
