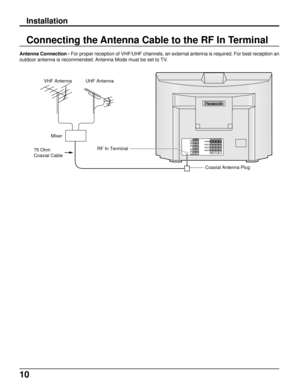

Connecting the Antenna Cable to the RF In Terminal
123INPUT
COMPONENT VIDEO  INPUTPROG.
OUT S - V I D E O
V I D E O
A U D I O - L
A U D I O - R Y
P
BPRL
RAUDIO VIDEO
UHF Antenna
RF In Terminal VHF Antenna
Mixer
75 Ohm
Coaxial Cable
Coaxial Antenna Plug
Antenna Connection - For proper reception of VHF/UHF channels, an external antenna is required. For best reception an
outdoor antenna is recommended. Antenna Mode must be set to TV.
Installation

11
Installation
Antenna / Cable Connection
Incoming Cable From Home Antenna (75 Ohm)
VHF/UHF
on Back of Set
Cable Connection - For reception of cable channels (01 - 125) connect the cable supplied by your local cable company.
Antenna Mode must be set to CABLE. (Refer to Antenna Mode section.)
Incoming 75 Ohm Cable (From Cable Company)
VHF/UHF
on Back of Set
Note:
Certain cable systems offset some channels to reduce interference or have Premium (scrambled) channels. A cable
converter box is required for...

12

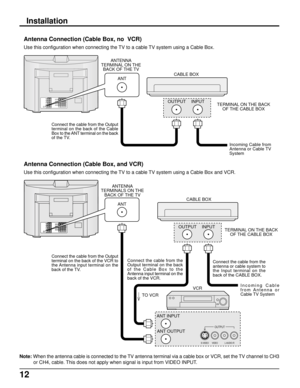

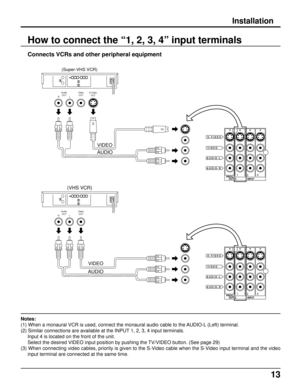

Antenna Connection (Cable Box, no  VCR)
Use this configuration when connecting the TV to a cable TV system using a Cable Box.
Antenna Connection (Cable Box, and VCR)
Use this configuration when connecting the TV to a cable TV system using a Cable Box and VCR.
Connect the cable from the Output
terminal on the back of the Cable
Box to the ANT terminal on the back
of the TV.ANTENNA
TERMINAL ON THE
BACK OF THE TV
CABLE BOX
TERMINAL ON THE BACK
OF THE CABLE BOX
Incoming Cable from
Antenna or Cable TV...

13
Notes:
(1) When a monaural VCR is used, connect the monaural audio cable to the AUDIO-L (Left) terminal.
(2) Similar connections are available at the INPUT 1, 2, 3, 4 input terminals.
     Input 4 is located on the front of the unit.
Select the desired VIDEO input position by pushing the TV/VIDEO button. (See page 29)
(3) When connecting video cables, priority is given to the S-Video cable when the S-Video input terminal and the video
input terminal are connected at the same time.
How to connect the...

14
Installation
Audio
OUTPBY PR
DVD(Y•PB•PR)
AUDIO
DVD(Y•PB•PR) OUTL R
DVD Player
COMPONENT  VIDEO  INPUT Y
P
B
PR
Y
P
B
PR
L
R
AUDIOVIDEO
12
Recording Equipment
(VHS VCR)
VIDEO
AUDIO
Audio
INVideo
INS-Video
INS-VIDEO Cable
RL
123INPUT PROG.
OUT S - V I D E O
V I D E O
A U D I O - L
A U D I O - R
How to connect the COMPONENT VIDEO Input Terminals
How to connect the AV Prog. Out Terminals
The “Prog. Out” Terminals output the same signals as main picture on the TV screen and sound from the speaker at that...

15
Installation

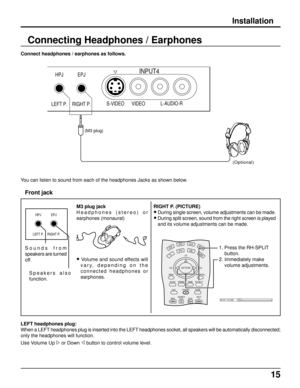

Connecting Headphones / Earphones
Connect headphones / earphones as follows.
(Optional)
HPJ
LEFT P.EPJ
RIGHT P.INPUT4
S-VIDEO
VIDEOL-AUDIO-R
You can listen to sound from each of the headphones Jacks as shown below.
LEFT headphones plug:
When a LEFT headphones plug is inserted into the LEFT headphones socket, all speakers will be automatically disconnected;
only the headphones will function.
Use Volume Up
 or Down  button to control volume level.
Front jack
M3 plug jack
Headphones...

16

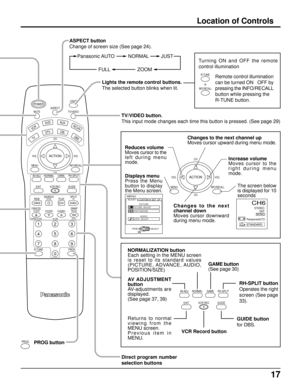

Illuminated Remote Control
Location of Controls
Power button
Press to turn the TV ON or OFF (See page 19).
Note:
The TV’s power cord must first be plugged into the wall outlet and then turned on at the
POWER switch (standby mode).
VCR
DVDAUXRCVR
TV
DTVCBL
DBS
Operation of other Device
R-TUNE button
Switches to previously view
to channel or video mode. Mode Selection buttons
Selects the operation mode for the remote control. (See page 60)

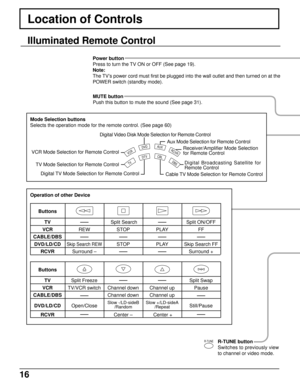

VCR Mode Selection for Remote ControlDigital Video Disk Mode...

17
LIGHT
ASPECT
MUTE TV/VIDEO
VCR
DVDAUXRCVR
TV
DTVCBLDBSCH
VOL VOL
CH MENU
INFO/RECALL
AV-ADJNORMALGAME
RH-SPLIT
EXITVCR RECGUIDE
REWSEARCH
STOPPLAYSPLITFF
FREEZETV/VCR
SLOWSWAPPAUSE
OPEN/CLOSEVCR/DBS CHANNEL
STILL
123
456
789
0
R-TUNE PROG
ACTION
POWER
CH
VOL VOL
CH MENU
INFO/RECALL
ACTION
MENUADJUST
CUSTOM
AUDIO
PICTURE  ADJUST
POSITION/SIZE
SELECT
AUDIO  ADJUST
SET  UP
EXITPAGEACTION
STEREO
SAP
MONO
PanasonicAUTO
STANDARD
CH6
AV-ADJNORMALGAME
RH-SPLIT
EXITVCR RECGUIDE
NORMALIZATION button...

18
Location of Controls

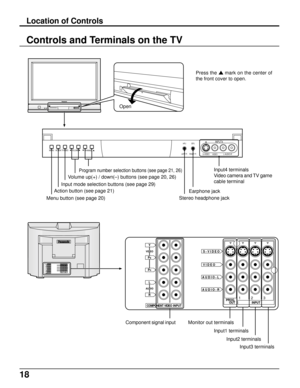

Controls and Terminals on the TV
Action button (see page 21)Volume up(+) / down(–) buttons (see page 20, 26)
Program number selection buttons (see page 21, 26)
ACTION TV/VIDEOMENUHPJ
LEFT P.EPJ
RIGHT P.
INPUT4
S-VIDEO
VIDEOL-AUDIO-R VOLUME
CHANNEL
123INPUT
COMPONENT  VIDEO   INPUTPROG.
OUT S - V I D E O
V I D E O
A U D I O - L
A U D I O - R Y
P
BPRL
RAUDIO VIDEO
123INPUT
COMPONENT  VIDEO   INPUTPROG.
OUT S - V I D E O
V I D E O
A U D I O - L
A U D I O - R Y
P
B
PR
L
R
AUDIOVIDEO...

19

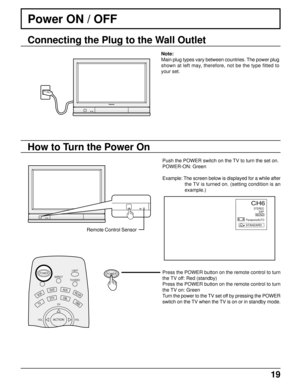

Power ON / OFF
Note:
Main plug types vary between countries. The power plug
shown at left may, therefore, not be the type fitted to
your set.
Push the POWER switch on the TV to turn the set on.
POWER-ON: Green
Example: The screen below is displayed for a while after
the TV is turned on. (setting condition is an
example.)
Press the POWER button on the remote control to turn
the TV off: Red (standby)
Press the POWER button on the remote control to turn
the TV on: Green
Turn the power to the TV set off...
