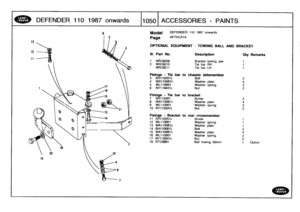

DEFENDER 110 1987onwards 1050 ACCESSORIES - PAINTS s Model Page OPTIONAL EQUIPMENT - TOWING BALL AND DEFENDER 110 1987 onwards AFTXCA1A BRACKET 1 Option III . Part No . Description Qty Remarks 1 NRC8208 Bracket towing jaw 1 2 NRC8210 Tiebar RH 1 NRC8211 Tie bar LH 1 Fixings - Tiebar to chassis sidemember 3 BH110201L Bolt 2 4 WA110061L Washer plain 4 5 WL110001 Washer spring 26 NY110041L Nut 2 Fixings - Tiebar to bracket 7 SH110301 Screw 2 8WA110061L Washer plain 4 9 WL110001 Washer...
Page 1052
DEFENDER 110 1987 onwards 110511 ACCESSORIES - PAINTS 6 Model Page DEFENDER 110 1987 onwards AFTXCA1A OPTIONAL EQUIPMENT - TOWING BALL AND BRACKET Ill . Part No . Description Fixings - Towing ball to attachment bracket 19 BH116121L Bolt 20 RTC625 Washer 21 NY116041L Nut Qty Remarks 224
Page 1053

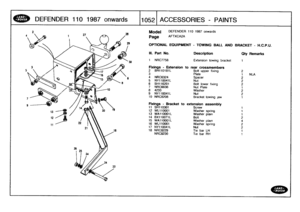

DEFENDER 110 1987 onwards 1105 :2 [ACCESSORIES - PAINTS Model Page OPTIONAL EQUIPMENT - TOWING BALL DEFENDER 110 1987 onwards AFTXCA2A AND BRACKET - H .C.P.U . III . Part No . Description t NRC7758 Extension towingbracket Fixings - Extension torear crossmembers 2 BH110181L Bolt upper fixing Qty Remarks 23 Plate 1 NLA 4 NRC6324 Spacer25 NY110041L Nut26 BH116201 Bolt lower fixing 27 NRC6636 Nut Plate 1 8 4233 Washer 2 9 NY116041L Nut210 NRC8208 Brackettowing law 1 Fixings - Bracket to...
Page 1054

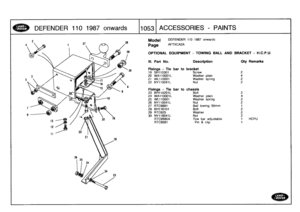

DEFENDER 1101987 onwards 110531 ACCESSORIES - PAINTS Model Page OPTIONAL EQUIPMENT - TOWING BALL AND BRACKET - H .C .P.U . III . Part No . DEFENDER 110 1987 onwards AFTXCAP-A Description City Remarks Fixings - Tie bar to bracket 19 SH110301 Screw 2 20 WA110001 L Washer plain 4 21 WL110001 Washer spring 2 22 NY110041L Nut 2 Fixings - Tie bar to chassis 23 BH110201L Bolt 2 24 WA110001L Washer plain 4 25 WL110001 Washer spring 2 26...
Page 1055

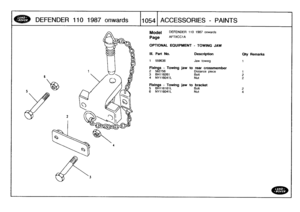

DEFENDER 110 1987 onwards 110541 ACCESSORIES - PAINTS Model Page DEFENDER 110 1987 onwards AFTXCC1A OPTIONAL EQUIPMENT - TOWING JAW 111 . Part No . Description Qty Remarks 1 559636 Jaw towing 1 Fixings - Towingjaw to rear crossmember 2 562756 Distance piece 1 3BH116261 Bolt 24 NY116041L Nut 2 Firings - Towing jaw to bracket 5 BH116161L Bolt 26 NY116041L Nut 4
Page 1056

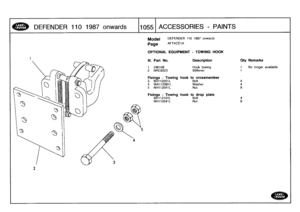

DEFENDER 110 1987 onwards 110551 ACCESSORIES - PAINTS Model Page DEFENDER 110 1987 onwards AFTXCE1A available OPTIONAL EQUIPMENT - TOWING HOOK III . Part No . Description Qty Remarks 1 246109Hook towing 1 No longer 2 NRC8323 Stiffener 1 Fixings - Towing hook to crossmember 3 BH112201L Bolt 4 4 WA112081L Washer 45 NH112041L Nut 8 Fixings - Towing hook to drop plate BH112101 L Bolt 4 NH112041L Nut 8
Page 1057

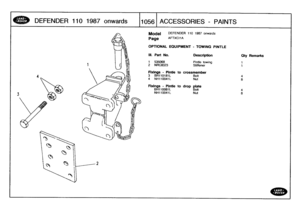

DEFENDER 1101987 onwards 1056 ACCESSORIES - PAINTS Model Page OPTIONAL EQUIPMENT - TOWING PINTLE 111 . Part No . DEFENDER 110 1987 onwards AFTXCI I A Description Qty Remarks 1 535068 Pintle towing 1 2 NRC8323 Stiffener t Fixings - Pintle to crossmember 3 BH110181L Bolt 44 NH110041L Nut 8 Fixings - Pintle to drop plate BH110081L Bolt 4 NH110041L Nut 8
Page 1058

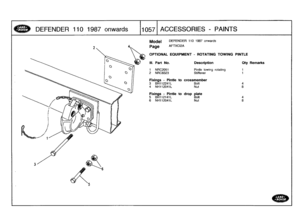

DEFENDER 110 1987 onwards 11057 ACCESSORIES - PAINTS Model Page OPTIONAL EQUIPMENT - ROTATING TOWING PINTLE Ill . Part No . 1 NRC2051 2 NRC8323 DEFENDER 110 1987 onwards AFTXCI2A Fixings - Pintle to crossmember 3 BH112241L Bolt 4 NH112041L Nut Fixings - Pintle to drop plate 5 BH112141L Bolt 6 NH112041L Nut Description Pintle towing rotating Stiffener Qty Remarks 48 48
Page 1059

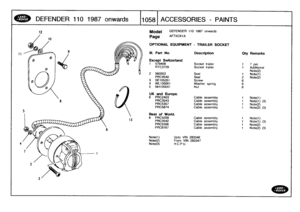

DEFENDER 11 0 1 987 onwards 110581 ACCESSORIES - PAINTS Model Page OPTIONAL EQUIPMENT - TRAILER SOCKET DEFENDER 110 1987 onwards AFTXCKIA Note(l) Upto VIN 283346 Note(2) From VIN 283347 Note(3) RC .P U . 111 . Part No . Except Switzerland Description Qty Remarks 1 579409 Socket trailer 1 7 pin RTC3729 Socket trailer 1 Additional Note(2) 2 560553 Seal 1 Note(l) PAC4540 Seal 2 Note(2) 3 SE105351 Screw 6 4 WL105001 Washer spring 65 NH105041 Nut 6 UK and Europe . 6 PRC2403 Cable...
Page 1060
DEFENDER 110 1987 onwards 1059 ACCESSORIES - PAINTS 13 DEFENDER 110 1987 onwards AFTXCK1A OPTIONAL EQUIPMENT - TRAILER SOCKET III . Part No . Description Qty Remarks 7 PRC2439 Grommet 1 8 NRC8048 Bracket 2 9 SH106251 Screw 4 10 WA106041 L Washer plain 4 11 WL106001 Washer lock 412 NH106041L Nut413 UKC6684L Tie cable 2
