Philips 9 Inch Portable Dvd Player Owners Manual

9

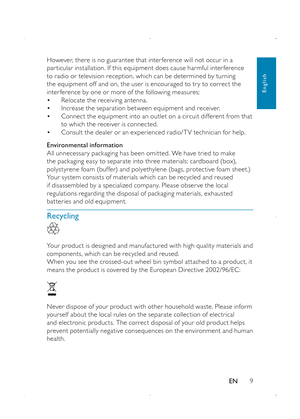

However, there is no guarantee that inter ference will not occur in a par ticular installation. If this equipment does cause harmful inter ference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to tr y to correct the inter ference by one or more of the following measures:• Relocate the receiving antenna.• Increase the separation between equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to...

10

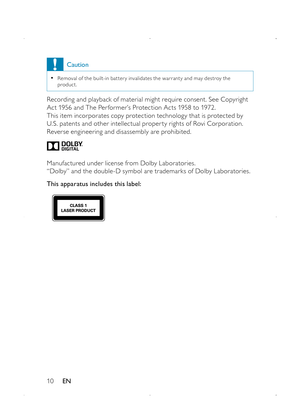

Caution
 •Removal of the built-in bat ter y invalidates the war r anty and may destroy the product.
Recording and playback of material might require consent. See Copyright Act 1956 and The Per former’s Protection Acts 1958 to 1972.This item incorporates copy protection technology that is protected by U.S. patents and other intellectual proper ty rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Manufactured under license from Dolby Laboratories.“Dolby” and the double-D...

11

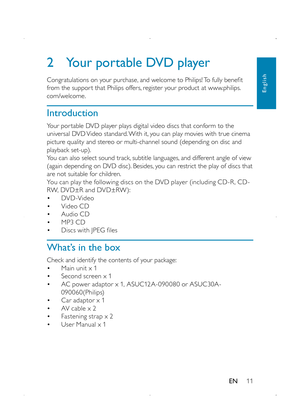

2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully benefit from the suppor t that Philips offers, register your product at www.philips.com/welcome.
Introduction
Your por table DVD player plays digital video discs that conform to the universal DVD Video standard. With it, you can play movies with true cinema picture quality and stereo or multi-channel sound (depending on disc and playback set-up). You can also select sound track, subtitle languages, and...

12

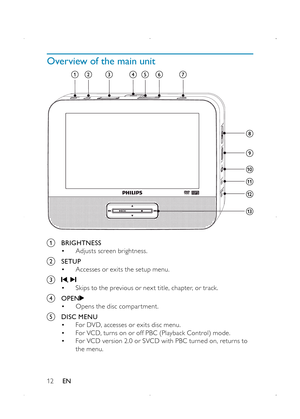

Overview of the main unit

a BRIGHTNESS• Adjusts screen brightness.
b SETUP• Accesses or exits the setup menu.
c , • Skips to the previous or nex t title, chapter, or track .
d OPEN• Opens the disc compar tment.
e DISC MENU• For DVD, accesses or exits disc menu.• For VCD, turns on or off PBC (Playback Control) mode.• For VCD version 2.0 or SVCD with PBC turned on, returns to the menu.
EN

13

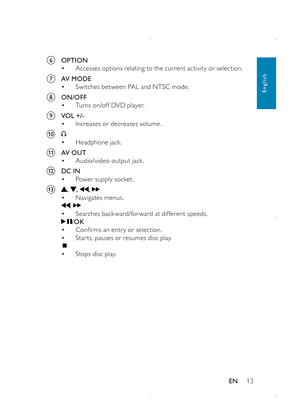

f OPTION• Accesses options relating to the current activity or selection.
g AV M O D E• Switches between PAL and NTSC mode.
h ON/OFF• Turns on/off DVD player.
i VOL +/-• Increases or decreases volume.
j • Headphone jack.
k AV O U T• Audio/video output jack .
l DC IN• Power supply socket.
m , , , • Navigates menus., • Searches backward/forward at different speeds. /OK• Confirms an entr y or selection.• Star ts, pauses or resumes disc play.
• Stops disc play.
English
EN

14

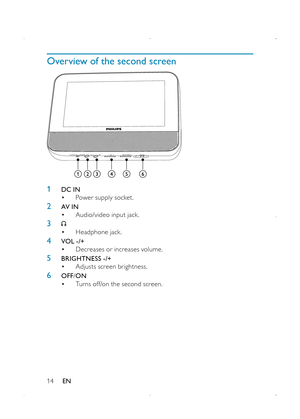

Overview of the second screen

1 DC IN• Power supply socket.
2 AV I N• Audio/video input jack .
3 • Headphone jack.
4 VOL -/+• Decreases or increases volume.
5 BRIGHTNESS -/+• Adjusts screen brightness.
6 OFF/ON• Turns off/on the second screen.
EN

15

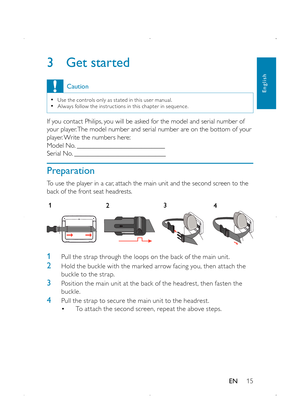

3 Get started
Caution
 •Use the controls only as stated in this user manual. •Always follow the instr uc tions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of your player. The model number and serial number are on the bottom of your player. Write the numbers here:Model No. __________________________Serial No. ___________________________
Preparation
To use the player in a car, attach the main unit and the second screen to the back of the front...

16

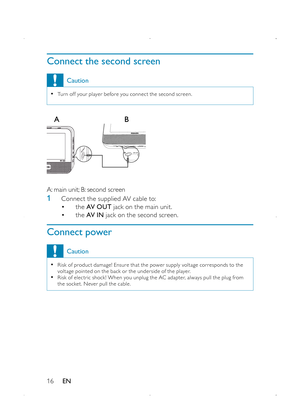

Connect the second screen
Caution
 •Tur n of f your player before you connec t the second screen.

A: main unit; B: second screen
1 Connect the supplied AV cable to: • the AV O U T jack on the main unit. • the AV I N jack on the second screen.
Connect power
Caution
 •Risk of produc t damage! Ensure that the power supply voltage cor responds to the voltage pointed on the back or the under side of the player.  •Risk of elec tric shock ! When you unplug the AC adapter, always pull the plug from the...

17

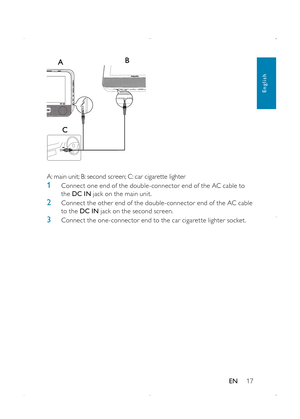

A: main unit; B: second screen; C: car cigarette lighter
1 Connect one end of the double-connector end of the AC cable to the DC IN jack on the main unit.
2 Connect the other end of the double-connector end of the AC cable to the DC IN jack on the second screen.
3 Connect the one-connector end to the car cigaret te lighter socket.
English
EN

18

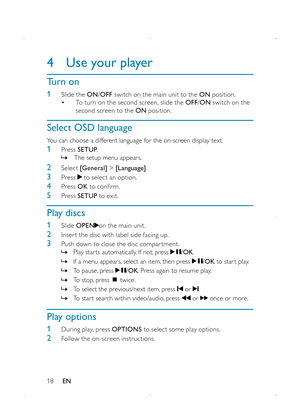

4 Use your player
Turn on
1  Slide the ON/OFF switch on the main unit to the ON position. • To turn on the second screen, slide the OFF/ON switch on the second screen to the ON position.
Select OSD language
You can choose a different language for the on-screen display text.
1 Press SETUP. » The setup menu appears.
2 Select [General] > [Language].
3 Press  to select an option.
4 Press OK to confirm.
5 Press SETUP to exit.
Play discs
1 Slide OPENon the main unit.
2 Inser t the disc with label side...
