Philips Projector PicoPix PPX3414 User Manual

Initial Operation11

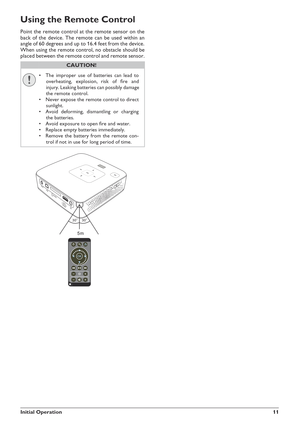

Using the Remote Control
Point the remote control at the remote sensor on the
back of the device. The remote can be used within an
angle of 60 degrees and up to 16.4 feet from the device.
When using the remote control, no obstacle should be
placed between the remote control and remote sensor.
CAUTION!
rThe improper use of batteries can lead to
overheating, explosion, risk of fire and
injury. Leaking batteries can possibly damage
the remote control.
rNever expose the remote control to...

12Philips · PPX3414

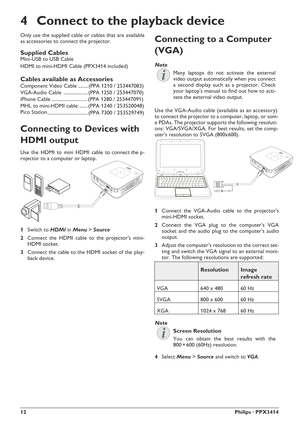

4 Connect to the playback device
Only use the supplied cable or cables that are available
as accessories to connect the projector.
Supplied Cables
Mini-USB to USB Cable
HDMI to mini-HDMI Cable (PPX3414 included)
Cables available as Accessories
Component Video Cable ........ (PPA 1210 / 253447083)
VGA-Audio Cable .................... (PPA 1250 / 253447070)
iPhone Cable ............................. (PPA 1280 / 253447091)
Connecting to Devices with
HDMI output
Use the HDMI to mini HDMI...

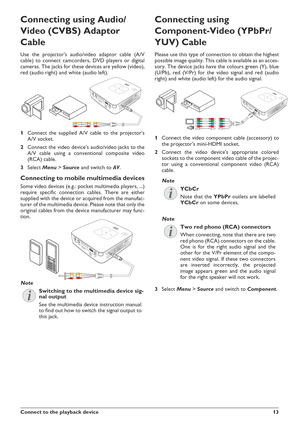

Connect to the playback device13
Connecting using Audio/
Video (CVBS) Adaptor
Cable
Use the projector's audio/video adaptor cable (A/V
cable) to connect camcorders, DVD players or digital
cameras. The jacks for these devices are yellow (video),
red (audio right) and white (audio left).
1Connect the supplied A/V cable to the projector's
A/V socket.
2Connect the video device's audio/video jacks to the
A/V cable using a conventional composite video
(RCA) cable.
3SelectMenu>Source and switch...

14Philips · PPX3414

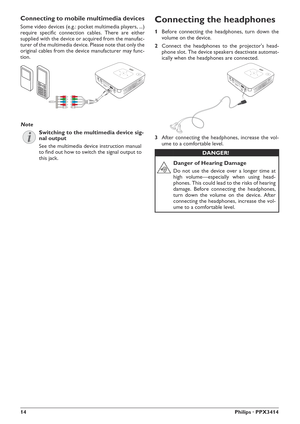

Connecting to mobilemultimedia devices
Some video devices (e.g.: pocket multimedia players, ...)
require specific connection cables. There are either
supplied with the device or acquired from the manufac-
turer of the multimedia device. Please note that only the
original cables from the device manufacturer may func-
tion.
Connecting the headphones
1Before connecting the headphones, turn down the
volume on the device.
2Connect the headphones to the projector's head-
phone slot. The...

5 1 m u i d e m e g a r o t s B S U / d r a c y r o m e M

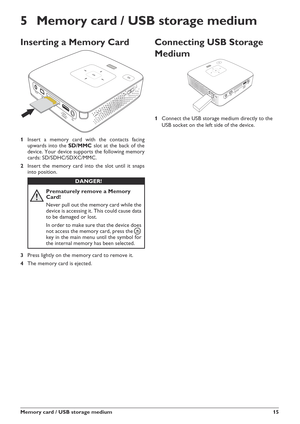

5 Memory card / USB storage medium
Inserting a Memory Card
1Insert a memory card with the contacts facing
upwards into the
slot at the back of the
device. Your device supports the following memory
cards: SD/SDHC/SDXC/MMC.
2Insert the memory card into the slot until it snaps
into position.
3Press lightly on the memory card to remove it.
4The memory card is ejected.
Connecting USB Storage
Medium
1Connect the USB storage medium directly to the
USB...

16Philips · PPX3414

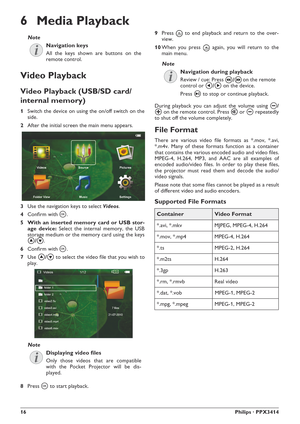

6 Media Playback
Video Playback
Video Playback (USB/SD card/
internal memory)
1Switch the device on using the on/off switch on the
side.
2After the initial screenthe main menu appears.
3Use the navigation keys to selectVideos.
4Confirm withà.
5 With an inserted memory card or USB stor-
age device:Select the internal memory, the USB
storage medium or the memory card using the keys
.
6Confirm withà.
7Use
to select the video file that you wish to
play.
8Pressàto start playback.9Press to...

Media Playback17

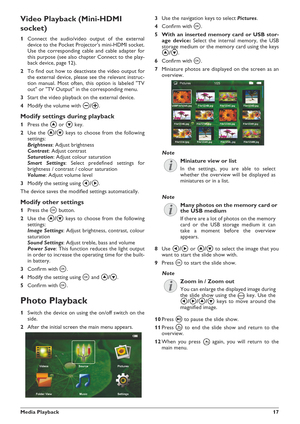

Video Playback (Mini-HDMI
socket)
1Connect the audio/video output of the external
device to the Pocket Projector's mini-HDMI socket.
Use the corresponding cable and cable adapter for
this purpose (see also chapter Connect to the play-
back device, page 12).
2To find out how to deactivate the video output for
the external device, please see the relevant instruc-
tion manual. Most often, this option is labeled "TV
out" or "TV Output" in the corresponding menu.
3Start...

18Philips · PPX3414

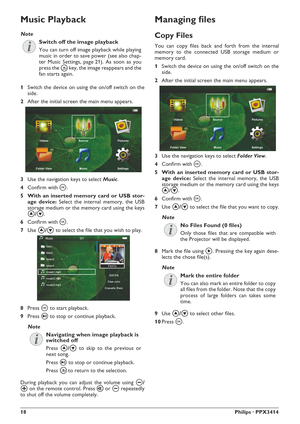

Music Playback
1Switch the device on using the on/off switch on the
side.
2After the initial screenthe main menu appears.
3Use the navigation keys to selectMusic.
4Confirm withà.
5 With an inserted memory card or USB stor-
age device:Select the internal memory, the USB
storage medium or the memory card using the keys
.
6Confirm withà.
7Use
 to select the file that you wish to play.
8Pressàto start playback.
9PressTto stop or continue playback.
During playback you can adjust the volume...

Media Playback19

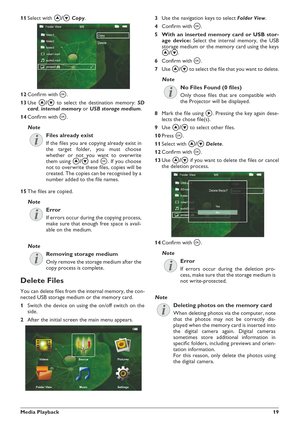

11Select withCopy.
12Confirm withà.
13Use
to select the destination memory:SD
card,internal memoryorUSB storage medium.
14Confirm withà.
15The files are copied.
Delete Files
You can delete files from the internal memory, the con-
nected USB storage medium or the memory card.
1Switch the device on using the on/off switch on the
side.
2After the initial screenthe main menu appears.3Use the navigation keys to selectFolder View.
4Confirm withà.
5 With an inserted memory card or USB stor-
age...

20Philips · PPX3414

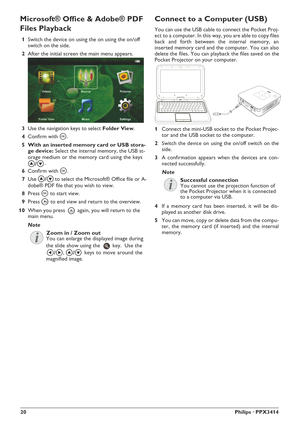

Connect to a Computer (USB)
1Connect the mini-USB socket to the Pocket Projec-
tor and the USB socket to the computer.
2Switch the device on using the on/off switch on the
side.
3A confirmation appears when the devices are con-
nected successfully.
4If a memory card has been inserted, it will be dis-
played as another disk drive.
5You can move, copy or delete data from the compu-
ter, the memory card (if inserted) and the internal
memory.
Note
Successful connection
Microsoft® Office &...
