Proxima Pro Av 9400 Projector User Manual

Multimedia Projector
ModelPro AV 9400
Pro AV 9400L (Without Lens)
nPRESENTATIONS
nWORKING SESSIONS
nTRAINING
nMULTIMEDIA
nANIMATION
nVIDEO

2
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
This Projector has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the
power outlet. Do not try to defeat this safety feature.
Intense light source. Do not stare directly into the projection lens as possible eye damage could result.
Be especially careful that children do not stare directly into the beam.
If the Projector will not be used for an extended...

PROJECTOR
(FRONT)PROJECTOR
(SIDE)
WALL
50cm
50cm
50cm 50cm
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as...

4
TABLE OF CONTENTS
PAGE
PAGE
FEATURES AND DESIGN 5
INTRODUCTION 5
COMPATIBILITY 5
IMAGE RESOLUTION 5
AUTOMATIC MULTISCANNING SYSTEM 5
SCREEN MODE 5
MULTILANGUAGE 5
UNPACKING THE PROJECTOR 5
TRADEMARKS 5
INSTALLATION 6-9
NAME OF EACH PART OF THE PROJECTOR 6
SETTING-UP THE PROJECTOR 7
MOVING THE PROJECTOR 8
POWER REQUIREMENTS 9
CONNECTING THE PROJECTOR 10-21
TERMINAL OF THE PROJECTOR 10-11
CONNECTING THE COMPUTER 12-19
CONNECTING THE VIDEO EQUIPMENT 20-21
BEFORE OPERATION 22-31
CONTROLS AND INDICATOR...

The Pro AV 9400 is a multimedia projector that combines powerful and sophisticated features with easy-to-use, intuitive
controls. Built-in multimedia features include audio, a palette of 16.77 million colors and active matrix liquid crystal display
(LCD) technology. The projector is ideal for high-performance business, training and imaging applications that demand
exceptional color quality.
The projector is compatible with many different types of personal computers and video devices, including:...

6
EXHAUST VENT
CAUTION HOT AIR!
Air blown from the exhaust vent is hot.
Observe the following when handling your
projector or choosing a location to install it.
lKeep heat-sensitive objects away from the
exhaust port.
lIf you set the projector on top of a metallic
surface, the surface will become hot because of
the hot air exhaust. Be careful when handling.
lDo not touch the cabinet near to the exhaust
vent area, and especially screws and metallic
parts. These parts will become hot while the
projector is...

200
154
26.9 (8.2 m)600
462
80.7 (24.6 m)
7
40
77115154231308462600
100150200300400
760 mm 760 mm
100
SCREEN

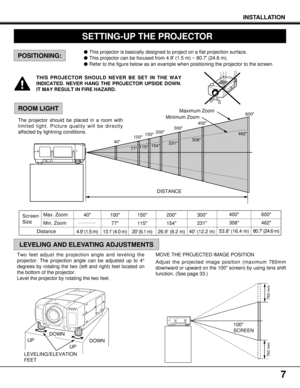

POSITIONING:
ROOM LIGHT
lThis projector is basically designed to project on a flat projection surface.
lThis projector can be focused from 4.9 (1.5 m) ~ 80.7 (24.6 m).
lRefer to the figure below as an example when positioning the projector to the screen.
The projector should be placed in a room with
limited light. Picture quality will be directly
affected by lightning conditions.Minimum...

8
Use the carry handle when moving the projector.
Replace the lens cover and rotate the leveling/elevation
feet fully clockwise when moving the projector to prevent
damage to the projector.
CAUTION  IN CARRYING OR TRANSPORTING THE PROJECTOR
lDo not drop or give a shock to the projector, otherwise damage or malfunction may result.
lWhen carrying the projector, use a Proxima recommended Carrying Case.
lDo not transport the projector by using a courier or transport service in an unsuitable transport case....

9

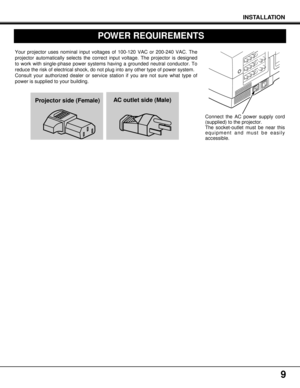

Your projector uses nominal input voltages of 100-120 VAC or 200-240 VAC. The
projector automatically selects the correct input voltage. The projector is designed
to work with single-phase power systems having a grounded neutral conductor. To
reduce the risk of electrical shock, do not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure what type of
power is supplied to your building.
Connect the AC power supply cord
(supplied) to the...

10
SIDE OF THE PROJECTOR (CONNECT THE COMPUTER)
COMPUTER INPUT-1 TERMINAL (HDB15) ANALOG
Used to connect a computer to the projector.
COMPUTER INPUT-1 TERMINAL (MDR20) DIGITAL
Used to connect a computer to the projector.
COMPUTER INPUT-2 JACKS (BNC TYPE x 5)
Used to connect a computer to the projector.
MONITOR OUTPUT TERMINAL (HDB15)
Used to connect a monitor to the projector.
COMPUTER AUDIO INPUT-1 JACKS (R and L)
Used to connect an audio output from the computer to
the projector.
COMPUTER AUDIO INPUT-2...
