Samsung Ativ Book 9 Manual

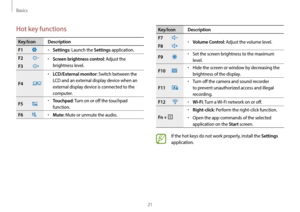

Basics
21
Key/Icon Description
F7
  •	Volume Control: Adjust the volume level.
F8
F9•	Set the screen brightness to the maximum
level.
F10
•	Hide the screen or window by decreasing the
brightness of the display.
F11
•	Turn off the camera and sound recorder
to prevent unauthorized access and illegal
recording.
F12
•	Wi-Fi: Turn a Wi-Fi network on or off.
Fn +
•	Right-click: Perform the right-click function.
•	Open the app commands of the selected
application on the
Start screen.
If the hot keys do...

Basics
22

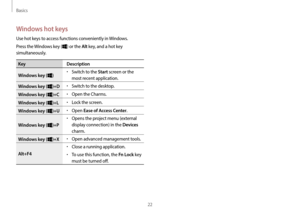

Windows hot keys
Use hot keys to access functions conveniently in Windows.
Press the Windows key (
) or the Alt key, and a hot key
simultaneously.
Key Description
Windows key ()
•	Switch to the Start screen or the
most recent application.
Windows key ()+D•	Switch to the desktop.
Windows key ()+C•	Open the Charms .
Windows key ()+L•	Lock the screen.
Windows key ()+U•	Open Ease of Access Center.
Windows key ()+P
•	Opens the project menu (external
display connection) in the
Devices
charm....

Basics
23
Clicking function
Tap the touchpad or press the left touchpad button.
or
TapClick
Double-clicking function
Double-tap the touchpad or press the left touchpad button twice.
or
Tap-tap Click-click
Touchpad
Use the touchpad to move the cursor or select an item. The left
and right buttons of the touchpad act the same as the left and
right buttons of a mouse.
•	Use the touchpad only with fingers. The touchpad will
not recognize actions of other objects.
•	Images and the touchpad layout may...

Basics
24
Gesture functions
Swiping
•	To open the Charms, swipe from the right edge of the
touchpad to the middle.
•	To open the most-recently used application, swipe from the
left edge of the touchpad to the middle.
Right-clicking function
To right-click an item, press the right touchpad button.
Click
Dragging function
To move an icon or an app tile to a desired location, press and hold
it and then drag it to the target position with the left touchpad
button pressed.

Basics
25
Pinching
To zoom in, spread two fingers apart on a website, map, or image.
Pinch to zoom out.
Gesture functions using three or more fingers on the
touchpad are not available.
•	To scroll up, down, left or right, swipe with two fingers on the
touchpad.
or

Basics
26
LCD brightness
Adjust the LCD brightness to reduce eye strain and save power.
Controlling with keyboard
•	To dim the LCD screen, hold down the Fn key and press the
F2 key.
+
•	To brighten the LCD screen, hold down the Fn  key and press
the
F3 key.
+
Configuring touchpad gestures
Configure touchpad gestures to use the touchpad more efficiently.
Open the Charms and select the
Settings charm → Change PC
settings
 → PC and devices → Mouse and touchpad. Then, turn
the desired option on or...

Basics
27
Changing display mode
Set the optimal conditions for the screen, based on the activity.
1 On the Start screen, select .
2 Select Settings.
3 Select Display → an option.
•	Adapt Display: Optimizes the screen automatically for the
currently running program.
•	Dynamic: Makes scenes more vivid and clear.
•	Standard: Appropriate for normal environments and
convenient for most situations.
•	Photo Editing: Appropriate for viewing photos.
•	Reading mode: Appropriate for reading documents.
Controlling...

Basics
28
•	To mute or unmute the volume, hold down the Fn key and
press the
F6 key.
+
Controlling with Charms
Open the Charms , select the Settings charm → , and drag the
slider.
Volume
Adjust the system volume or sound volume when playing music
or video.
Controlling with keyboard
•	To turn down the volume, hold down the Fn  key and press the
F7 key.
+
•	To turn up the volume, hold down the Fn key and press the
F8 key.
+

Basics
29
Learning the BIOS screen
The BIOS setup screen appears as shown below.
Aptio Setup Utility - Copy (C) 2012 American Megatrends, Inc.System Date > System Time >
SATA Port 1
   XXXX
CPU Vender      XXXX
CPU Type Core    XXXX
CPU Speed      XXXX
CPU VT (VT-x)    XXXX
Total Memory      XXXX
BIOS Version     XXXX
MICOM Version    XXXX
Number Name
•	Setup items
•	Setup tools
	–Help: View the help for BIOS set up.
	–Default: Return to default settings.
	–Restore: Cancel changes.
	–Save: Save...

Basics
30
BIOS setup keys
KeyDescription
 / •	Change values.
 / •	Move to another menu.
Enter
•	Select an item or enter a sub-menu.
Space
•	Change the slide button.
Esc
•	Return to a higher level menu or to the Exit
menu.
F1
•	View the setup help.
F3
•	Load the previous settings.
F9
•	Load the default settings.
F10
•	Save changes and exit the BIOS setup.
Number Name
•	Setup menu
	–SysInfo: View the basic specifications of
the computer.
	–Advanced: Configure the chipsets and
additional functions....
