Samsung Ativ Book 9 Manual
Here you can view all the pages of manual Samsung Ativ Book 9 Manual. The Samsung manuals for Notebook are available online for free. You can easily download all the documents as PDF.
Page 41
Applications 41 Using ATIV Help 1 On a smartphone, tap ATIV Help. 2 On the ATIV HELP main screen, select the desired menu. 3 Select a menu and then a desired topic from the available content that appears. You may incur additional charges when you access content. ATIV Help (Self-help application solutions) Use ATIV Help to access help-related content for Samsung computers from a smartphone. Watch the ATIV Help videos to become familiar with new functions or to find solutions to problems. ATIV Help...
Page 42
Applications 42 MenuDescription Start menu • The start menu used in this device is similar to the start menu used in earlier versions of Windows 8.1. • Use the start menu to easily access various programs or settings, or to turn off the computer. Samsung Utilities • Launch software provided for Samsung computers. Quick Starter Use Quick Starter to easily launch frequently used software from the desktop. • Quick Starter may not be available or the application version may differ depending on the...
Page 43
Applications 43 Playing another video while playing the current video file 1 Right-click on the screen, or swipe downwards from the top edge. A list of videos will appear at the top of the screen. 2 Select a video to play. S Player+ A variety of file types, including multimedia formats, are available with S Player+. 1 On the Start screen, select S Player+. 2 Click to play a file. Only files in the Video or Music folder are available for playback. Move the selected file to a corresponding folder. •...

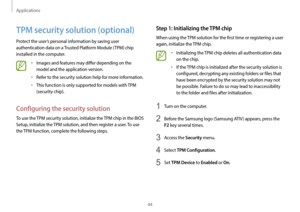

Page 44
Applications 44 Step 1: Initializing the TPM chip When using the TPM solution for the first time or registering a user again, initialize the TPM chip. • Initializing the TPM chip deletes all authentication data on the chip. • If the TPM chip is initialized after the security solution is configured, decrypting any existing folders or files that have been encrypted by the security solution may not be possible. Failure to do so may lead to inaccessibility to the folder and files after initialization....
Page 45
Applications 45 Step 2: Installing the TPM solution Install the TPM solution according to the procedures below. • Descriptions are based on the SW Update. • This solution is provided only for models with Recovery or the SW Update application. 1 Run SW Update. 2 Select All Software. 3 Select TPM Host SW → Install. If the system software media is supplied with the product, install the application by using the system software media. (only when supplied) 4 Follow the on-screen instructions to complete...
Page 46
Applications 46 3 When the initialization wizard window appears, click Next. • As recommended by the initialization wizard, backup your emergency recovery file to an external storage device to use the TPM more safely. • If the status not initialized message appears, select Ye s. Step 3: Registering a user Register a user according to the procedures below. 1 Right-click on the taskbar. 2 Run the Security Platform Management item with the admin authority, click the User Settings tab, and initialize...

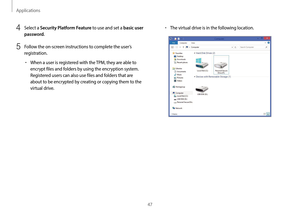

Page 47
Applications 47 • The virtual drive is in the following location.4 Select a Security Platform Feature to use and set a basic user password . 5 Follow the on-screen instructions to complete the user’s registration. • When a user is registered with the TPM, they are able to encrypt files and folders by using the encryption system. Registered users can also use files and folders that are about to be encrypted by creating or copying them to the virtual drive.
Page 48
Applications 48 2 Select the files or folders to encrypt and select OK. The dialog box shown below appears only when the folder is encrypted.Encrypting folders and files Encrypt folders and files with the Encrypting Files System (EFS). EFS is available for the following operating systems: • Windows 7 Professional / Enterprise / Ultimate • Windows 8 Pro / Enterprise • Windows 8.1 Pro / Enterprise 1 Right-click a folder or file and then select Encrypt.
Page 49
Applications 49 4 The color of the encrypted folder or name of the encrypted file changes to green. Decrypting folders and files Right-click an encrypted folder or file and then select Decrypt. 3 When the user authentication window appears, enter the Basic User Password you entered when the user was registered and select OK.

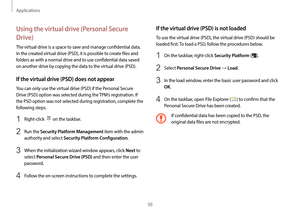

Page 50
Applications 50 If the virtual drive (PSD) is not loaded To use the virtual drive (PSD), the virtual drive (PSD) should be loaded first. To load a PSD, follow the procedures below. 1 On the taskbar, right-click Security Platform (). 2 Select Personal Secure Drive → Load. 3 In the load window, enter the basic user password and click OK. 4 On the taskbar, open File Explorer () to confirm that the Personal Secure Drive has been created. If confidential data has been copied to the PSD, the original data...
