Samsung Ht X715t User Manual

1
ENG

●  PLAYBACK

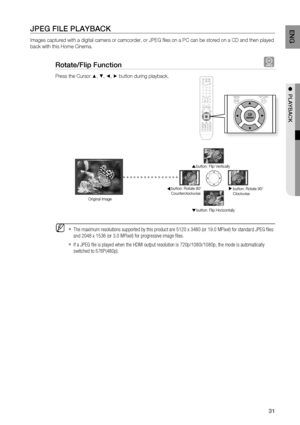

JPEG FILE PLAYBACK
Images captured with a digital camera or camcorder, or JPEG fi les on a PC can be stored on a CD and then played
back with this Home Cinema.
rotate/Flip Function G
Press the Cursor $, %, _, + button during playback.
The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG fi les
and 2048 x 1536 (or 3.0 MPixel) for progressive image fi les.
If a JPEG fi le is played when the HDMI output resolution is...



playback

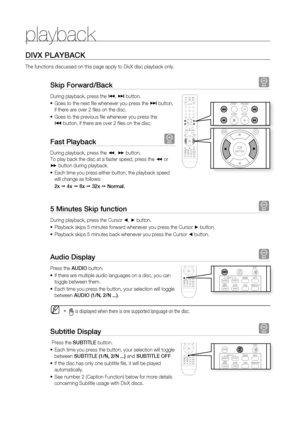

DIVX PLAYBACK
The functions discussed on this page apply to DivX disc playback only.
Skip Forward/Back D
During playback, press the [, ] button.
Goes to the next fi le whenever you press the ] button,
if there are over 2 fi les on the disc.
Goes to the previous fi le whenever you press the
[ button, if there are over 2 fi les on the disc.
Fast Playback D
During playback, press the (, ) button.
To play back the disc at a faster speed, press the ( or
) button during playback....


ENG

●  PLAYBACK

If the Disc has more than One Subtitle File D
If the disc has more than one subtitle fi le, the default
subtitle may not match the movie and you will have to
select your subtitle language as follows:
In Stop mode, press the Cursor $, % button, select the
desired subtitle () from the TV screen, and then
press the ENTEr button.
When you select the desired DivX fi le from the TV
screen, the movie will be played normally.
DivX(Digital internet video express)
DivX is a...

4

playback

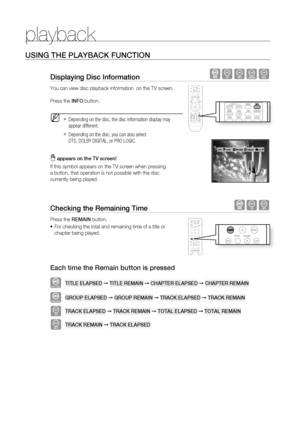

USING THE PLAYBACK FUNCTION
Displaying Disc Information  BAGD
You can view disc playback information  on the TV screen.
Press the INFO button.
Depending on the disc, the disc information display may
appear different.
Depending on the disc, you can also select
DTS, DOLBY DIGITAL, or PRO LOGIC.
 appears on the TV screen!
If this symbol appears on the TV screen when pressing
a button, that operation is not possible with the disc
currently being played.
Checking the remaining Time...


ENG

●  PLAYBACK

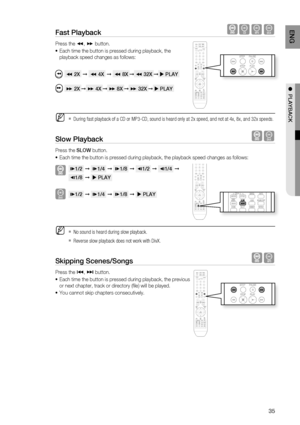

Fast Playback  BAD
Press the (, ) button.
Each time the button is pressed during playback, the
playback speed changes as follows:
  ( 2X  ➞  ( 4X  ➞  ( 8X ➞ ( 32X ➞  PLAY
  ) 2X ➞ ) 4X ➞ ) 8X ➞ ) 32X ➞  PLAY
 During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds.
Slow Playback  D
Press the SLOW button.
Each time the button is pressed during playback, the playback speed changes as follows:
 *1/2  ➞  *1/4  ➞  *1/8  ➞...



playback

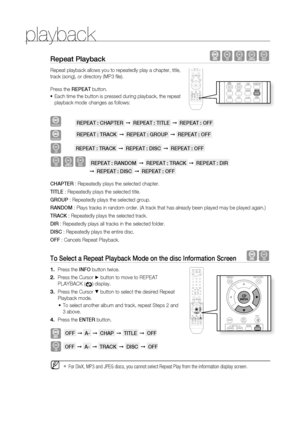

repeat Playback  BAGD
Repeat playback allows you to repeatedly play a chapter, title,
track (song), or directory (MP3 fi le).
Press the rEPEAT button.
Each time the button is pressed during playback, the repeat
playback mode  changes as follows:
DVD-VIDEO          rEPEAT : CHAPTEr  ➞  rEPEAT : TITLE  ➞  rEPEAT : OFF
DVD-AUDIO                      rEPEAT : TrACK  ➞  rEPEAT : GrOUP  ➞  rEPEAT : OFF
B         rEPEAT : TrACK  ➞  rEPEAT : DISC  ➞  rEPEAT : OFF
BGD    rEPEAT :...


ENG

●  PLAYBACK

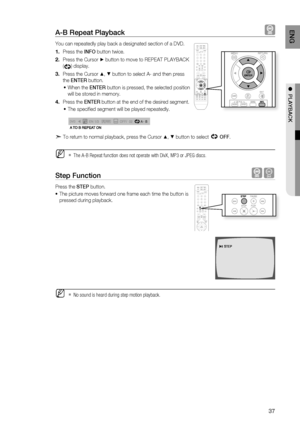

A-B repeat Playback
You can repeatedly play back a designated section of a DVD.
Press the INFO button twice.
Press the Cursor + button to move to REPEAT PLAYBACK
() display.
Press the Cursor $, % button to select A- and then press
the ENTEr button.
When the ENTEr button is pressed, the selected position
will be stored in memory.
Press the ENTEr button at the end of the desired segment.
The specifi ed segment will be played repeatedly.
A -
A -?
A - B
REPEAT : AÐ
A TO B...



playback

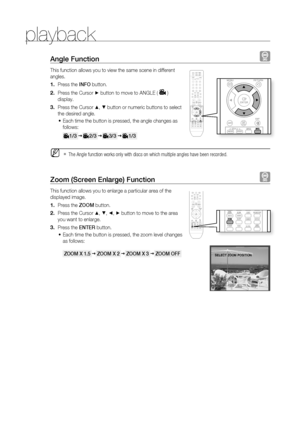

Angle Function
This function allows you to view the same scene in different
angles.
Press the INFO button.
Press the Cursor + button to move to ANGLE ()
display.
Press the Cursor $, % button or numeric buttons to select
the desired angle.
Each time the button is pressed, the angle changes as
follows:
     1/3      2/3      3/3      1/3
The Angle function works only with discs on which multiple angles have been recorded.
Zoom (Screen Enlarge) Function
This function...


ENG

●  PLAYBACK

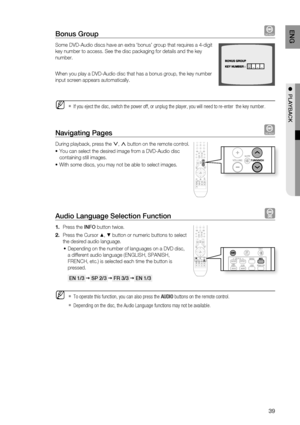

Bonus Group DVD-AUDIO
Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit
key number to access. See the disc packaging for details and the key
number.
When you play a DVD-Audio disc that has a bonus group, the key number
input screen appears automatically.
If you eject the disc, switch the power off, or unplug the player, you will need to re-enter  the key number.
Navigating Pages DVD-AUDIO
During playback, press the ., , button on the remote...

40

playback

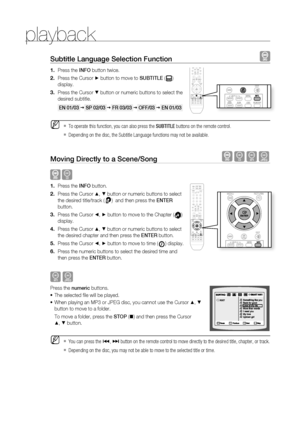

Subtitle Language Selection Function
Press the INFO button twice.
Press the Cursor + button to move to SUBTITLE ()
display.
Press the Cursor % button or numeric buttons to select the
desired subtitle.
 EN 01/03  SP 02/03  Fr 03/03  OFF/03  EN 01/03
To operate this function, you can also press the SUBTITLE buttons on the remote control.
Depending on the disc, the Subtitle Language functions may not be available.
Moving Directly to a Scene/Song  BAG
 B
Press the INFO button.
Press...
