●  SYSTEM   SETUP

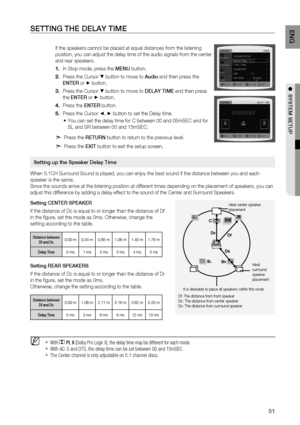

SETTING   THE  D ELAY  T IME
If the speakers cannot be placed at equal distances from the listening
position, you can adjust the delay time of the audio signals from the center
and rear speakers.
In Stop mode, press the MENU button.
Press the Cursor % button to move to Audio and then press the
ENTE
r
 or + button.
Press the Cursor % button to move to DELAY TIME and then press
the  ENTE r or + button.
Press the  ENTE r button.
Press the Cursor _, + button to set the...



system setup

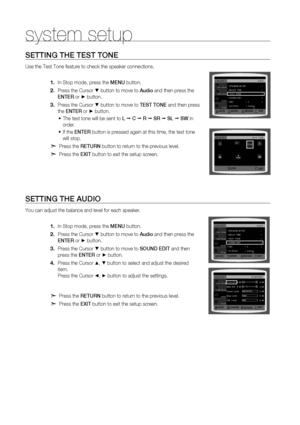

SETTING   THE  T EST  T ONE
Use the Test Tone feature to check the speaker connections.
In Stop mode, press the MENU button.
Press the Cursor % button to move to Audio and then press the
ENTE
r
 or + button.
Press the Cursor % button to move to TEST TONE and then press
the  ENTE r or + button.
The test tone will be sent to L  C   r   S r   SL  SW in
order.
If the ENTE r button is pressed again at this time, the test tone
will stop.
d Press the r ETU r N button to...


ENG

●  SYSTEM SETUP

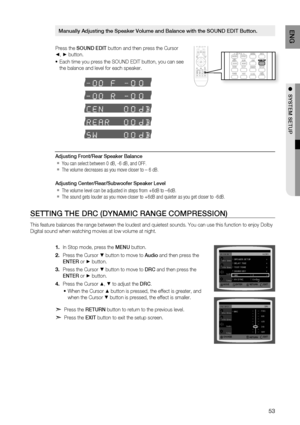

Press the SOUND EDIT button and then press the Cursor
_, + button.
Each time you press the SOUND EDIT button, you can see
the balance and level for each speaker.
Adjusting Front/rear Speaker Balance
You can select between 0 dB, -6 dB, and OFF.
The volume decreases as you move closer to – 6 dB.
Adjusting Center/rear/Subwoofer Speaker Level
The volume level can be adjusted in steps from +6dB to –6dB.
The sound gets louder as you move closer to +6dB and quieter as you get...

4

system setup

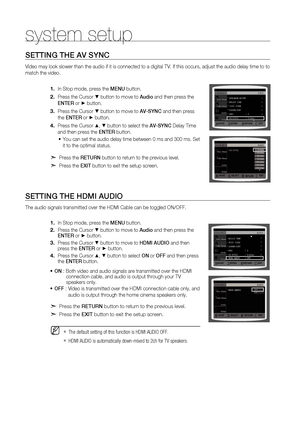

S ETTING   THE  AV SYNC
Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to
match the video.
In Stop mode, press the MENU button.
Press the Cursor % button to move to Audio and then press the
ENTE
r
 or + button.
Press the Cursor % button to move to AV-SYNC and then press
the  ENTE r or + button.
Press the Cursor $, % button to select the AV-SYNC Delay Time
and then press the  ENTE r button.
You can set the...


ENG

●  SYSTEM SETUP

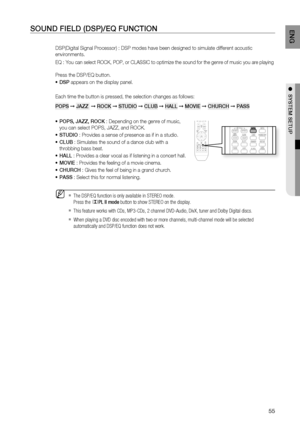

SOUND FIELD (DSP)/EQ FUNCTION
DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic
environments.
EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing
Press the DSP/EQ button.
DSP appears on the display panel.
Each time the button is pressed, the selection changes as follows:
POPS ➞ JAZZ  ➞ rOCK ➞ STUDIO ➞ CLUB ➞ HALL ➞ MOVIE ➞ CHUrCH ➞ PASS
POPS, JAZZ, rOCK : Depending on the genre...



system setup

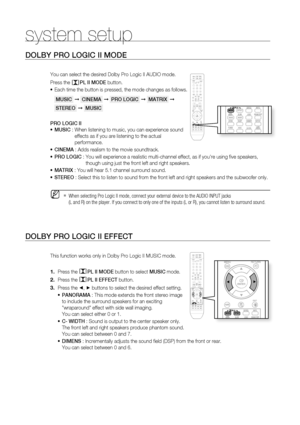

DOLBY PrO LOGIC II MODE
You can select the desired Dolby Pro Logic II AUDIO mode.
Press the PL II MODE button.
Each time the button is pressed, the mode changes as follows.
 MUSIC  ➞  CINEMA  ➞  PrO LOGIC  ➞  MATrIX  ➞
 STErEO  ➞  MUSIC
PrO LOGIC II
MUSIC : When listening to music, you can experience sound
  effects as if you are listening to the actual
  performance.
CINEMA : Adds realism to the movie soundtrack.
PrO LOGIC :  You will experience a realistic...


ENG

●  SYSTEM SETUP

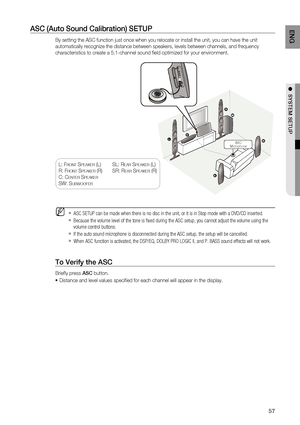

ASC (Auto Sound Calibration) SETUP
By setting the ASC function just once when you relocate or install the unit, you can have the unit
automatically recognize the distance between speakers, levels between channels, and frequency
characteristics to create a 5.1-channel sound fi eld optimized for your environment.
    ASC SETUP can be made when there is no disc in the unit, or it is in Stop mode with a DVD/CD inserted.
Because the volume level of the tone is fi xed during...



system setup
ASC (Auto Sound Calibration) SETUP
Plug the ASC microphone into the ASC input jack.
Place the ASC microphone at the listening position.
Press ASC button.
To create the optimal 5.1 channel sound fi eld, the
selections are in the following sequence:
L ➞ C ➞ r ➞ Sr ➞ SL ➞ SW
When the message "REMOVE MIC" appears in the display,
unplug the ASC microphone.
    Setting the ASC function takes about 3 minutes.
To cancel the ASC (Auto Sound Calibration) setup, press ASC...


ENG

●  rADIO
radio

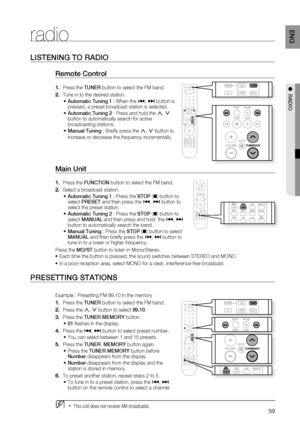

LISTENING TO rADIO
remote Control
Press the TUNEr button to select the FM band.
Tune in to the desired station.
Automatic Tuning 1 : When the [, ] button is pressed, a preset broadcast station is selected.
Automatic Tuning 2 : Press and hold the ,, . button to automatically search for active broadcasting stations.
Manual Tuning : Briefl y press the ,, . button to
increase or decrease the frequency incrementally.
Main Unit
Press the FUNCTION button to select the FM...

0

convenient function

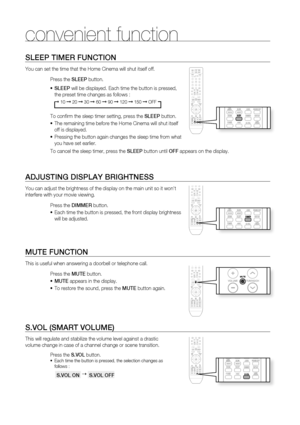

SLEEP TIMEr FUNCTION
You can set the time that the Home Cinema will shut itself off.
Press the SLEEP button.
SLEEP will be displayed. Each time the button is pressed,
the preset time changes as follows :
➞ 10 ➞ 20 ➞ 30 ➞ 60 ➞ 90 ➞ 120 ➞ 150 ➞ OFF
To confi rm the sleep timer setting, press the SLEEP button.
The remaining time before the Home Cinema will shut itself
off is displayed.
Pressing the button again changes the sleep time from what
you have set earlier.
To cancel...
