Samsung Television ES7100 User Manual

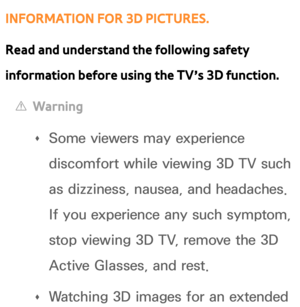

INFORMATION FOR 3D PICTURES.
Read and understand the following safety
information before using the TV’s 3D function.

[Warning

ΠSome viewers may experience
discomfort while viewing 3D TV such
as dizziness, nausea, and headaches.
If you experience any such symptom,
stop viewing 3D TV, remove the 3D
Active Glasses, and rest.

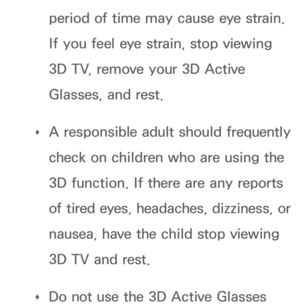

ΠWatching 3D images for an extended

period of time may cause eye strain.
If you feel eye strain, stop viewing
3D TV, remove your 3D Active
Glasses, and rest.

ΠA responsible adult should frequently
check on children who are using the
3D function. If there are any reports
of tired eyes, headaches, dizziness, or
nausea, have the child stop viewing
3D TV and rest.

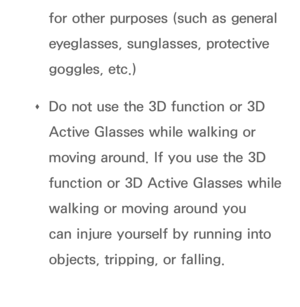

ΠDo not use the 3D Active Glasses

for other purposes (such as general
eyeglasses, sunglasses, protective
goggles, etc.)

ΠDo not use the 3D function or 3D
Active Glasses while walking or
moving around. If you use the 3D
function or 3D Active Glasses while
walking or moving around you
can injure yourself by running into
objects, tripping, or falling.

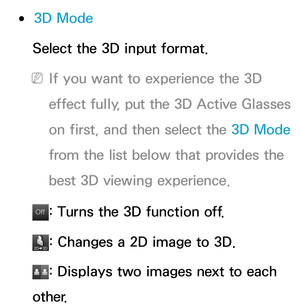

●3D Mode
Select the 3D input format.

NIf you want to experience the 3D
effect fully, put the 3D Active Glasses
on first, and then select the 3D Mode
from the list below that provides the
best 3D viewing experience.
Of f
Of f: Turns the 3D function off.
: Changes a 2D image to 3D.
: Displays two images next to each
other.

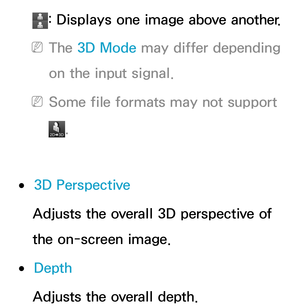

: Displays one image above another.

NThe 3D Mode  may differ depending
on the input signal.

NSome file formats may not support
.

●3D Perspective
Adjusts the overall 3D perspective of
the on-screen image.

●Depth
Adjusts the overall depth.

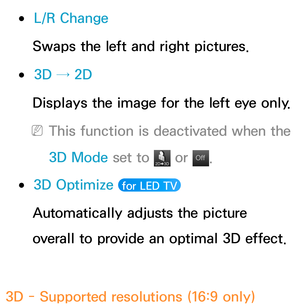

●L/R Change
Swaps the left and right pictures.

●3D → 2D
Displays the image for the left eye only.

NThis function is deactivated when the
3D Mode  set to
 or Of f
Of f.

●3D Optimize   for LED TV
Automatically adjusts the picture
overall to provide an optimal 3D effect.

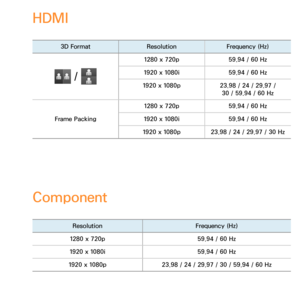

3D - Supported resolutions (16:9 only)

HDMI
3D FormatResolutionFrequency (Hz)
 /
1280 x 720p 59.94 / 60 Hz
1920 x 1080i 59.94 / 60 Hz
1920 x 1080p 23.98 / 24 / 29.97 /
30 / 59.94 / 60 Hz
Frame Packing 1280 x 720p
59.94 / 60 Hz
1920 x 1080i 59.94 / 60 Hz
1920 x 1080p 23.98 / 24 / 29.97 / 30 Hz
Component
Resolution Frequency (Hz)
1280 x 720p 59.94 / 60 Hz
1920 x 1080i 59.94 / 60 Hz
1920 x 1080p 23.98 / 24 / 29.97 / 30 / 59.94 / 60 Hz

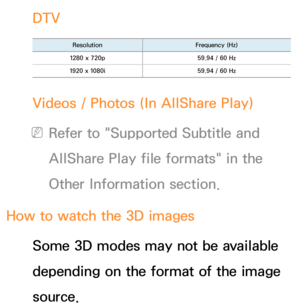

DTV
ResolutionFrequency (Hz)
1280 x 720p 59.94 / 60 Hz
1920 x 1080i 59.94 / 60 Hz
Videos / Photos (In  AllShare Play )

NRefer to "Supported Subtitle and
AllShare Play  file formats" in the
Other Information section.
How to watch the 3D images Some 3D modes may not be available
depending on the format of the image
source.

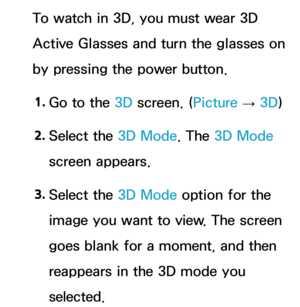

To watch in 3D, you must wear 3D
Active Glasses and turn the glasses on
by pressing the power button.1.
Go to the 3D screen. ( Picture
→ 3D)
2.
Select  the  3D Mode. The 3D Mode
screen appears.
3.
Select  the  3D Mode option for the
image you want to view. The screen
goes blank for a moment, and then
reappears in the 3D mode you
selected.

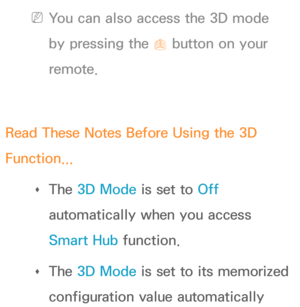

NYou can also access the 3D mode
by pressing the  X button on your
remote.
Read These Notes Before Using the 3D
Function...
ΠThe 3D Mode
 is set to Off
automatically when you access
Smart Hub  function.

ΠThe 3D Mode
 is set to its memorized
configuration value automatically
