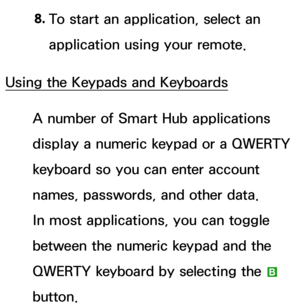

8.
To start an application, select an
application using your remote.
Using the Keypads and Keyboards A number of Smart Hub applications
display a numeric keypad or a QWERTY
keyboard so you can enter account
names, passwords, and other data.
In most applications, you can toggle
between the numeric keypad and the
QWERTY keyboard by selecting the  b
button.

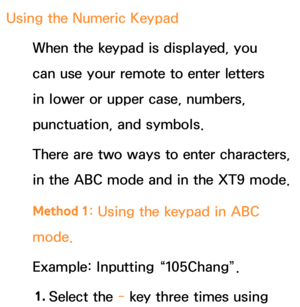

Using the Numeric Keypad
When the keypad is displayed, you
can use your remote to enter letters
in lower or upper case, numbers,
punctuation, and symbols.
There are two ways to enter characters,
in the ABC mode and in the XT9 mode.
Method 1 : Using the keypad in ABC
mode.
Example: Inputting “105Chang”.
1.

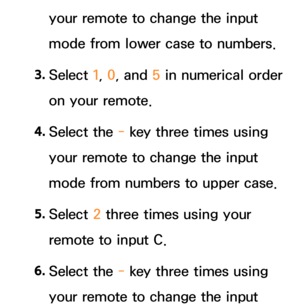

Select  the  - key three times using

your remote to change the input
mode from lower case to numbers.
3.
Select  1, 0, and  5 in numerical order
on your remote.
4.
Select  the  - key three times using
your remote to change the input
mode from numbers to upper case.
5.
Select  2 three times using your
remote to input C.
6.
Select  the  - key three times using
your remote to change the input

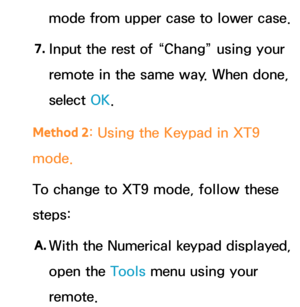

mode from upper case to lower case.
7.
Input the rest of “Chang” using your
remote in the same way. When done,
select  OK.
Method 2 : Using the Keypad in XT9
mode.
To change to XT9 mode, follow these
steps:
A.
  With the Numerical keypad displayed,
open the Tools menu using your
remote.

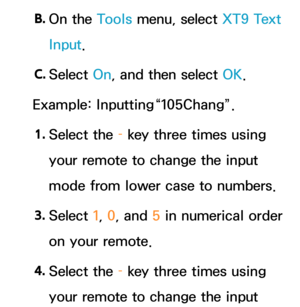

B.
On  the  Tools menu, select XT9 Text
Input.
C.
Select  On, and then select OK.
Example: Inputting“105Chang”.
1.
Select  the  – key three times using
your remote to change the input
mode from lower case to numbers.
3.
Select  1, 0, and  5 in numerical order
on your remote.

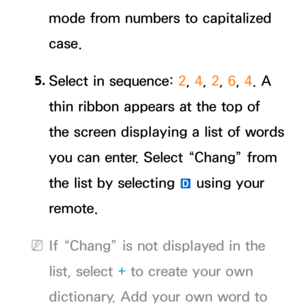

4.
Select  the  – key three times using
your remote to change the input

mode from numbers to capitalized
case.
5.
Select in sequence:  2, 4, 2, 6, 4. A
thin ribbon appears at the top of
the screen displaying a list of words
you can enter. Select “Chang” from
the list by selecting  } using your
remote.

NIf “Chang” is not displayed in the
list, select + to create your own
dictionary. Add your own word to

your dictionary.

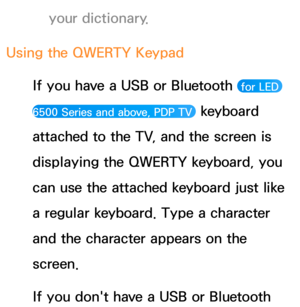

Using the QWERTY Keypad If you have a USB or Bluetooth
 for LED
6500 Series and above, PDP TV
 keyboard
attached to the TV, and the screen is
displaying the QWERTY keyboard, you
can use the attached keyboard just like
a regular keyboard. Type a character
and the character appears on the
screen.

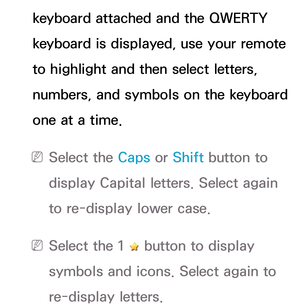

If you don't have a USB or Bluetooth

keyboard attached and the QWERTY
keyboard is displayed, use your remote
to highlight and then select letters,
numbers, and symbols on the keyboard
one at a time.

N Select  the  Caps or Shift button to
display Capital letters. Select again
to re-display lower case.

N Select the 1  button to display
symbols and icons. Select again to
re-display letters.

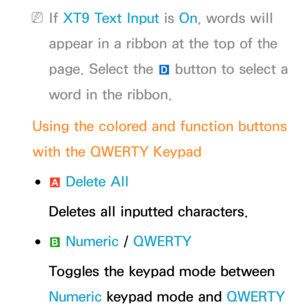

NIf  XT9 Text Input is On, words will
appear in a ribbon at the top of the
page. Select the  } button to select a
word in the ribbon.
Using the colored and function buttons
with the QWERTY Keypad

●a  Delete All
Deletes all inputted characters.

●b  Numeric
 / QWERTY
Toggles the keypad mode between
Numeric  keypad mode and  QWERTY

mode.

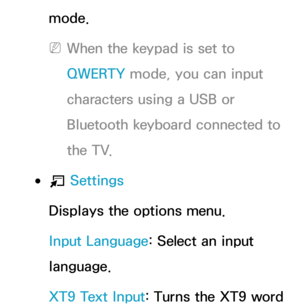

NWhen the keypad is set to
QWERTY mode, you can input
characters using a USB or
Bluetooth keyboard connected to
the TV.

●T  Settings
Displays the options menu.
Input Language: Select an input
language.
XT9 Text Input: Turns the XT9 word
