Sharp SF 2530 User Manual

49
GENERAL INFORMATION
SUPPLIES

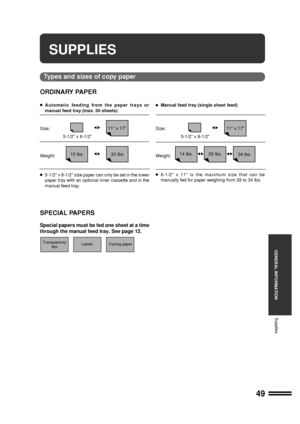

 Types and sizes of copy paper
ORDINARY PAPER
lAutomatic feeding from the paper trays or
manual feed tray (max. 50 sheets)lManual feed tray (single sheet feed)
Size: Size:
Weight: Weight:
l5-1/2 x 8-1/2 size paper can only be set in the lower
paper tray with an optional inner cassette and in the
manual feed tray.l8-1/2 x 11 is the maximum size that can be
manually fed for paper weighing from 28 to 34 lbs.
SPECIAL PAPERS
Special papers must be fed one sheet at a time...

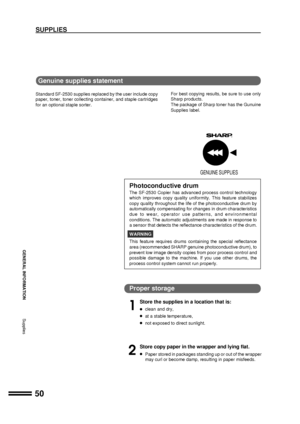

50
GENERAL INFORMATION
Supplies
SUPPLIES
Genuine supplies statement
Standard SF-2530 supplies replaced by the user include copy
paper, toner, toner collecting container, and staple cartridges
for an optional staple sorter.For best copying results, be sure to use only
Sharp products.
The package of Sharp toner has the Gunuine
Supplies label.
GENUINE SUPPLIES
Proper storage
1
Store the supplies in a location that is:
lclean and dry,
lat a stable temperature,
lnot exposed to direct sunlight.
2
Store copy...

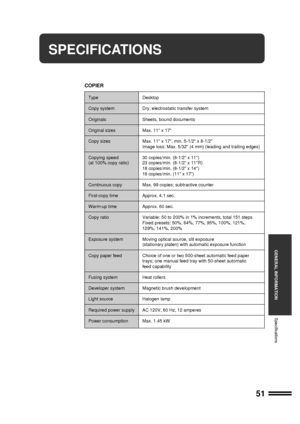

51
GENERAL INFORMATION
SPECIFICATIONS
Specifications
COPIER
Type Desktop
Copy system Dry, electrostatic transfer system
Originals Sheets, bound documents
Original sizes Max. 11 x 17
Copy sizes Max. 11 x 17, min. 5-1/2 x 8-1/2
Image loss: Max. 5/32 (4 mm) (leading and trailing edges)
Copying speed 30 copies/min. (8-1/2 x 11)
(at 100% copy ratio) 23 copies/min. (8-1/2 x 11R)
18 copies/min. (8-1/2 x 14)
16 copies/min. (11 x 17)
Continuous copy Max. 99 copies; subtractive counter
First-copy time Approx. 4.1...

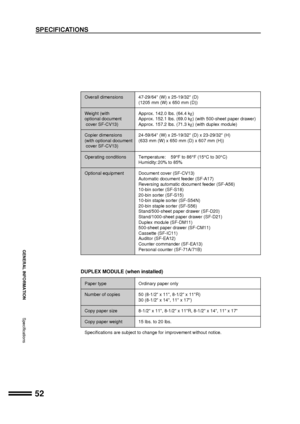

52
GENERAL INFORMATION
SPECIFICATIONS
Overall dimensions 47-29/64 (W) x 25-19/32 (D)
(1205 mm (W) x 650 mm (D))
Weight (with Approx. 142.0 lbs. (64.4 kg)
optional document Approx. 152.1 lbs. (69.0 kg) (with 500-sheet paper drawer)
 cover SF-CV13) Approx. 157.2 lbs. (71.3 kg) (with duplex module)
Copier dimensions 24-59/64 (W) x 25-19/32 (D) x 23-29/32 (H)
(with optional document (633 mm (W) x 650 mm (D) x 607 mm (H))
 cover SF-CV13)
Operating conditions Temperature: 59°F to 86°F (15°C to 30°C)
Humidity:...

53
ADF (SF-A17)/RADF (SF-A56)
ADF (SF-A17)/RADF (SF-A56)
OPTIONAL EQUIPMENT

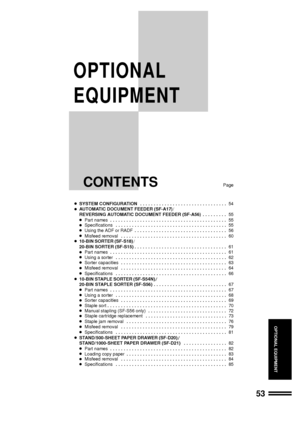

CONTENTSPage
lSYSTEM CONFIGURATION................................54lAUTOMATIC DOCUMENT FEEDER (SF-A17)
/ // /
/
REVERSING AUTOMATIC DOCUMENT FEEDER (SF-A56).........55lPart names...........................................55lSpecifications.........................................55lUsing the ADF or RADF..................................56lMisfeed removal.......................................60l10-BIN SORTER (SF-S18)/ // /
/...

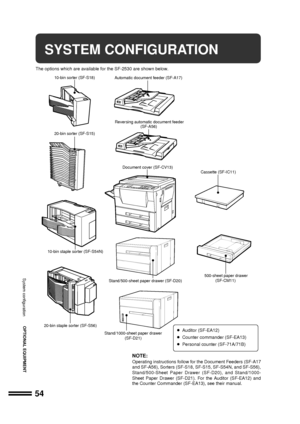

54
ADF (SF-A17)/RADF (SF-A56)
OPTIONAL EQUIPMENT
ADF (SF-A17)/RADF (SF-A56)
SYSTEM CONFIGURATION
The options which are available for the SF-2530 are shown below.
System configuration
lAuditor (SF-EA12)
lCounter commander (SF-EA13)
lPersonal counter (SF-71A/71B)
NOTE:
Operating instructions follow for the Document Feeders (SF-A17
and SF-A56), Sorters (SF-S18, SF-S15, SF-S54N, and SF-S56),
Stand/500-Sheet Paper Drawer (SF-D20), and Stand/1000-
Sheet Paper Drawer (SF-D21). For the Auditor (SF-EA12) and
the...

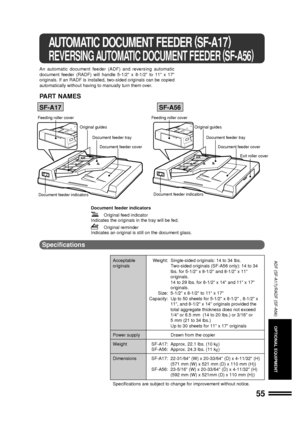

55
ADF (SF-A17)/RADF (SF-A56)
ADF (SF-A17)/RADF (SF-A56)
OPTIONAL EQUIPMENT
AUTOMATIC DOCUMENT FEEDER (
SF-A17)
REVERSING AUTOMATIC DOCUMENT FEEDER (
SF-A56)
An automatic document feeder (ADF) and reversing automatic
document feeder (RADF) will handle 5-1/2 x 8-1/2 to 11 x 17
originals. If an RADF is installed, two-sided originals can be copied
automatically without having to manually turn them over.
PART NAMES
SF-A17 SF-A56
Document feeder indicators
Original feed indicator
Indicates the originals in...

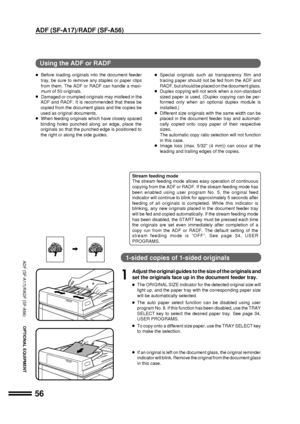

56
ADF (SF-A17)/RADF (SF-A56)
OPTIONAL EQUIPMENT
ADF (SF-A17)/RADF (SF-A56)
Stream feeding mode
The stream feeding mode allows easy operation of continuous
copying from the ADF or RADF. If the stream feeding mode has
been enabled using user program No. 5, the original feed
indicator will continue to blink for approximately 5 seconds after
feeding of all originals is completed. While this indicator is
blinking, any new originals placed in the document feeder tray
will be fed and copied automatically. If...

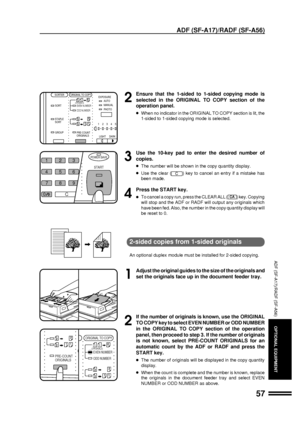

57
ADF (SF-A17)/RADF (SF-A56)
ADF (SF-A17)/RADF (SF-A56)
OPTIONAL EQUIPMENT
2
Ensure that the 1-sided to 1-sided copying mode is
selected in the ORIGINAL TO COPY section of the
operation panel.
lWhen no indicator in the ORIGINAL TO COPY section is lit, the
1-sided to 1-sided copying mode is selected.
3
Use the 10-key pad to enter the desired number of
copies.
lThe number will be shown in the copy quantity display.
lUse the clear (C) key to cancel an entry if a mistake has
been made.
4
Press the START...

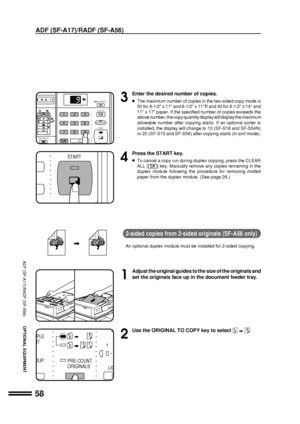

58
ADF (SF-A17)/RADF (SF-A56)
OPTIONAL EQUIPMENT
ADF (SF-A17)/RADF (SF-A56)
3
Enter the desired number of copies.
lThe maximum number of copies in the two-sided copy mode is
50 for 8-1/2 x 11 and 8-1/2 x 11R and 30 for 8-1/2 x 14 and
11 x 17 paper. If the specified number of copies exceeds the
above number, the copy quantity display will display the maximum
allowable number after copying starts. If an optional sorter is
installed, the display will change to 10 (SF-S18 and SF-S54N)
or 20 (SF-S15 and...
