Sharp SF 2530 User Manual

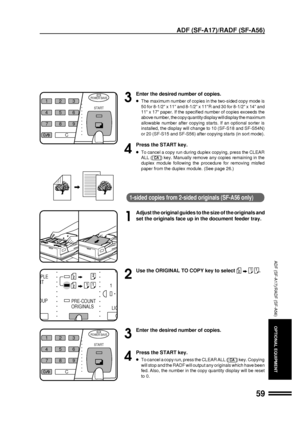

59
ADF (SF-A17)/RADF (SF-A56)
ADF (SF-A17)/RADF (SF-A56)
OPTIONAL EQUIPMENT
3
Enter the desired number of copies.
lThe maximum number of copies in the two-sided copy mode is
50 for 8-1/2 x 11 and 8-1/2 x 11R and 30 for 8-1/2 x 14 and
11 x 17 paper. If the specified number of copies exceeds the
above number, the copy quantity display will display the maximum
allowable number after copying starts. If an optional sorter is
installed, the display will change to 10 (SF-S18 and SF-S54N)
or 20 (SF-S15 and...

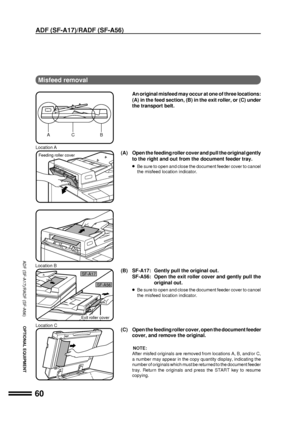

60
ADF (SF-A17)/RADF (SF-A56)
OPTIONAL EQUIPMENT
ADF (SF-A17)/RADF (SF-A56)
Misfeed removal
Location C Location BLocation A
An original misfeed may occur at one of three locations:
(A) in the feed section, (B) in the exit roller, or (C) under
the transport belt.
(A) Open the feeding roller cover and pull the original gently
to the right and out from the document feeder tray.
lBe sure to open and close the document feeder cover to cancel
the misfeed location indicator.
(B) SF-A17: Gently pull the original...

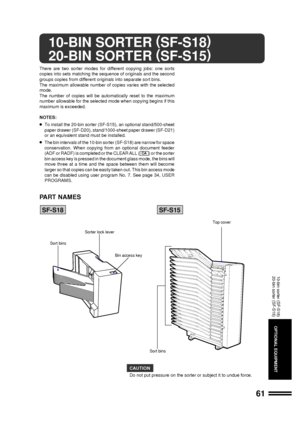

61
OPTIONAL EQUIPMENT
10-BIN SORTER (
SF-S18)
20-BIN SORTER (
SF-S15)
There are two sorter modes for different copying jobs: one sorts
copies into sets matching the sequence of originals and the second
groups copies from different originals into separate sort bins.
The maximum allowable number of copies varies with the selected
mode.
The number of copies will be automatically reset to the maximum
number allowable for the selected mode when copying begins if this
maximum is exceeded.
NOTES:
lTo install...

62
OPTIONAL EQUIPMENT
10-BIN SORTER (SF-S18)/ 20-BIN SORTER (SF-S15)
GROUP SORT
Using a sorter
10-bin sorter (SF-S18)
20-bin sorter (SF-S15)
Press the SORTER key to select the desired mode.
(The STAPLE SORT mode cannot be selected for either the
SF-S18 or SF-S15.)
To cancel the mode, press the SORTER key until the SORT and
GROUP indicators go out.
NON-SORT
When neither of the two available sorter modes, SORT or GROUP is
selected, the copier is in the NON-SORT mode. In this mode, all
copies will be...

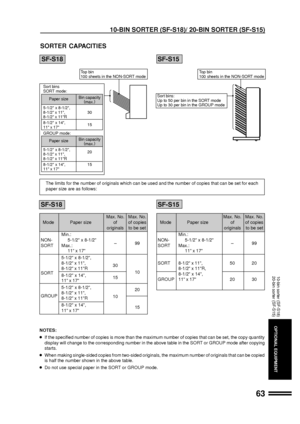

63
OPTIONAL EQUIPMENT
SORTER CAPACITIES
SF-S18 SF-S15
Top bin Top bin
100 sheets in the NON-SORT mode 100 sheets in the NON-SORT mode
Sort bins
SORT mode:
Paper sizeBin capacity
(
max.)
5-1/2 x 8-1/2,
8-1/2 x 11, 30
8-1/2 x 11R
8-1/2 x 14,
15
11 x 17
GROUP mode:
Paper sizeBin capacity
(
max.)
5-1/2 x 8-1/2,
8-1/2 x 11,20
8-1/2 x 11R
8-1/2 x 14, 15
11 x 17
The limits for the number of originals which can be used and the number of copies that can be set for each
paper size are as follows:
SF-S15
Max. No....

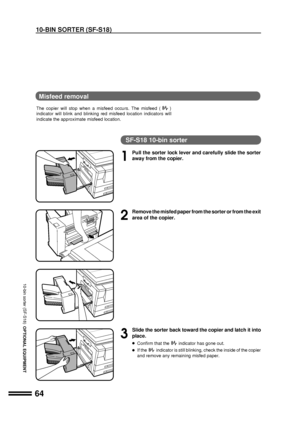

64
OPTIONAL EQUIPMENT
Misfeed removal
The copier will stop when a misfeed occurs. The misfeed ()
indicator will blink and blinking red misfeed location indicators will
indicate the approximate misfeed location.
SF-S18 10-bin sorter
1
Pull the sorter lock lever and carefully slide the sorter
away from the copier.
2
Remove the misfed paper from the sorter or from the exit
area of the copier.
3
Slide the sorter back toward the copier and latch it into
place.
lConfirm that theindicator has gone out.
lIf...

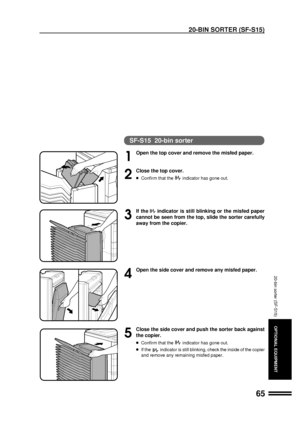

65
OPTIONAL EQUIPMENT
20-BIN SORTER (SF-S15)
20-bin sorter (SF-S15)
SF-S15  20-bin sorter
1
Open the top cover and remove the misfed paper.
2
Close the top cover.
lConfirm that theindicator has gone out.
3
If theindicator is still blinking or the misfed paper
cannot be seen from the top, slide the sorter carefully
away from the copier.
4
Open the side cover and remove any misfed paper.
5
Close the side cover and push the sorter back against
the copier.
lConfirm that theindicator has gone out.
lIf...

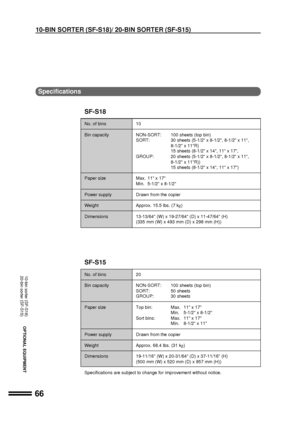

66
OPTIONAL EQUIPMENT
SF-S15
No. of bins 20
Bin capacity NON-SORT: 100 sheets (top bin)
SORT: 50 sheets
GROUP: 30 sheets
Paper size Top bin: Max. 11 x 17
Min. 5-1/2 x 8-1/2
Sort bins: Max. 11 x 17
Min. 8-1/2 x 11
Power supply Drawn from the copier
Weight Approx. 68.4 lbs. (31 kg)
Dimensions 19-11/16 (W) x 20-31/64 (D) x 37-11/16 (H)
(500 mm (W) x 520 mm (D) x 957 mm (H))
Specifications are subject to change for improvement without notice.
10-BIN SORTER (SF-S18)/ 20-BIN SORTER (SF-S15)
Specifications...

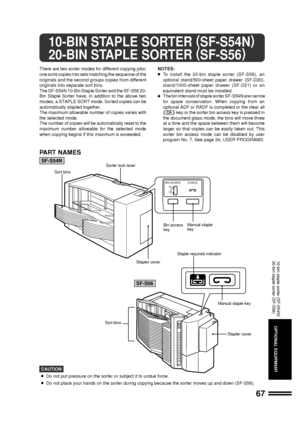

67
OPTIONAL EQUIPMENT
PART NAMES
SF-S54N
SF-S56
10-bin staple sorter (SF-S54N)
20-bin staple sorter (SF-S56)
10-BIN STAPLE SORTER (
SF-S54N)
20-BIN STAPLE SORTER (
SF-S56)
There are two sorter modes for different copying jobs:
one sorts copies into sets matching the sequence of the
originals and the second groups copies from different
originals into separate sort bins.
The SF-S54N 10-Bin Staple Sorter and the SF-S56 20-
Bin Staple Sorter have, in addition to the above two
modes, a STAPLE SORT mode....

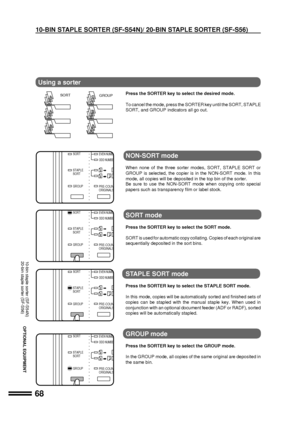

68
OPTIONAL EQUIPMENT
10-bin staple sorter (SF-S54N)
20-bin staple sorter (SF-S56)
10-BIN STAPLE SORTER (SF-S54N)/ 20-BIN STAPLE SORTER (SF-S56)
GROUP SORT
(ORIGINALS)EVEN NUMBE
ODD NUMBER
PRE-COUNT
ORIGINALS SORT
STAPLE
SORT
GROUP
(ORIGINALS)EVEN NUMBE
ODD NUMBER
PRE-COUNT
ORIGINALS SORT
STAPLE
SORT
GROUP
(ORIGINALS)EVEN NUMBE
ODD NUMBER
PRE-COUNT
ORIGINALS SORT
STAPLE
SORT
GROUP
(ORIGINALS)EVEN NUMBE
ODD NUMBER
PRE-COUNT
ORIGINALS SORT
STAPLE
SORT
GROUP
Using a sorter
Press the SORTER key to select...
