Smeg Sa561x9 Manual
Here you can view all the pages of manual Smeg Sa561x9 Manual. The Smeg manuals for Oven are available online for free. You can easily download all the documents as PDF.
Page 11

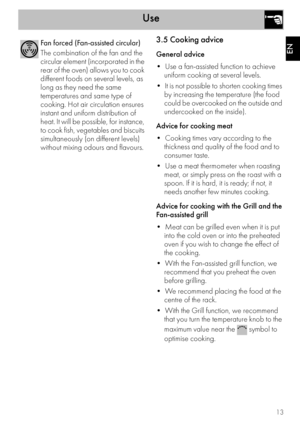

Use 13 EN 3.5 Cooking advice General advice uniform cooking at several levels. by increasing the temperature (the food could be overcooked on the outside and undercooked on the inside). Advice for cooking meat thickness and quality of the food and to consumer taste. meat, or simply press on the roast with a spoon. If it is hard, it is ready; if not, it needs another few minutes cooking. Advice for cooking with the Grill and the Fan-assisted grill into the cold oven or into the preheated oven...
Page 12

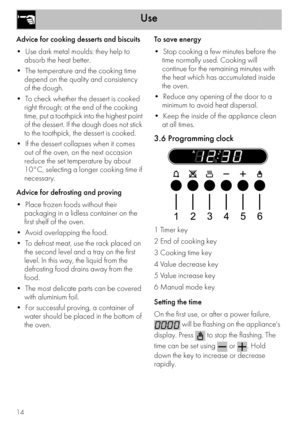

Use 14 Advice for cooking desserts and biscuits absorb the heat better. depend on the quality and consistency of the dough. right through: at the end of the cooking time, put a toothpick into the highest point of the dessert. If the dough does not stick to the toothpick, the dessert is cooked. out of the oven, on the next occasion reduce the set temperature by about 10°C, selecting a longer cooking time if necessary. Advice for defrosting and proving packaging in a lidless container on the...
Page 13

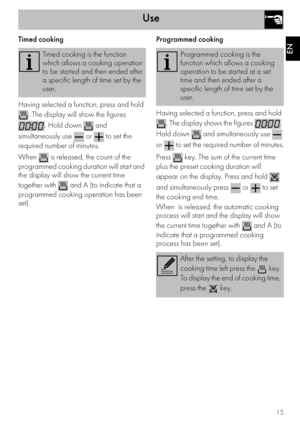

Use 15 EN Timed cooking Having selected a function, press and hold . The display will show the figures . Hold down and simultaneously use or to set the required number of minutes. When is released, the count of the programmed cooking duration will start and the display will show the current time together with and A (to indicate that a programmed cooking operation has been set).Programmed cooking Having selected a function, press and hold . The display shows the figures . Hold down...
Page 14

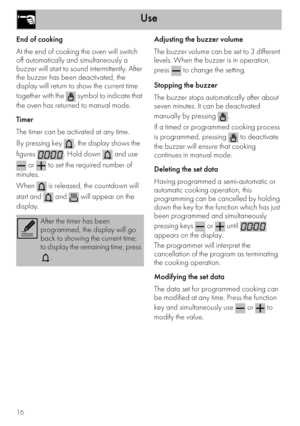

Use 16 End of cooking At the end of cooking the oven will switch off automatically and simultaneously a buzzer will start to sound intermittently. After the buzzer has been deactivated, the display will return to show the current time together with the symbol to indicate that the oven has returned to manual mode. Timer The timer can be activated at any time. By pressing key , the display shows the figures . Hold down and use or to set the required number of minutes. When is released,...
Page 15
Use 17 EN Cooking information table FoodWeight (Kg)Function Runner position from the bottomTemperature (°C)Time (minutes) Lasagne 3 - 4 Static 1 220 - 230 45 - 50 Pasta bake 3 - 4 Static 1 220 - 230 45 - 50 Roast veal 2 Turbo 2 180 - 190 90 - 100 Pork 2 Turbo 2 180 - 190 70 - 80 Sausages 1.5 Fan with grill 4 280 15 Roast beef 1 Turbo 2 200 40 - 45 Roast rabbit 1.5 Circulaire 2 180 - 190 70 - 80 Turkey breast 3 Turbo 2 180 - 190 110 - 120 Roast pork neck 2 - 3 Turbo 2 180 - 190 170 - 180 Roast chicken...
Page 16
Cleaning and maintenance 18 4 Cleaning and maintenance 4.1 Instructions 4.2 Cleaning the surfaces To keep the surfaces in good condition, they should be cleaned regularly after use. Let them cool first. 4.3 Ordinary daily cleaning Always use only specific products that do not contain abrasives or chlorine-based acids. Pour the product onto a damp cloth and wipe the surface, rinse thoroughly and dry with a soft cloth or a microfibre cloth. 4.4 Food stains or residues Do not use metallic sponges or...
Page 17
Cleaning and maintenance 19 EN 2. Grasp the door on both sides with both hands, lift it forming an angle of around 30° and remove it. 3. To reassemble the door, put the hinges in the relevant slots in the oven, making sure that grooved sections A are resting completely in the slots. Lower the door and once it is in place remove the pins from the holes in the hinges. 4.6 Cleaning the door glazing The glass in the door should always be kept thoroughly clean. Use absorbent kitchen roll. In case of...
Page 18

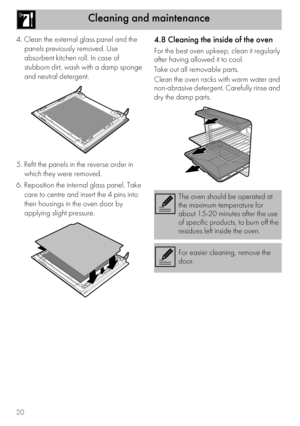

Cleaning and maintenance 20 4. Clean the external glass panel and the panels previously removed. Use absorbent kitchen roll. In case of stubborn dirt, wash with a damp sponge and neutral detergent. 5. Refit the panels in the reverse order in which they were removed. 6. Reposition the internal glass panel. Take care to centre and insert the 4 pins into their housings in the oven door by applying slight pressure.4.8 Cleaning the inside of the oven For the best oven upkeep, clean it regularly after...
Page 19
Cleaning and maintenance 21 EN Removing racks/trays support frames Removing the guide frames enables the sides to be cleaned more easily. This operation should be performed each time the automatic cleaning cycle is used (on some models only). To remove the guide frames: Pull the frame towards the inside of the oven to unhook it from its groove A, then slide it out of the seats B at the back. When cleaning is complete, repeat the above procedures to put the guide frames back in.4.9 Vapor Clean:...
Page 20

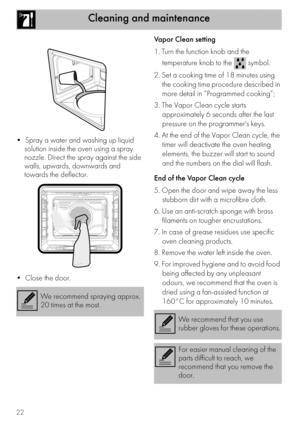

Cleaning and maintenance 22 solution inside the oven using a spray nozzle. Direct the spray against the side walls, upwards, downwards and towards the deflector. Vapor Clean setting 1. Turn the function knob and the temperature knob to the symbol. 2. Set a cooking time of 18 minutes using the cooking time procedure described in more detail in “Programmed cooking”; 3. The Vapor Clean cycle starts approximately 6 seconds after the last pressure on the programmers keys. 4. At the end of the Vapor...
