STIGA TURBO 55 COMBI 48 COMBI 43 COMBI 8211-0208-12
Page 2
SVENSKAS 2. 3. B4. 1. 6. F D E 5. B 7.
Page 3
SVENSKA S 3x 12. Briggs & Stratton LS 45 ADD FULL FULL ADD 8. 9. Briggs & Stratton LS 45 10. Briggs & Stratton XTE 13. Briggs & Stratton XTE 11. Honda 14. Honda15. FULL/MAX ADD/MIN I* B* G 3x 0,15 l. ADD FULL
Page 4
SVENSKAS YX17. 22. Briggs & Stratton XTE21. Briggs & Stratton LS 45 23. Honda24. 20. Right 16. 19. Left18.
Page 5
SVENSKA S S S 26. 29. Regular blade holder 28. 31 A. 48 cm / 55 cm 30. Friction blade holder 25. 27. 40 Nm S31 B. 43 cm T 40 Nm
Page 6
SVENSKAS 32. 33. Honda A-Choke
Page 7

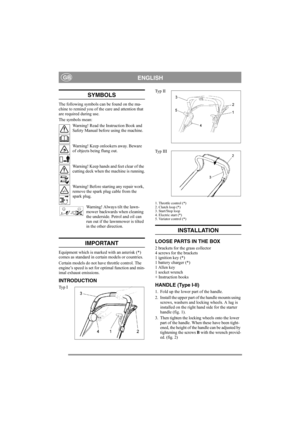

ENGLISHGB SYMBOLS The following symbols can be found on the ma- chine to remind you of the care and attention that are required during use. The symbols mean:Warning! Read the Instruction Book and Safety Manual before using the machine. Warning! Keep onlookers away. Beware of objects being flung out. Warning! Keep hands and feet clear of the cutting deck when the machine is running. Warning! Before starting any repair work, remove the spark plug cable from the spark plug. Warning! Always tilt the...
Page 8
ENGLISHGB HANDLE (Type III) 1. Unscrew the locking wheels from the chassis and secure the lower part of the handle onto screws B (fig. 3). 2. Secure the upper part of the handle with wash- ers and locking wheels. There is a lug on the right hand side for the starter handle (fig. 1). 3. Then tighten the locking wheels onto the lower part of the handle. When these have been tight- ened, the height of the handle can be adjusted by tightening the screws B with the wrench pro- vided. (fig. 3) ENGINE...
Page 9

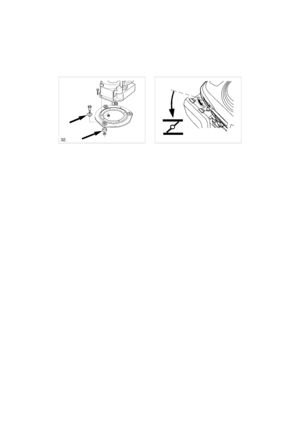

ENGLISHGB BEFORE STARTING FILL THE CRANKCASE WITH OILThe lawnmower is delivered without any oil in the engine crankcase. The crankcase must be filled with oil before the engine is started for the first time. Remove the oil dipsti c k ( f ig . 9 , 1 0 , 11 ) . F il l t h e e n - gine’s crankcase with 0.55 litres of good quality oil (service class SE, SF or SG). Use SAE 30 or SAE 10W-30 oil. Slowly fill to ‘FULL/ MAX’. Do not overfill. CHECK THE OIL LEVEL Check before using the machine that...
Page 10
ENGLISHGB STARTING (Honda) 1. Place the lawnmower on flat, firm ground. Do not start in long grass. 2. Make sure the spark plug cable is connected to the spark plug. 3. Open the fuel tap (fig. 14). 4. Set the throttle control B in the choke posi- tion . NOTE! It is not necessary to use the choke position when the engine is warm (fig. 15). 5. Press the Start/Stop loop G towards the handle. NOTE! The Start/Stop loop G must be kept pressed in to prevent the engine stopping (fig. 15). 6. Grasp the...
