Stiga Lawn Mower 8211 0324 03 Turbo 48S 55S Roller Owners Manual
Here you can view all the pages of manual Stiga Lawn Mower 8211 0324 03 Turbo 48S 55S Roller Owners Manual . The Stiga manuals for Lawn Mower are available online for free. You can easily download all the documents as PDF.
Page 1
STIGA TURBO 55 S ROLLER 48 S ROLLER 8211-0324-03
Page 2
SVENSKA S A B 3 1 2 12 34 56 78
Page 3
SVENSKAS YX I* B* G 0,15 l. ADD FULL 910 1112 1314 1516
Page 4
SVENSKA S 40 Nm T 1718 2019 21

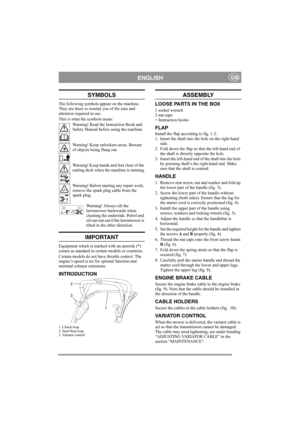

Page 5
ENGLISHGB SYMBOLS The following symbols appear on the machine. They are there to remind you of the care and attention required in use. This is what the symbols mean:Warning! Read the Instruction Book and Safety Manual before using the machine. Warning! Keep onlookers away. Beware of objects being flung out. Warning! Keep hands and feet clear of the cutting deck when the machine is running. Warning! Before starting any repair work, remove the spark plug cable from the spark plug. Warning! Always...

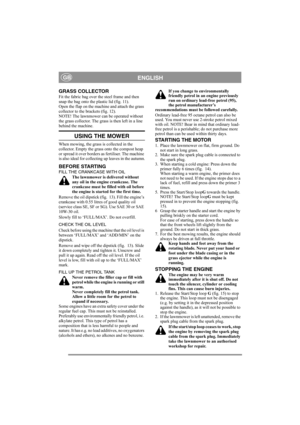

Page 6
ENGLISHGB GRASS COLLECTOR Fit the fabric bag over the steel frame and then snap the bag onto the plastic lid (fig. 11). Open the flap on the machine and attach the grass collector to the brackets (fig. 12). NOTE! The lawnmower can be operated without the grass collector. The grass is then left in a line behind the machine. USING THE MOWER When mowing, the grass is collected in the collector. Empty the grass onto the compost heap or spread it over borders as fertiliser. The machine is also ideal...

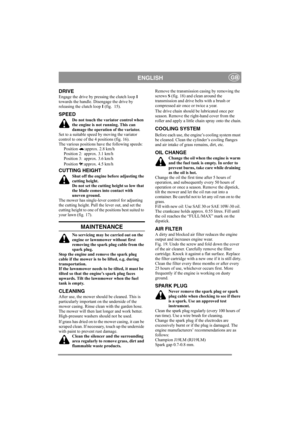

Page 7
ENGLISHGB DRIVE Engage the drive by pressing the clutch loop I towards the handle. Disengage the drive by releasing the clutch loop I (fig. 15). SPEED Do not touch the variator control when the engine is not running. This can damage the operation of the variator. Set to a suitable speed by moving the variator control to one of the 4 positions (fig. 16). The various positions have the following speeds: Position :approx. 2.8 km/h Position 2: approx. 3.1 km/h Position 3: approx. 3.6 km/h Position...

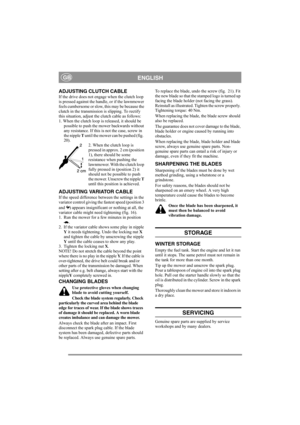

Page 8
ENGLISHGB ADJUSTING CLUTCH CABLE If the drive does not engage when the clutch loop is pressed against the handle, or if the lawnmower feels cumbersome or slow, this may be because the clutch in the transmission is slipping. To rectify this situation, adjust the clutch cable as follows: 1. When the clutch loop is released, it should be possible to push the mower backwards without any resistance. If this is not the case, screw in the nipple T until the mower can be pushed (fig. 20). 2. When...

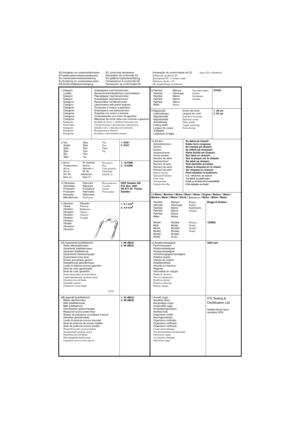

Page 9
6B.Uppmätt ljudeffektnivåMitattu äänitehotaso Målt lydeffektniveau Målt lydeffektnivå Gemessener geräuschpegel Measured sound power level Niveau de puissance acoustique mesuré Gemeten geluidsniveau Livello di potenza sonora misurato Nivel de potencia de sonido medido Nível de potência sonora medido Nieprzekraczalny poziom ha łasu Замеренный уровень шума Nam ěřená úrove ň hluku Mért hangteljesítményszint Izmerjena raven zvo čne jakosti 1. 94 dB(A) 2. 98 dB(A) STOP EG-försäkran om överensstämmelse...

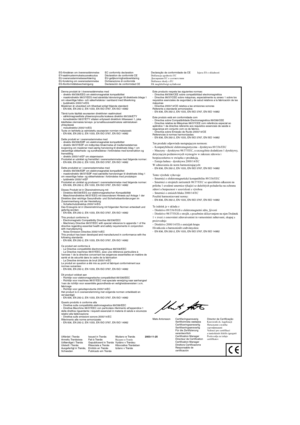

Page 10
EG-försäkran om överensstämmelse EY-vaatimustenmukaisuusvakuutus EU-overensstemmelseserklæring EU-forsikring om overensstemmelse EG-Konformitätsbescheinigung EC conformity declaration Déclaration de conformité CE EU-gelijkvormigheidsverklaring Dichiarazione di conformità Declaración de conformidad CEDeclaração de conformidade da CE Deklaracja zgodno ści EC Декларация EC о соответствии Deklarace shody s EU EK megfelel őségi nyilatkozat Izjava ES o skladnosti Denna produkt är i överensstämmelse med -...
