Stiga Lawn Mower PARK Compact, Compact HST, Compact 4WD Instruction Manual

STIGA PARK
COMPACT
COMPACT HST
COMPACT 4WD
8211-0553-01
BRUKSANVISNING
KÄYTTÖOHJEET
BRUGSANVISNING
BRUKSANVISNING
GEBRAUCHSANWEISUNG
INSTRUCTIONS FOR USE
MODE D’EMPLOI
GEBRUIKSAANWIJZINGSV .... 6
FI ... 14
DA ..22
NO .30
DE ...38
EN ...47
FR ....56
NL ...65

2
A B CDEF
I
J
K
HST
N
G
H
L
M
4WD
O P
1
3
52
4
6

3
Q
Max
R S T
Y
X
05_119
0
1
U
V
7
9
118
10
12

4
13
15
1714
16
18

5

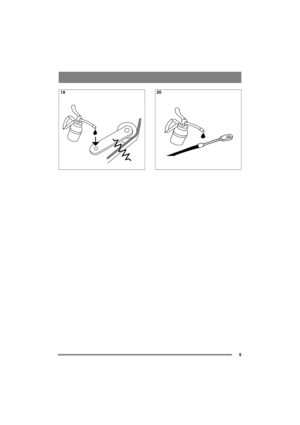

1920

47
ENGLISHEN
1 GENERAL
This symbol indicates WARNING. Seri-
ous personal injury and/or damage to
property may result if the instructions
are not followed carefully.
You must read these instructions for use
and the accompanying pamphlet
“SAFETY INSTRUCTIONS” careful-
ly, before starting up the machine.
1.1 SYMBOLSThe following symbols appear on the machine.
They are there to remind you of the care and atten-
tion required during use and maintenance.
This is what the symbols mean:
Warning!
Read the...

48
ENGLISHEN
The articulated steering means that the machine
can turn around trees and other obstacles with an
extremely small turning radius.
2.3 Safety systemThe machine is equipped with an electrical safety
system. The safety system interrupts certain activ-
ities that can entail a danger of incorrect manoeu-
vres. For example, the engine cannot be started if
the clutch-parking brake pedal is depressed.
The operation of the safety system must
always be checked every time before
use.
2.4...

49
ENGLISHEN
Ignition lock used for starting/stopping the engine.
Four positions:
1. Stop position – the engine is short-
circuited. The key can be removed.
2/3. Operating position.
4. Start position – the electric start motor
is activated when the key is turned to the
spring-loaded start position. Once the eng-
ine has started, let the key return to opera-
ting position 2/3.
2.4.8 Gear lever (2:H) (Man))
A lever for selecting one of the five forward gears
in the gearbox (1-2-3-4-5), neutral (N) or...

50
ENGLISHEN
4 STARTING AND OPERATION
The machine may not be operated un-
less the engine casing is closed and
locked. Risk of burns and crushing in-
juries.
4.1 Filling with petrol (7:Q)Always use lead-free petrol. You must never use 2-
stroke petrol mixed with oil.
The tank holds 6 litres. The level can easily be read
through the transparent tank.
NOTE! Ordinary lead-free petrol is a perishable
and must not be stored for more than 30 days.
Environmental petrol can be used, i.e. alkylate
petrol....

51
ENGLISHEN
4.5 Start1.  Open the fuel cock. See 10:U.
2.  Check that the spark plug cable(s) is/are in-
stalled on the spark plug(s).
3.  Check to make sure that the power take-off is
disengaged.
4a. Compact, Man: Put the gear lever in neutral.
4b. Compact HST, 4WD: Do not keep your foot
on the drive pedal.
5. Starting cold engine – put the throttle control in
the choke position.
Starting warm engine – put the throttle control
at full throttle (approx. 2 cm behind the choke
position).
6....
