ViewSonic Pjd6211 Projector User Manual

 EN-8
Rear View
Connection ports
AC power socket
Kensington lock
Rear IR remote control sensor
Ventilation holes (exhaust)
Security bar
Bottom View
Ceiling mount (M4*6)
Tilt-adjustment feet
13245
6
1223456
2
1
122
„This projector can be used with a ceiling mount for support. The ceiling mount is
not included in the package.
„Contact your dealer for information to mount the projector on a ceiling.

EN-9
Using the Product

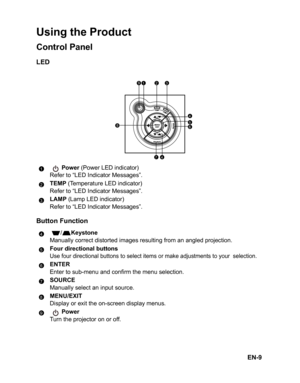

Control Panel
LED
Button Function
Power (Power LED indicator)
Refer to “LED Indicator Messages”.
TEMP (Temperature LED indicator)
Refer to “LED Indicator Messages”.
LAMP (Lamp LED indicator)
Refer to “LED Indicator Messages”.
 /Keystone
Manually correct distorted images resulting from an angled projection.
Four directional buttons
Use four directional buttons to select items or make adjustments to your  selection.
ENTER
Enter to sub-menu and confirm the menu selection.
SOURCE...

 EN-10

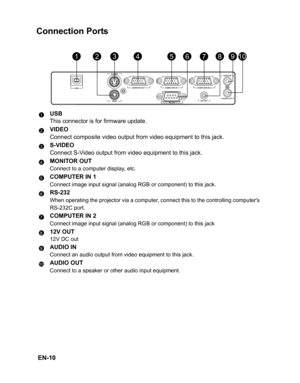

Connection Ports
USBThis connector is for firmware update.
VIDEO
Connect composite video output from video equipment to this jack.
S-VIDEO
Connect S-Video output from video equipment to this jack.
MONITOR OUT
Connect to a computer display, etc.
COMPUTER IN 1Connect image input signal (analog RGB or component) to this jack.
RS-232When operating the projector via a computer, connect this to the controlling computers
RS-232C port.
COMPUTER IN 2Connect image input signal (analog RGB or component) to...

EN-11

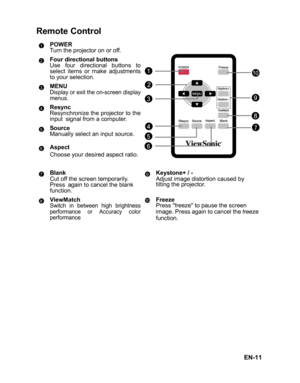

Remote Control
POWER
Turn the projector on or off.
Four directional buttons
Use four directional buttons to
select items or make adjustments
to your selection.
MENU
Display or exit the on-screen display
menus.
Resync
Resynchronize the projector to the
input signal from a computer.
Source
Manually select an input source.
Aspect
Choose your desired aspect ratio.
Blank
Cut off the screen temporarily.
Press again to cancel the blank
function.Keystone+ / -
Adjust image distortion caused by
tilting the...

 EN-12
Replacing the Battery
For the first time use:
Remove the transparent insulation tape by pulling
it before use.
For battery change:
1. Push the catch to the left and remove the battery
holder.
2. Remove the old Lithium coin cell and install new one
(CR2025). Ensure that the side with the mark “+” is up.
3. Push the battery holder back into the remote control
until you feel a click.
Caution
„ Risk of explosion if battery is replaced by an incorrect type.„ Dispose of used batteries according to the...

EN-13

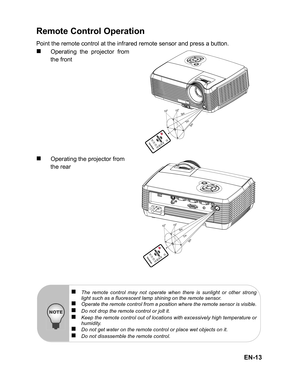

Remote Control Operation
Point the remote control at the infrared remote sensor and press a button.
„Operating the projector from
the front
„Operating the projector from
the rear
1015
7m
5m
5m
1015
7m5m
5m
„The remote control may not operate when there is sunlight or other strong
light such as a fluorescent lamp shining on the remote sensor.
„Operate the remote control from a position where the remote sensor is visible.„Do not drop the remote control or jolt it.„Keep the remote control out of...

 EN-14
Installation
Connecting the Projector
USB Cable VGA (D-Sub) to HDTV (RCA) Cable
VGA Cable (D-Sub to D-Sub) Composite Video Cable
RS-232 Cable S-Video Cable
Audio Cable15
26
37
4
22214
Desktop type Laptop type
3
55467
4
„When connecting cable, power cords of both projector and external equipment
should be disconnected from AC outlet.
„The figure above is a sample connection. This does not mean that all of these
devices can or must be connected simultaneously.
„The cables that come with the...

EN-15
Powering On/Off the Projector
Powering On the Projector:
1. Remove the projector lens cap.
2. Complete the AC power cord and peripheral signal cable(s) connections.
3. Press   button on the control panel or the
POWER button on the remote
control to turn on the projector.
The projector takes a minute or so to warm up.
4. Turn on your source (computer, notebook, DVD, etc.). The projector automatically
detects your source.
„If you are connecting multiple sources to the projector simultaneously,...

 EN-16

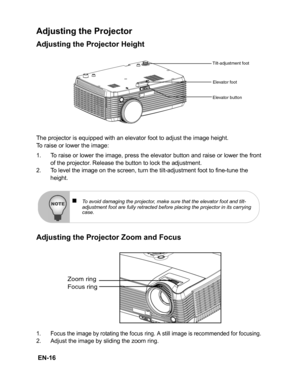

Adjusting the Projector
Adjusting the Projector Height
The projector is equipped with an elevator foot to adjust the image height.
To raise or lower the image:
1. To raise or lower the image, press the elevator button and raise or lower the front
of the projector. Release the button to lock the adjustment.
2. To level the image on the screen, turn the tilt-adjustment foot to fine-tune the
height.
Adjusting the Projector Zoom and Focus
1. Focus the image by rotating the focus ring. A still image...

EN-17
Adjusting Projection Image Size
Refer to the graphic and table below to determine the screen size and projection distance.
Screen size
Diagonal (inch)4 : 3 Screen
Wide Tele
Projection distance Projection distance
minchminch
40 1.57 61.76 1.73 67.93
50 1.96 77.20 2.16 84.92
60 2.35 92.64 2.59 101.90
70 2.75 108.07 3.02 118.88
80 3.14 123.51 3.45 135.86
90 3.53 138.95 3.88 152.85
100 3.92 154.39 4.31 169.83
120 4.71 185.27 5.18 203.80
150 5.88 231.59 6.47 254.75
200 7.84 308.78 8.63 339.66
250 9.80...
