AEG S 53600 Css0 User Manual

HISSS!
HISSS!
SSSRRR!SSSRRR!
CRACK!
CRACK!
NEDERLANDS21

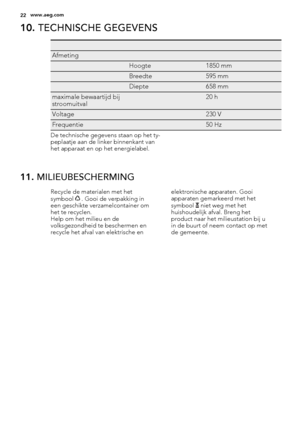

10. TECHNISCHE GEGEVENS

Afmeting
 Hoogte1850 mm
 Breedte595 mm
 Diepte658 mm
maximale bewaartijd bij
stroomuitval 20 h
Voltage 230 V
Frequentie 50 Hz
De technische gegevens staan op het ty-
peplaatje aan de linker binnenkant van
het apparaat en op het energielabel.
11. MILIEUBESCHERMING
Recycle de materialen met het
symbool  . Gooi de verpakking in
een geschikte verzamelcontainer om
het te recyclen.
Help om het milieu en de
volksgezondheid te beschermen en
recycle het afval van elektrische...

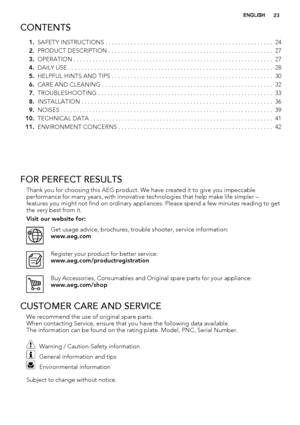

CONTENTS
1.SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  24
2.PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  27
3.OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  27
4.DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

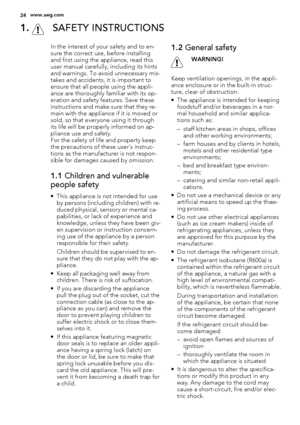

1.  SAFETY INSTRUCTIONS
In the interest of your safety and to en-
sure the correct use, before installing
and first using the appliance, read this
user manual carefully, including its hints
and warnings. To avoid unnecessary mis-
takes and accidents, it is important to
ensure that all people using the appli-
ance are thoroughly familiar with its op-
eration and safety features. Save these
instructions and make sure that they re-
main with the appliance if it is moved or
sold, so that everyone using it...

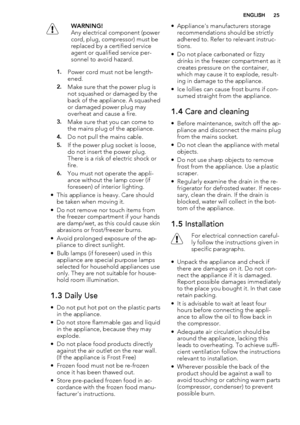

WARNING!
Any electrical component (power
cord, plug, compressor) must be
replaced by a certified service
agent or qualified service per-
sonnel to avoid hazard.
1.Power cord must not be length-
ened.
2.Make sure that the power plug is
not squashed or damaged by the
back of the appliance. A squashed
or damaged power plug may
overheat and cause a fire.
3.Make sure that you can come to
the mains plug of the appliance.
4.Do not pull the mains cable.
5.If the power plug socket is loose,
do not insert the...

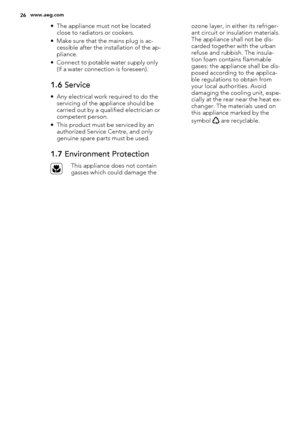

• The appliance must not be located
close to radiators or cookers.
• Make sure that the mains plug is ac-
cessible after the installation of the ap-
pliance.
• Connect to potable water supply only
(If a water connection is foreseen).
1.6 Service
• Any electrical work required to do the
servicing of the appliance should be
carried out by a qualified electrician or
competent person.
• This product must be serviced by an
authorized Service Centre, and only
genuine spare parts must be used.
1.7 Environment...

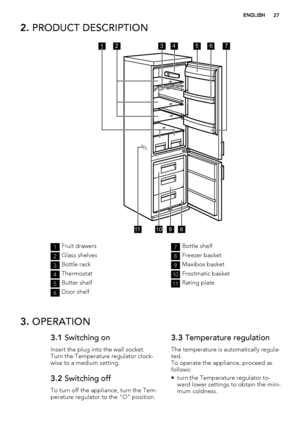

2. PRODUCT DESCRIPTION
356741
891011
2
1Fruit drawers
2Glass shelves
3Bottle rack
4Thermostat
5Butter shelf
6Door shelf
7Bottle shelf
8Freezer basket
9Maxibox basket
10Frostmatic basket
11Rating plate
3. OPERATION
3.1 Switching on
Insert the plug into the wall socket.
Turn the Temperature regulator clock-
wise to a medium setting.
3.2 Switching off
To turn off the appliance, turn the Tem-
perature regulator to the "O" position.
3.3 Temperature regulation
The temperature is automatically regula-...

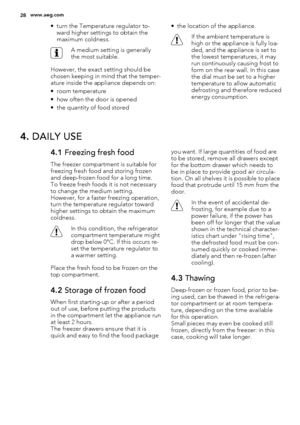

• turn the Temperature regulator to-
ward higher settings to obtain the
maximum coldness.
A medium setting is generally
the most suitable.
However, the exact setting should be
chosen keeping in mind that the temper-
ature inside the appliance depends on:
• room temperature
• how often the door is opened
• the quantity of food stored• the location of the appliance.
If the ambient temperature is
high or the appliance is fully loa-
ded, and the appliance is set to
the lowest temperatures, it may
run...

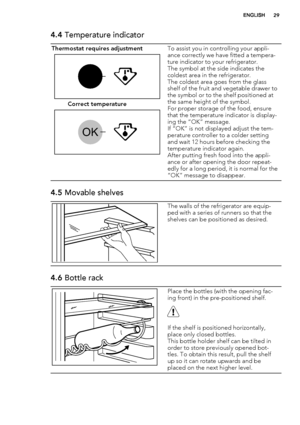

4.4 Temperature indicator
Thermostat requires adjustment
Correct temperature
OK
To assist you in controlling your appli-
ance correctly we have fitted a tempera-
ture indicator to your refrigerator.
The symbol at the side indicates the
coldest area in the refrigerator.
The coldest area goes from the glass
shelf of the fruit and vegetable drawer to
the symbol or to the shelf positioned at
the same height of the symbol.
For proper storage of the food, ensure
that the temperature indicator is display-
ing...

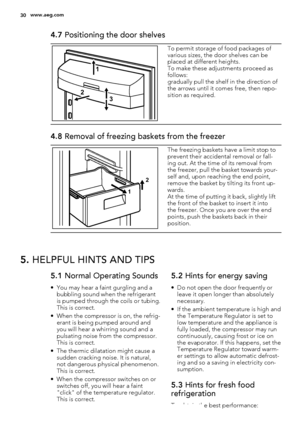

4.7 Positioning the door shelves
21
3
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
To make these adjustments proceed as
follows:
gradually pull the shelf in the direction of
the arrows until it comes free, then repo-
sition as required.
4.8 Removal of freezing baskets from the freezer
2
1
The freezing baskets have a limit stop to
prevent their accidental removal or fall-
ing out. At the time of its removal from
the freezer, pull the basket...
