AEG S 80362 Kg3 Operating Instructions

31

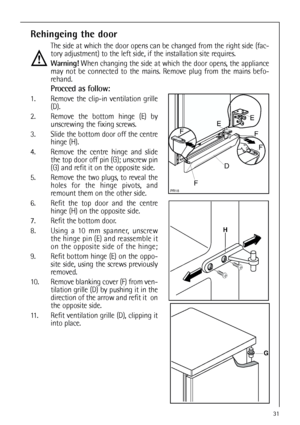

Rehingeing the door
The side at which the door opens can be changed from the right side (fac-
tory adjustment) to the left side, if the installation site requires.
Warning!When changing the side at which the door opens, the appliance
may not be connected to the mains. Remove plug from the mains befo-
rehand.
Procced as follow:
1. Remove the clip-in ventilation grille
(D).
2. Remove the bottom hinge (E) by
unscrewing the fixing screws.
3. Slide the bottom door off the centre
hinge...

32

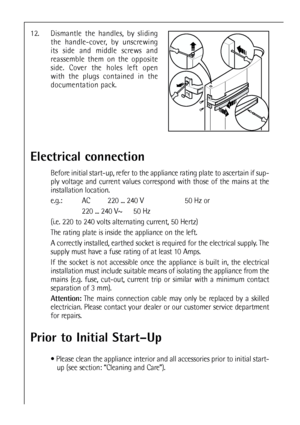

Electrical connection
Before initial start-up, refer to the appliance rating plate to ascertain if sup-
ply voltage and current values correspond with those of the mains at the
installation location.
e.g.:  AC 220 ... 240 V 50 Hz or
220 ... 240 V~ 50 Hz
(i.e. 220 to 240 volts alternating current, 50 Hertz)
The rating plate is inside the appliance on the left.
A correctly installed, earthed socket is required for the electrical supply. The
supply must have a fuse rating of at least 10 Amps.
If the...

3333

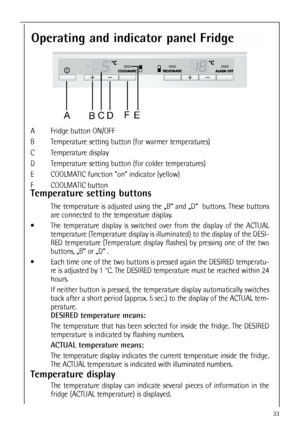

Operating and indicator panel Fridge
A Fridge button ON/OFF
B Temperature setting button (for warmer temperatures)
C Temperature display
D Temperature setting button (for colder temperatures)
E COOLMATIC function on indicator (yellow)
F COOLMATIC button
Temperature setting buttons
The temperature is adjusted using the „B“ and „D“  buttons. These buttons
are connected to the temperature display.
 The temperature display is switched over from the display of the ACTUAL
temperature (Temperature...

34
 During normal operation, the temperature currently present in the fridge
(ACTUAL temperature) is displayed.
 When the temperature is being adjusted a flashing display indicates the
fridge temperature currently set (DESIRED temperature).
Starting Up - Setting the Temperature
1. Plug the mains plug into the mains socket.
2. Press ON/OFF button. The appliances start.
3. Press either the „B“ or „D“ button. The temperature display switches over
and the DESIRED temperature currently set flashes on the...

35

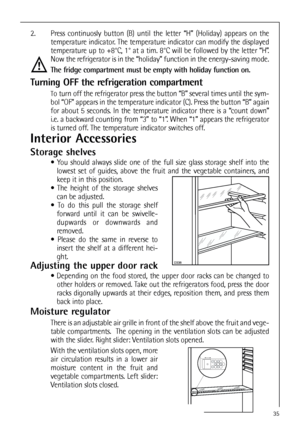

Interior Accessories
Storage shelves
 You should always slide one of the full size glass storage shelf into the
lowest set of guides, above the fruit and the vegetable containers, and
keep it in this position.
 The height of the storage shelves
can be adjusted.
 To do this pull the storage shelf
forward until it can be swivelle-
dupwards or downwards and
removed.
 Please do the same in reverse to
insert the shelf at a different hei-
ght.
Adjusting the upper door rack
 Depending on the food...

36

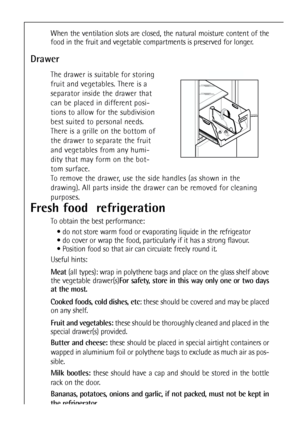

Fresh food  refrigeration
To obtain the best performance:
 do not store warm food or evaporating liquide in the refrigeator
 do cover or wrap the food, particularly if it has a strong flavour.
 Position food so that air can circuiate freely round it.
Useful hints:
Meat(all types): wrap in polythene bags and place on the glass shelf above
the vegetable drawer(s)For safety, store in this way only one or two days
at the most.
Cooked foods, cold dishes, etc: these should be covered and may be placed
on...

37

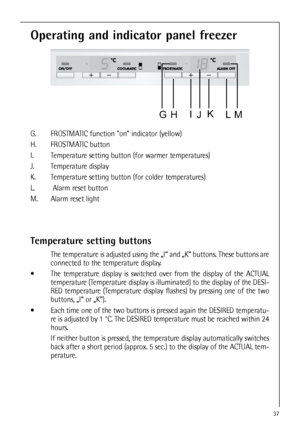

Operating and indicator panel freezer
G. FROSTMATIC function on indicator (yellow)
H. FROSTMATIC button
I. Temperature setting button (for warmer temperatures)
J. Temperature display
K. Temperature setting button (for colder temperatures)
L. Alarm reset button
M. Alarm reset light
Temperature setting buttons
The temperature is adjusted using the „I“ and „K“ buttons. These buttons are
connected to the temperature display.
 The temperature display is switched over from the display of the ACTUAL...

38

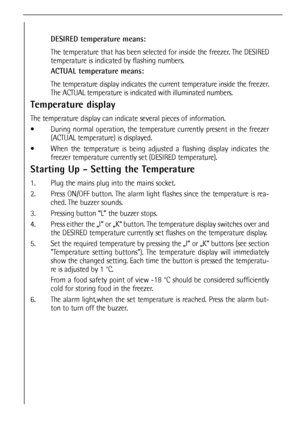

DESIRED temperature means:
The temperature that has been selected for inside the freezer. The DESIRED
temperature is indicated by flashing numbers.
ACTUAL temperature means:
The temperature display indicates the current temperature inside the freezer.
The ACTUAL temperature is indicated with illuminated numbers.
Temperature display
The temperature display can indicate several pieces of information.
 During normal operation, the temperature currently present in the freezer
(ACTUAL temperature) is...

39

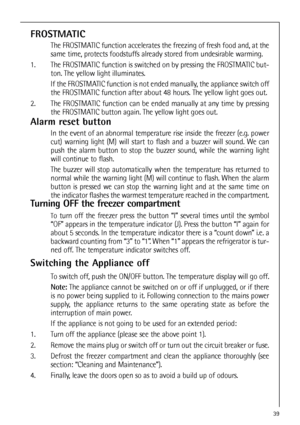

FROSTMATIC
The FROSTMATIC function accelerates the freezing of fresh food and, at the
same time, protects foodstuffs already stored from undesirable warming.
1. The FROSTMATIC function is switched on by pressing the FROSTMATIC but-
ton. The yellow light illuminates.
If the FROSTMATIC function is not ended manually, the appliance switch off
the FROSTMATIC function after about 48 hours. The yellow light goes out.
2. The FROSTMATIC function can be ended manually at any time by pressing
the FROSTMATIC...

40

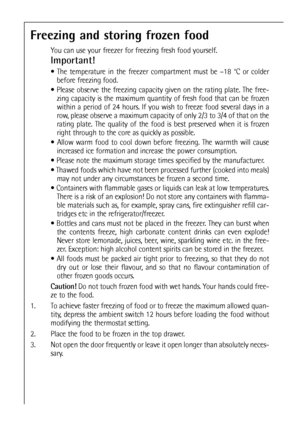

Freezing and storing frozen food
You can use your freezer for freezing fresh food yourself.
Important!
 The temperature in the freezer compartment must be –18 °C or colder
before freezing food.
 Please observe the freezing capacity given on the rating plate. The free-
zing capacity is the maximum quantity of fresh food that can be frozen
within a period of 24 hours. If you wish to freeze food several days in a
row, please observe a maximum capacity of only 2/3 to 3/4 of that on the
rating plate. The...
