ATT DEFINITY Communications System Generic 3 Instructions Manual

Report Scheduler and System Printer
Issue  3   March 1996
3-1037

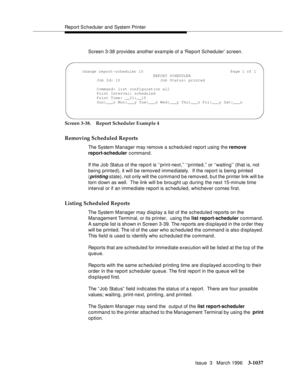

Screen 3-38 provides another example of a ‘Report Scheduler’ screen.
Screen 3-38. Report Scheduler Example 4
Removing Scheduled Reports
The System Manager may remove a scheduled report using the remove
report-scheduler command.
If the Job Status of the report is ‘‘print-next,’’ ‘‘printed,’’ or ‘‘waiting’’ (that is, not
being printed), it will be removed immediately.  If the report is being  printed
(
printing state), not only will the...

Feature Descriptions
3-1038Issue  3   March 1996
Establishing the Printer Link
The system will attempt to bring up the link to the Re port Scheduler printer at the
b e ginning of each 15-minute time interval, provided there are reports to be
printed, or when an immediate report is to b e printed.  After all reports for which
the link was brought up have been printed, the system will tear down the link to
preserve system resources.
Screen 3-39 provides another example of a ‘Report Scheduler’ screen....

Report Scheduler and System Printer
Issue  3   March 1996
3-1039

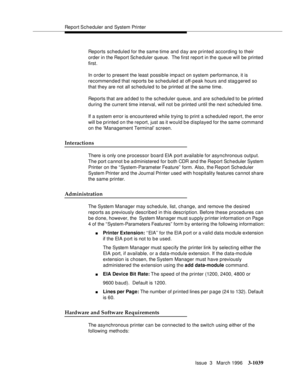

Reports scheduled for the same time and day are printed according to their
order in the Report Scheduler queue.  The first report in the queue will be printed
first.
In order to present the least possible imp act on system performance, it is
recommended that reports be scheduled at off-peak hours and stag gered so
that they are not all sc heduled to be printed at the same time.
Reports that are ad ded to the scheduler queue, and are...

Feature Descriptions
3-1040Issue  3   March 1996

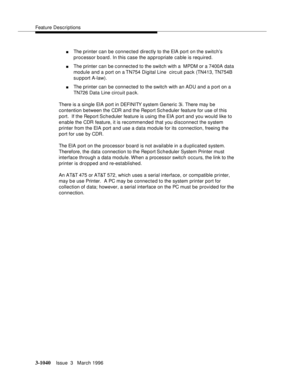

nThe printer can be connected directly to the EIA port on the switch’s
processor board . In this case the a ppropriate cable is required.
nThe printer can be c onnected to the switch with a  MPDM or a 7400A data
module and a port on a TN754 Digital Line  circ uit pack (TN413, TN754B
support A-law).
nThe printer can be connected to the switch with an ADU and a p ort on a
TN726 Data Line circuit pack.
There is a single EIA port in DEFI NI TY s yst em...

Restriction — Controlle d
Issue  3   March 1996
3-1041

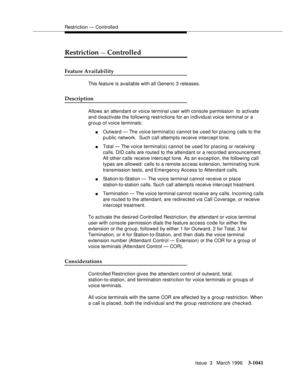

Restriction — Controlled
Feature Availability
This feature is available with all Generic 3 releases.
Description
Allows an attendant or voice terminal user with console p ermission  to activate
and d eactivate the following restrictions for an individual voice terminal or a
group of voice terminals:
nOutward — The voice terminal(s) cannot be used for placing calls to the
public network.  Such call attempts receive intercept tone.
nTotal — The...

Feature Descriptions
3-1042Issue  3   March 1996

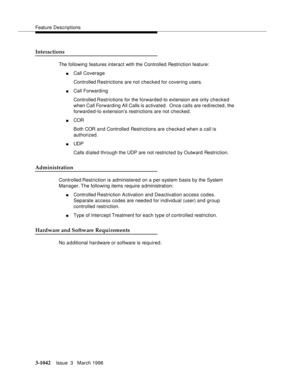

Interactions
The following features interact with the Controlled Restriction feature:
nCall Coverage
Controlled Restrictions are not checked for covering users.
nCall Forwarding
Controlled Restrictions for the forwarded-to extension are only checked
when Call Forwarding All Calls is activated.  Once calls are redirected, the
forwarded-to extension’s restrictions are not checked.
nCOR
Both COR and Controlled Restrictions are checked when a call is...

Restriction — Fully Restricted Service
Issue  3   March 1996
3-1043

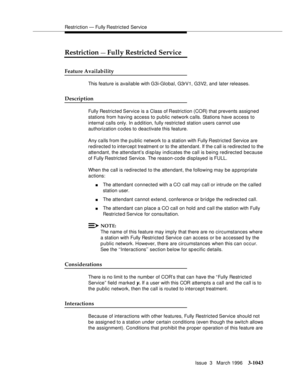

Restriction — Fully Restricted Service
Feature Availability
This feature is available with G3i-Global, G3rV1, G3V2, and  later releases.
Description
Fully Restricted Service is a Class of Restriction (COR) that prevents assigned
stations from having access to public network calls. Stations have access to
internal calls only. In addition, fully restricted station users cannot use
authorization codes to deactivate this feature.
Any...

Feature Descriptions
3-1044Issue  3   March 1996

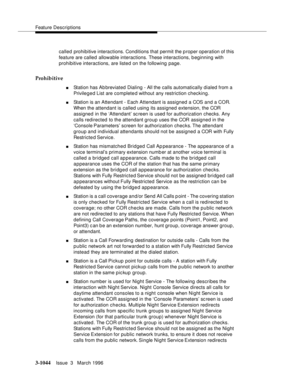

called prohibitive interactions. Conditions that permit the proper operation of this
feature are called allowable interactions. These interactions, b eginning with
prohibitive interactions, are listed on the following page.
Prohibitive
nStation has Abbreviated Dialing - All the calls automatically dialed from a
Privileged List are completed without any restriction checking.
nStation is an Attendant - Each Attendant is assigned a COS and a COR.
When...

Restriction — Fully Restricted Service
Issue  3   March 1996
3-1045

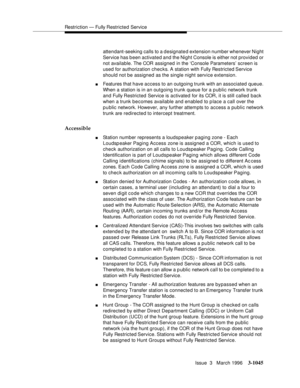

attendant-seeking calls to a designated extension number whenever Night
Service has b een activated and the Night Console is either not provided or
not available. The COR assigned in the ‘Console Parameters’ screen is
used for authorization checks. A station with Fully Restricted Service
should not be assigned as the single night service extension.
nFeatures that have access to an outgoing trunk with an associated queue.
When a...

Feature Descriptions
3-1046Issue  3   March 1996

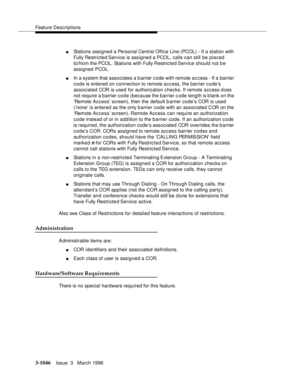

nStations assigned a Personal Central Office Line (PCOL) - If a station with
Fully Restricted Service is assigned a PCOL, calls can still be placed
to/from the PCOL. Stations with Fully Restricted Service should not be
assigned PCOL.
nIn a system that associates a b arrier c ode with remote access - If a barrier
code is entered on connection to remote access, the barrier code’s
associated COR is used for authorization checks. If remote  access does...
