BenQ V2410b User Manual

Welcome
LCD Monitor
User Manual
V2410B


Copyright
Copyright © 2010 by BenQ Corporation. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language
or computer language, in any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise, without the prior written permission of BenQ Corporation.
Disclaimer
BenQ Corporation makes no representations or warranties, either expressed or implied, with
respect to the...

Table of Contents
Copyright .......................................................................................................................... 2
Disclaimer ......................................................................................................................... 2
Getting started  .................................................................................................................. 4
Getting to know your monitor...

4  Getting started
1. Getting started
When unpacking please check you have the following items. If any are missing or damaged, please
contact the place of purchase for a replacement.

Consider keeping the box and packaging in storage for use in the future when you may need to transport
the monitor. The fitted foam packing is ideal for protecting the monitor during transport.
BenQ LCD Monitor
Monitor Base
Power Cord
(Picture may differ from product supplied
for your region.)
Video Cable: D-Sub...

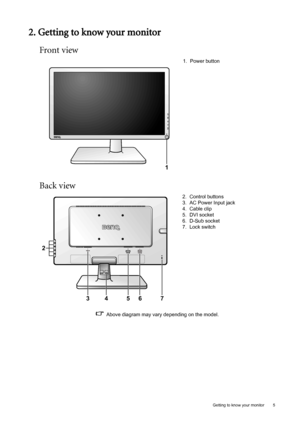

  5   Getting to know your monitor
2. Getting to know your monitor
Front view
Back view
 Above diagram may vary depending on the model.1. Power button
2. Control buttons
3. AC Power Input jack
4. Cable clip
5. DVI socket
6. D-Sub socket
7. Lock switch
1
35674 2

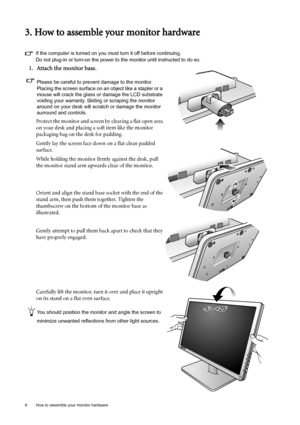

6  How to assemble your monitor hardware
3. How to assemble your monitor hardware
If the computer is turned on you must turn it off before continuing.
Do not plug-in or turn-on the power to the monitor until instructed to do so.
1. Attach the monitor base.
Please be careful to prevent damage to the monitor.
Placing the screen surface on an object like a stapler or a
mouse will crack the glass or damage the LCD substrate
voiding your warranty. Sliding or scraping the monitor
around on your desk...

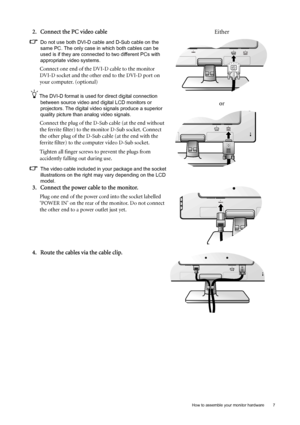

  7   How to assemble your monitor hardware
2. Connect the PC video cable
Do not use both DVI-D cable and D-Sub cable on the
same PC. The only case in which both cables can be
used is if they are connected to two different PCs with
appropriate video systems.
Connect one end of the DVI-D cable to the monitor
DVI-D socket and the other end to the DVI-D port on
your computer. (optional)
The DVI-D format is used for direct digital connection
between source video and digital LCD monitors or...

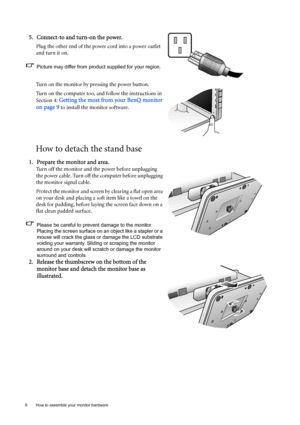

8  How to assemble your monitor hardware
How to detach the stand base
5. Connect-to and turn-on the power.
Plug the other end of the power cord into a power outlet
and turn it on.
Picture may differ from product supplied for your region.
Turn on the monitor by pressing the power button.
Turn on the computer too, and follow the instructions in
Section 4:
Getting the most from your BenQ monitor
on page 9
 to install the monitor software.
1. Prepare the monitor and area.
Turn off the monitor and the...

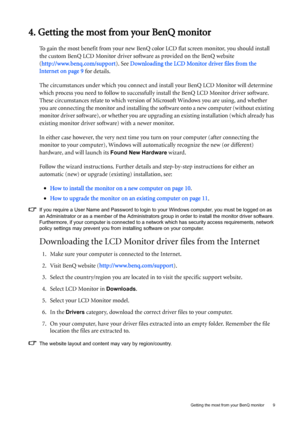

  9   Getting the most from your BenQ monitor
4. Getting the most from your BenQ monitor
To gain the most benefit from your new BenQ color LCD flat screen monitor, you should install
the custom BenQ LCD Monitor driver software as provided on the BenQ website
(http://www.benq.com/support). See Downloading the LCD Monitor driver files from the
Internet on page 9 for details.
The circumstances under which you connect and install your BenQ LCD Monitor will determine
which process you need to follow to...

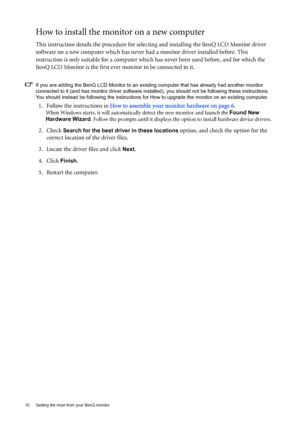

10  Getting the most from your BenQ monitor
How to install the monitor on a new computer
This instruction details the procedure for selecting and installing the BenQ LCD Monitor driver
software on a new computer which has never had a monitor driver installed before. This
instruction is only suitable for a computer which has never been used before, and for which the
BenQ LCD Monitor is the first ever monitor to be connected to it.
If you are adding the BenQ LCD Monitor to an existing computer that...
