BenQ V2410b User Manual

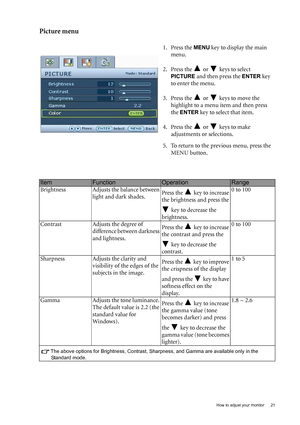

  21   How to adjust your monitor
Picture menu
1. Press the MENU key to display the main
menu.
2. Press the   or   keys to select
PICTURE and then press the ENTER key
to enter the menu.
3. Press the   or   keys to move the
highlight to a menu item and then press
the
ENTER key to select that item.
4. Press the   or   keys to make
adjustments or selections.
5. To return to the previous menu, press the
MENU button.
ItemFunctionOperationRange
Brightness Adjusts the balance between
light and dark...

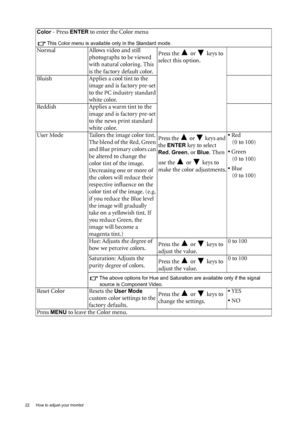

22  How to adjust your monitor
Color - Press ENTER to enter the Color menu
This Color menu is available only in the Standard mode.
Normal Allows video and still
photographs to be viewed
with natural coloring. This
is the factory default color. Press the   or   keys to
select this option.
Bluish Applies a cool tint to the
image and is factory pre-set
to the PC industry standard
white color.
Reddish Applies a warm tint to the
image and is factory pre-set
to the news print standard
white color....

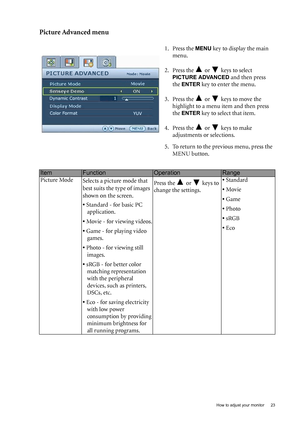

  23   How to adjust your monitor
Picture Advanced menu
1. Press the MENU key to display the main
menu.
2. Press the   or   keys to select
PICTURE ADVANCED and then press
the
ENTER key to enter the menu.
3. Press the   or   keys to move the
highlight to a menu item and then press
the
ENTER key to select that item.
4. Press the   or   keys to make
adjustments or selections.
5. To return to the previous menu, press the
MENU button.
ItemFunctionOperationRange
Picture Mode
Selects a picture mode...

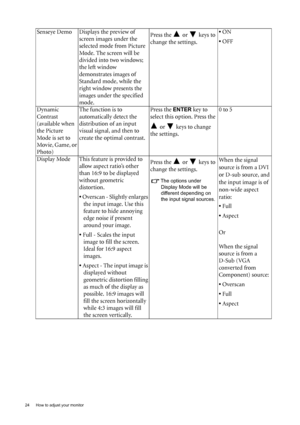

24  How to adjust your monitor
Senseye Demo Displays the preview of
screen images under the
selected mode from Picture
Mode. The screen will be
divided into two windows;
the left window
demonstrates images of
Standard mode, while the
right window presents the
images under the specified
mode.Press the   or   keys to
change the settings.• ON
• OFF
Dynamic
Contrast
(available when
the Picture
Mode is set to
Movie, Game, or
Photo)The function is to
automatically detect the
distribution of...

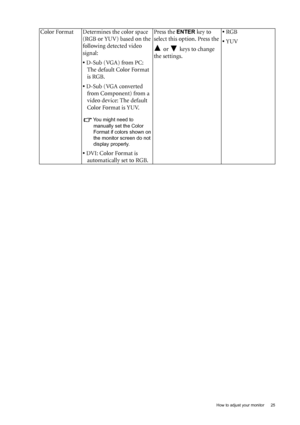

  25   How to adjust your monitor
Color Format Determines the color space
(RGB or YUV) based on the
following detected video
signal:
• D-Sub (VGA) from PC:
The default Color Format
is RGB.
• D-Sub (VGA converted
from Component) from a
video device: The default
Color Format is YUV.
You might need to
manually set the Color
Format if colors shown on
the monitor screen do not
display properly.
• DVI: Color Format is
automatically set to RGB.Press the
ENTER key to
select this option. Press the...

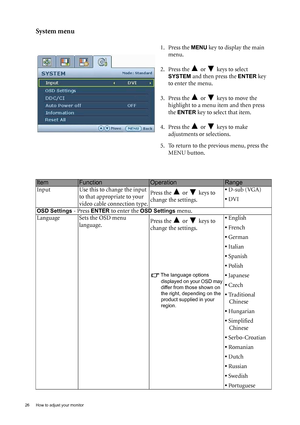

26  How to adjust your monitor
System menu
1. Press the MENU key to display the main
menu.
2. Press the   or   keys to select
SYSTEM and then press the ENTER key
to enter the menu.
3. Press the   or   keys to move the
highlight to a menu item and then press
the
ENTER key to select that item.
4. Press the   or   keys to make
adjustments or selections.
5. To return to the previous menu, press the
MENU button.
ItemFunctionOperationRange
Input Use this to change the input
to that appropriate to...

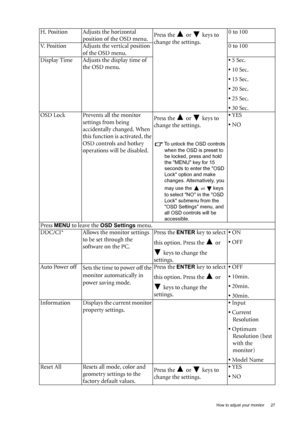

  27   How to adjust your monitor
H. Position Adjusts the horizontal
position of the OSD menu. Press the   or   keys to
change the settings. 0 to 100
V. Position Adjusts the vertical position
of the OSD menu.0 to 100
Display Time Adjusts the display time of
the OSD menu.• 5 Sec.
• 10 Sec.
• 15 Sec.
• 20 Sec.
• 25 Sec.
• 30 Sec.
OSD Lock Prevents all the monitor
settings from being
accidentally changed. When
this function is activated, the
OSD controls and hotkey
operations will be disabled.Press...

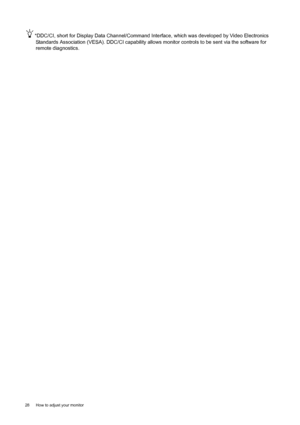

28  How to adjust your monitor
*DDC/CI, short for Display Data Channel/Command Interface, which was developed by Video Electronics
Standards Association (VESA). DDC/CI capability allows monitor controls to be sent via the software for
remote diagnostics.

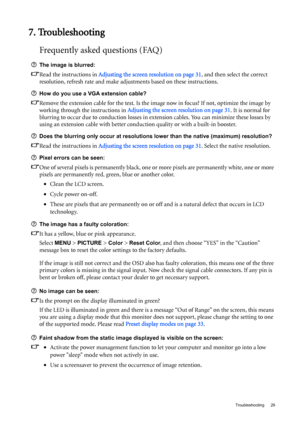

  29   Troubleshooting
7. Troubleshooting
Frequently asked questions (FAQ)
The image is blurred:
Read the instructions in Adjusting the screen resolution on page 31, and then select the correct
resolution, refresh rate and make adjustments based on these instructions.
How do you use a VGA extension cable?
Remove the extension cable for the test. Is the image now in focus? If not, optimize the image by
working through the instructions in Adjusting the screen resolution on page 31. It is normal for...

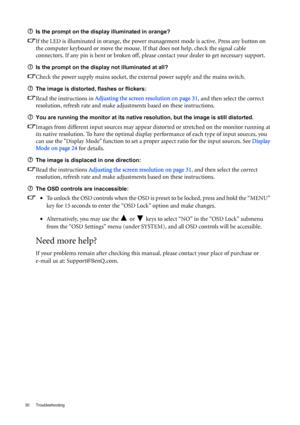

30 Troubleshooting
Is the prompt on the display illuminated in orange?
If the LED is illuminated in orange, the power management mode is active. Press any button on
the computer keyboard or move the mouse. If that does not help, check the signal cable
connectors. If any pin is bent or broken off, please contact your dealer to get necessary support.
Is the prompt on the display not illuminated at all?
Check the power supply mains socket, the external power supply and the mains switch.
The image is...
