Dukane Projector 8120WIA User Manual

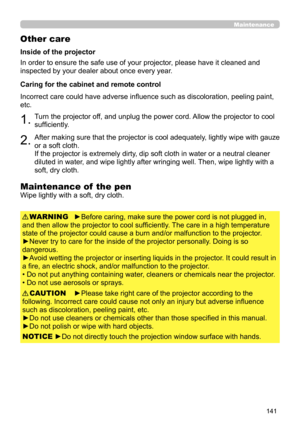

141
Maintenance
Other care
In order to ensure the safe use of your projector, please have it cleaned and
inspected by your dealer about once every year.
►Before caring, make sure the power cord is not plugged in,
and then allow the projector to cool sufficiently. The care in a high temperature
state of the projector could cause a burn and/or malfunction to the projector .
►Never try to care for the inside of the projector personally. Doing is so
dangerous.
►Avoid wetting the projector or inserting...

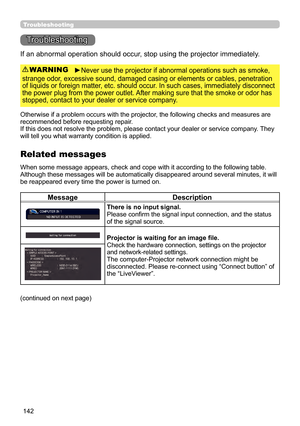

142
Troubleshooting
Troubleshooting
If an abnormal operation should occur, stop using the projector immediately.
Otherwise if a problem occurs with the projector, the following checks and measures are
recommended before requesting repair.
If this does not resolve the problem, please contact your dealer or service company. They
will tell you what warranty condition is applied.
►Never use the projector if abnormal operations such as smoke,
strange odor, excessive sound, damaged casing or elements or...

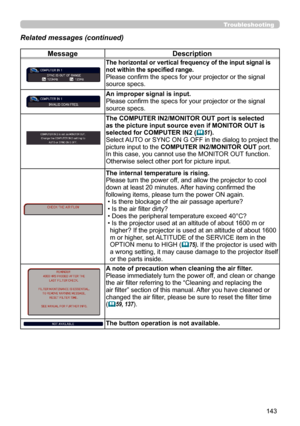

143
MessageDescription
The horizontal or vertical frequency of the input signal is
not within the specified range.
Please confirm the specs for your projector or the signal
source specs.
An improper signal is input.
Please confirm the specs for your projector or the signal
source specs.
The COMPUTER IN2/MONITOR OUT port is selected

as the picture input source even if MONITOR OUT is
selected for COMPUTER IN2 (
 51).
Select AUTO or SYNC ON G OFF in the dialog to project  the
picture input to the...

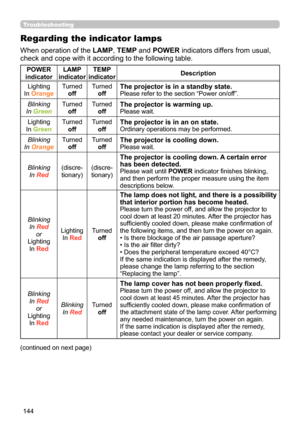

144
Troubleshooting
Regarding the indicator lamps
When operation of the LAMP, TEMP and POWER indicators differs from usual,
check and cope with it according to the following table.
POWER
indicator LAMP
indicator TEMP
indicator Description
Lighting
In Orange Turned
off Turned
off
The projector is in a standby state.Please refer to the section “Power on/off”.
Blinking
In Green Turned
off Turned
off
The projector is warming up.Please wait.
Lighting
In Green Turned
off Turned
off
The projector is in an...

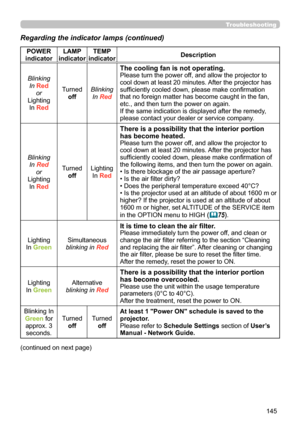

145
Troubleshooting
Regarding the indicator lamps (continued)
POWER
indicator LAMP
indicator TEMP
indicator Description
Blinking In Red or
Lighting In Red Turned
off Blinking
In Red
The cooling fan is not operating.Please turn the power off, and allow the projector to
cool down at least 20 minutes. After the projector has
sufficiently cooled down, please make confirmation
that no foreign matter has become caught in the fan,
etc., and then turn the power on again.
If the same indication is...

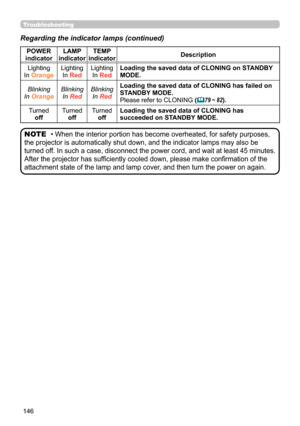

146
• When the interior portion has become overheated, for safety purposes,
the projector is automatically shut down, and the indicator lamps may also be
turned off. In such a case, disconnect the power cord, and wait at least 45 minutes.
After the projector has sufficiently cooled down, please make confirmation of the
attachment state of the lamp and lamp cover, and then turn the power on again.NOTE
POWER
indicator LAMP
indicator TEMP
indicator Description
Lighting
In Orange Lighting
In Red...

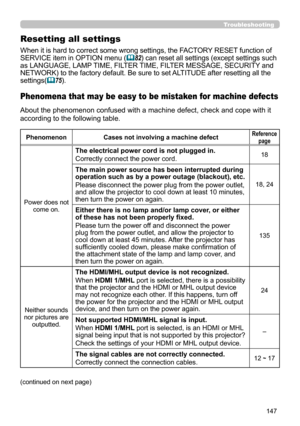

147
Troubleshooting
Phenomena that may be easy to be mistaken for machine defects
About the phenomenon confused with a machine defect, check and cope with it
according to the following table.
PhenomenonCases not involving a machine defectReference
page
Power does not  come on.
The electrical power cord is not plugged in.
Correctly connect the power cord.18
The main power source has been interrupted during
operation such as by a power outage (blackout), etc.
Please disconnect the power plug from the...

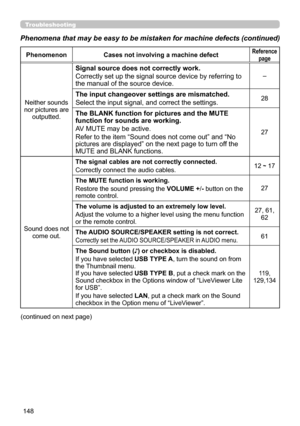

148
Troubleshooting
Phenomena that may be easy to be mistaken for machine defects (continue\
d)
PhenomenonCases not involving a machine defectReference
page
Neither sounds
nor pictures are outputted.
Signal source does not correctly work.
Correctly set up the signal source device by referring to
the manual of the source device.
–
The input changeover settings are mismatched.
Select the input signal, and correct the settings.28
The BLANK function for pictures and the MUTE
function for sounds are...

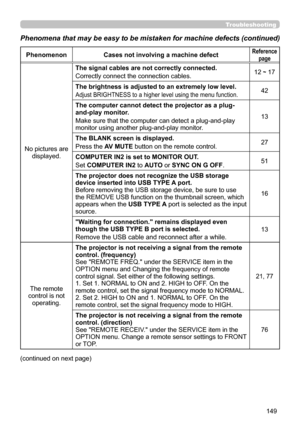

149
Troubleshooting
Phenomena that may be easy to be mistaken for machine defects (continue\
d)
PhenomenonCases not involving a machine defectReference
page
No pictures aredisplayed. The signal cables are not correctly connected.
Correctly connect the connection cables.
12 ~ 17
The brightness is adjusted to an extremely low level.
Adjust BRIGHTNESS to a higher level using the menu function.42
The computer cannot detect the projector as a plug-
and-play monitor.
Make sure that the computer can detect a...

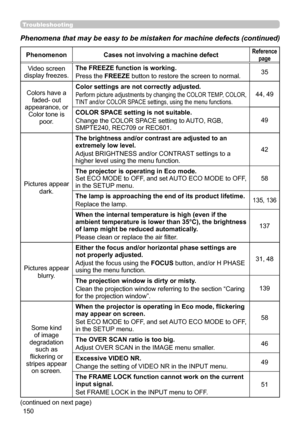

150
Troubleshooting
PhenomenonCases not involving a machine defectReference
page
Video screen
display freezes. The FREEZE function is working.
Press the FREEZE button to restore the screen to normal.
35
Colors have a faded- out
appearance, or Color tone is  poor. Color settings are not correctly adjusted.
Perform picture adjustments by changing the COLOR TEMP, COLOR,
TINT and/or COLOR SPACE settings, using the menu functions.44, 49
COLOR SPACE setting is not suitable.
Change the COLOR SPACE setting to...
